Modular Heavy-Duty Steel Workbench: Custom Fabrication with a Replaceable Solid-Core Top
With two large butcher-block rolling tool chests already in the garage, I had a gap that begged for a dedicated workbench. Between automation equipment, mechanical parts, tools and hardware, my existing surfaces were constantly overwhelmed, making extra space a necessity. I finally dug into a project I'd planned for a few years: using a heavy-duty door I'd picked up on Craigslist as the top. I set out to build a modular workbench with a lower shelf and replaceable top, custom-tailored to match the exact height, depth, and look of the adjacent tool chests.
|

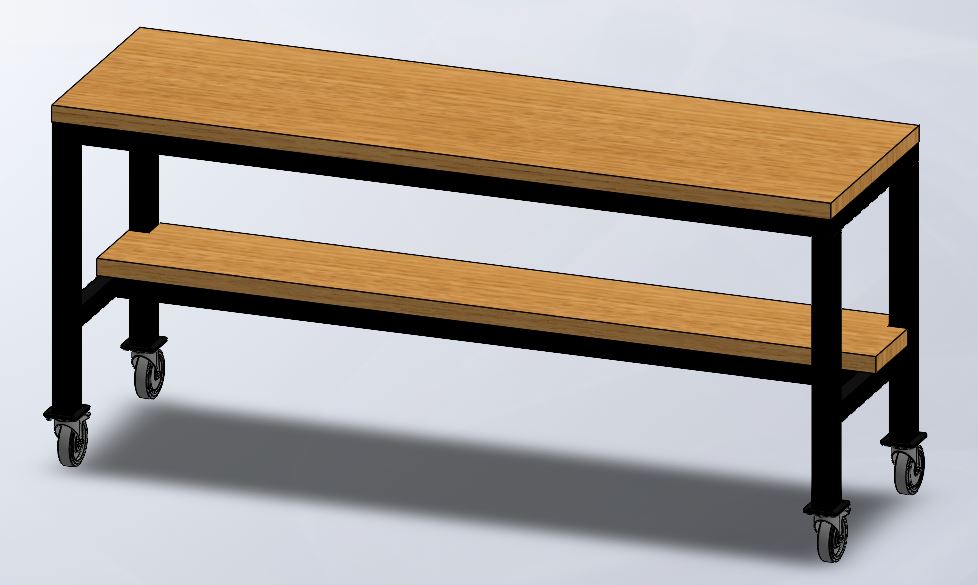

For all my builds, aesthetics are paramount. While function always comes first, looking at a piece that is both practical and well-designed enhances the experience of a workspace where I spend a lot of time. True to my process, I started with a complete CAD model to visualize the finished workbench. After measuring the available space and the exact height and depth of the adjacent tool chests, I iterated through several designs. Two key requirements drove the engineering: the bench needed to roll easily and be fully demountable for simple transport. For the final design, I specified 2” x 2” x 1/8” ASTM A500 square tubing for the main frame and 2” x 3” x 1/8” rectangular tubing for the legs, structuring the build around welded subassemblies bolted together for modularity.
|
|
With the design locked in, I sent a cut list to my cousin's metal fabrication shop and picked up the steel the next day. While his standard bandsaw cuts are generally fine for typical welding gaps, I prefer precise, tight-fitting joints with beveled edges to ensure complete penetration and accurate post-weld dimensions on custom builds. To achieve this, I intentionally specified slightly oversized lengths on my cut list and fine-tuned each piece using a metal-cutting chop saw. The image shows the top frame laid out with clean, mitered corner joints.
|
|

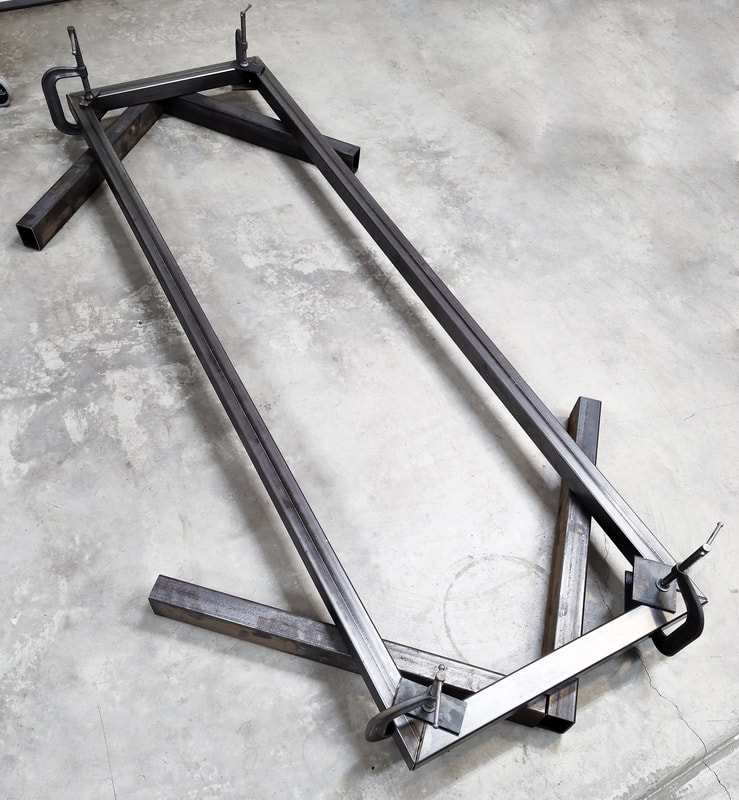

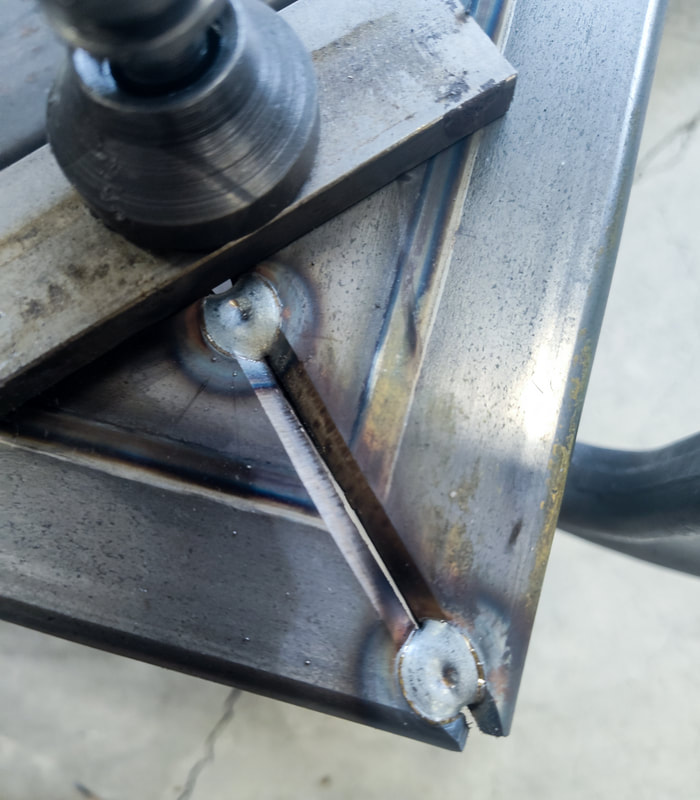

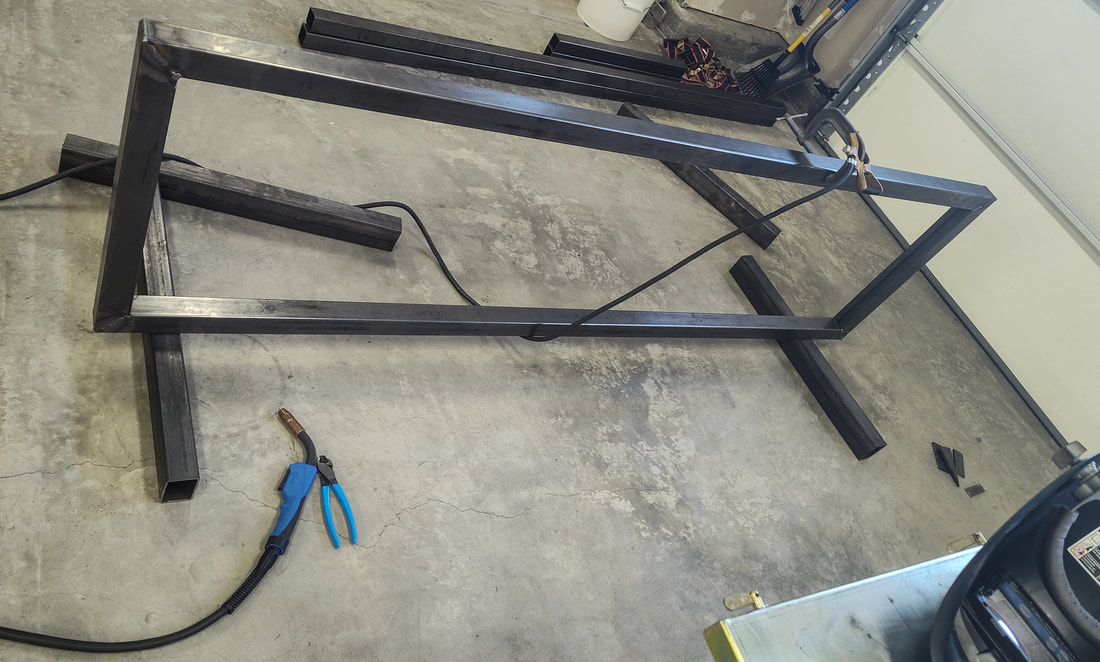

Once the edges were beveled and the mill scale removed, I staged the top frame for welding. Because garage floors are rarely level, I supported the frame on its designated legs and used C-clamps with flat 1/4-inch steel strips to perfectly align and lock the mitered corners in place. After verifying squareness and checking all critical dimensions with a fabrication square, I tightened the clamps down fully to prevent any movement during welding.
|
|
For this build, I used my Millermatic 211 MIG welder. On my previous project, I relied on a medium-duty Bernard 200A MIG gun with 0.035-inch wire. However, since I was primarily working with 1/8-inch steel this time, I decided to test the lighter-duty MDX-100 gun that came with the machine, loading it with an 0.023-to-0.030-inch liner and a 10-pound spool of 0.030-inch wire. Although I initially wrote off the lightweight gun as better suited for auto-body work than structural fabrication, I quickly grew to appreciate its handling—so much so that I later bought a 15-foot version to replace the stock 10-foot model. With the setup dialed in, I tack-welded the corners of each joint.
|
|

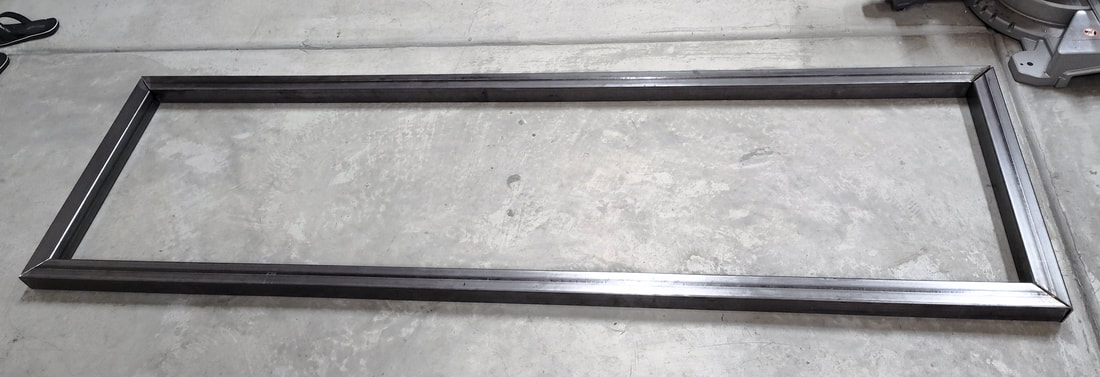

With all components securely tacked, I began welding the top frame, working from the inside corner outward while keeping the joints heavily clamped. I let the assembly cool until safe to touch, flipped the frame, and repeated the process on the underside. By skipping around the frame rather than welding continuous seams all at once, I significantly controlled heat input and minimized cooling distortion. Next, I lowered the voltage and wire feed speed by 20 to 30 percent to run the exterior corners downhill. Once cool, I laid the frame on its side, increased the machine settings, and completed the internal fillet welds.
|
|

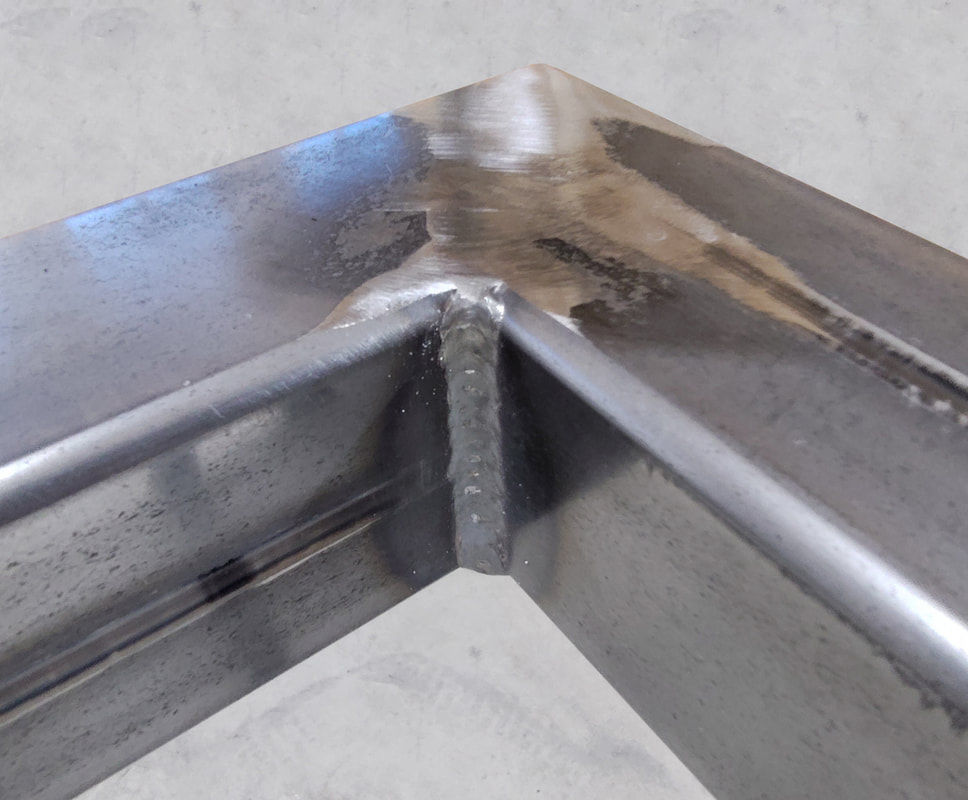

Once welding was complete, I ground the joints flush using an angle grinder and an 80-grit flap disc, taking care to remove only the excess material. The exterior corner faces were ground flush with the adjacent tube walls and then finished with a hand file to create crisp, uniform radii. I opted to leave the internal corner welds as-welded since they would be hidden from view.
|
|

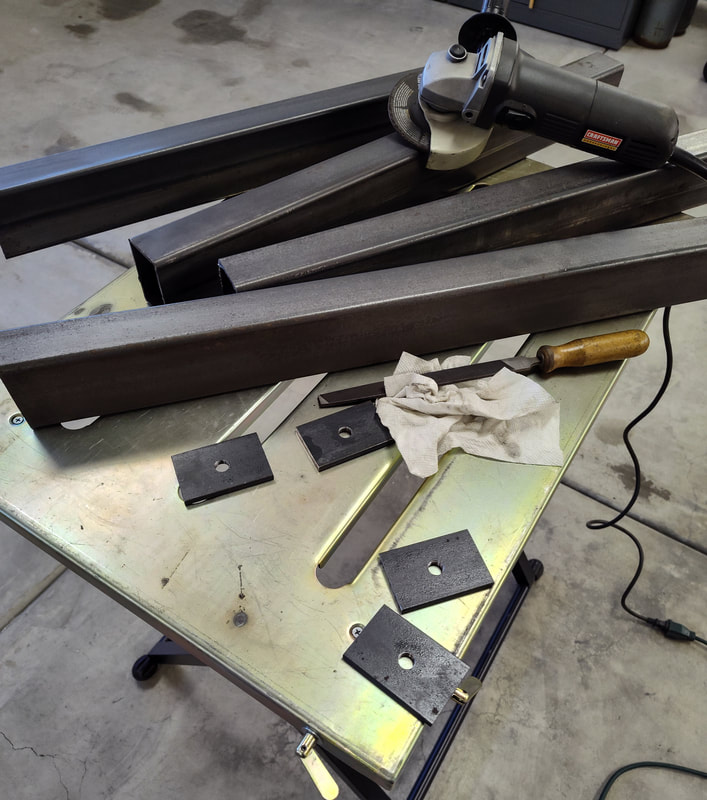

The next components to fabricate were the legs. To make them removable, I designed the legs to have threaded plates at the top, allowing a countersunk screw through each corner of the upper frame to thread directly into the leg. I started by cutting the top plates from a 2-inch wide by 1/4-inch thick steel strip. Fortunately, although both the tubing and the flat stock shared a nominal 2-inch dimension, the strip was slightly wider, providing a small overhang that I could grind flush after welding. Finally, I tapped the 3/8"-16 center holes in the plates, preparing them for assembly and welding.
|
|

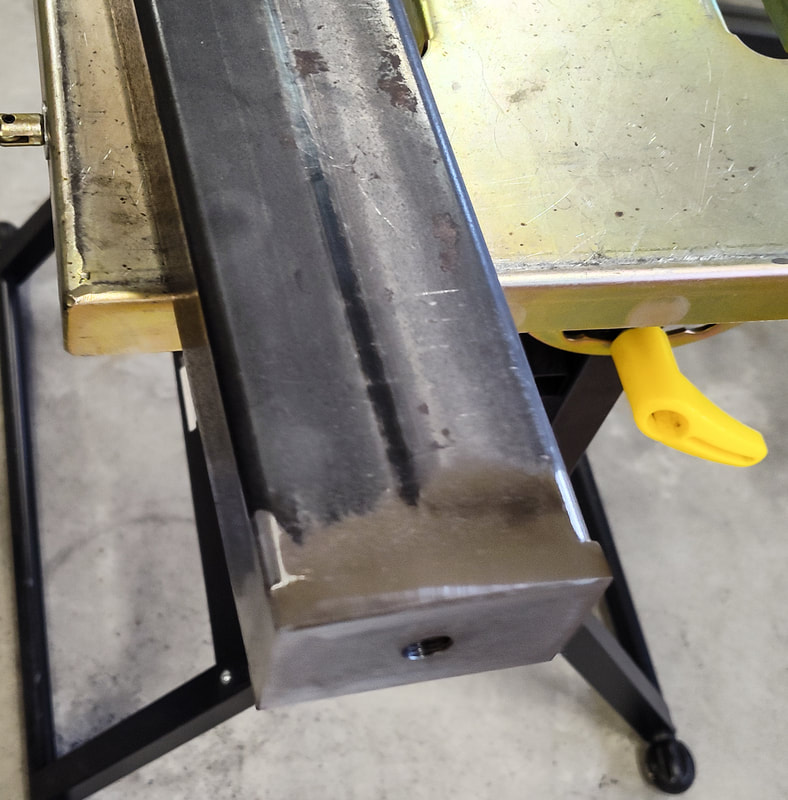

Next, I verified that the leg ends were cut as squarely as possible; any minor angular error on the top plate would amplify down the length of the leg, causing it to sit crooked. I then beveled the tube edges while leaving a small flat landing for the plate to rest against to maintain alignment. With the components prepped, I used a long 3/4-inch pipe clamp to lightly snug the plate, centered it carefully, and locked the clamp down. After tacking each corner, I fully welded the edges of each leg sequentially until all top plates were securely installed.
|
|
Once the welds were complete, I ground them flush using the angle grinder and an 80-grit flap disc. I initially debated keeping the plate corners square and filing only the tube edges as shown, but ultimately decided to round the plate corners with a file to create a clean, consistent radius along the entire length of the leg.
|
|
With the leg mounts finished, I moved on to the casters. Early in the project, I bought two different styles to compare side-by-side: the 5-inch German "easy-roll" casters shown in the image and a larger, American-made 6-inch Patriot caster. I ultimately chose the easy-roll casters because they matched my aesthetic goals and offered much lower rolling friction.

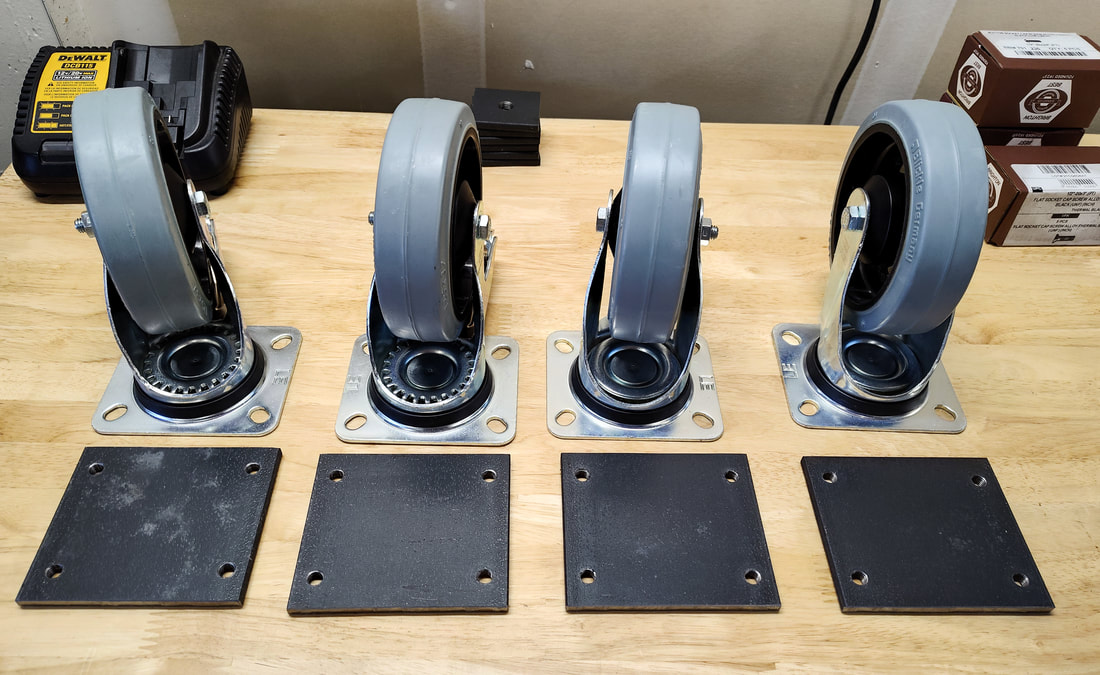

To fabricate the mounting plates, I cut 3.5-inch lengths from a 4-inch by 1/4-inch hot-rolled flat bar. I centered a caster on each plate and used a transfer punch to mark the hole locations. Next, I enlarged each divot with a 120-degree center punch and pilot-drilled to the tip depth of a 7/32-inch 135-degree drill bit using a hand drill. (Note: Machining best practices on a mill or CNC call for a spot drill equal to or larger than the follow-up drill angle to prevent edge catching and guide the drill into the hole. Using a 120-degree center punch followed by the gentle use of a hand drill with 7/32” bit accomplishes a similar goal, acting as a spot for the drill press, allowing the drill tip to self-center accurately.) Finally, I drilled the holes on the drill press to 9/32" to achieve 50% thread engagement, and then tapped the 5/16"-24 holes to securely mount the casters. |
|

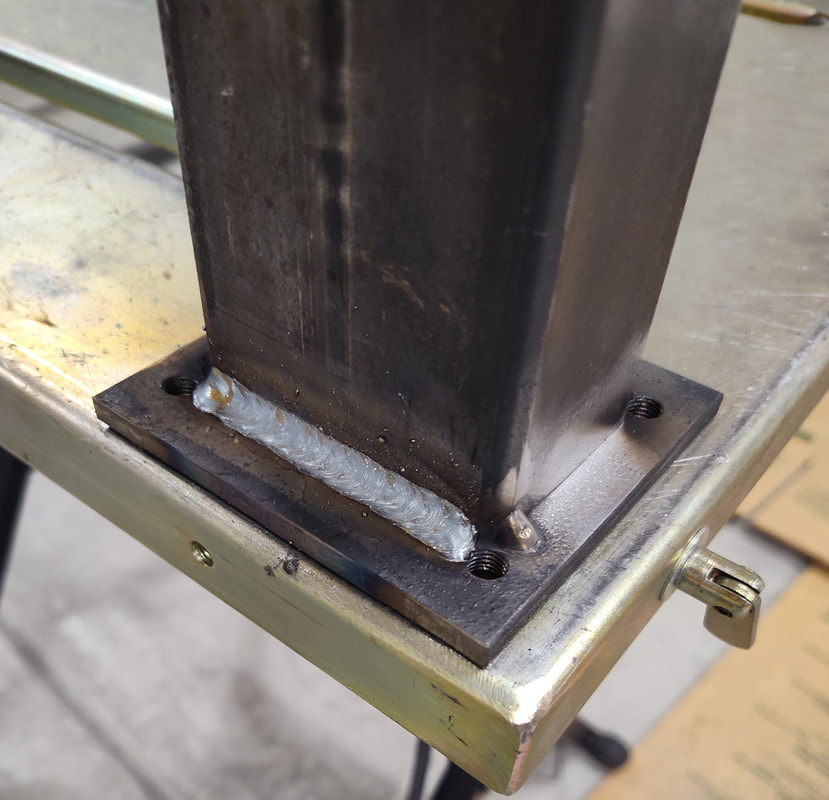

The next step was to weld the caster plates to the bottom of the legs, which required less precision than previous steps—it was simply a matter of centering the plate and running fillet welds. However, the heating and cooling cycles caused minor distortion, requiring me to chase the threads with a tap afterward. In my current builds, I now save the tapping step until after welding to avoid this issue entirely.
|
|

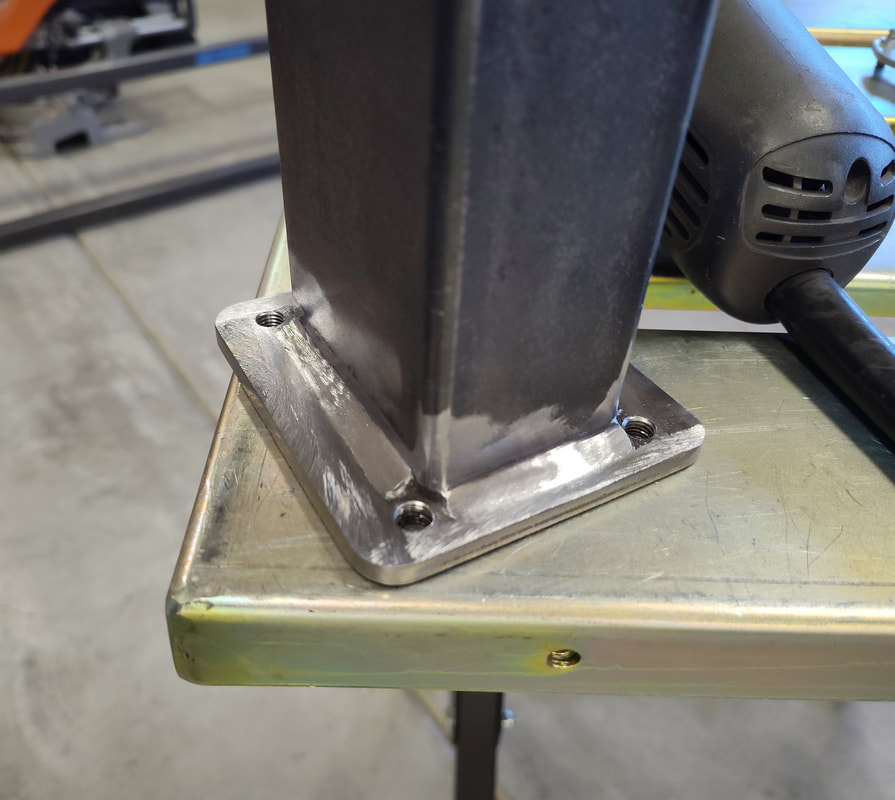

Finally, even though it wasn't strictly necessary, I ground the throats of the caster plate fillet welds into a neat triangular shape so they'd look seamless and polished once powder-coated.
|
|

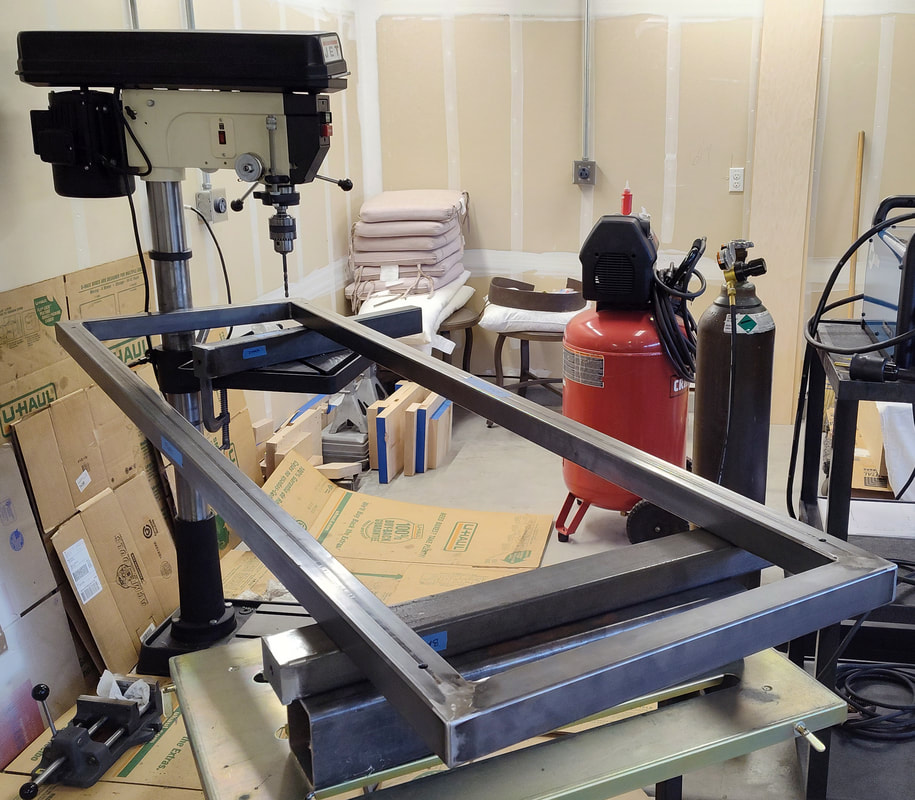

To make the work top and legs detachable, I needed to drill clearance holes in the frame for the countersunk mounting screws. While a magnetic drill press would have been ideal, I didn't have one on hand, so I managed the job using my standard drill press instead.
One minor challenge with this design was that the backside of the mitered weld seams occasionally interfered with the drill bit, preventing it from entering squarely. As a result, a few of the holes weren't perfectly perpendicular and required slight enlargement on the opposite side. To align the countersinks accurately, I lowered the drill bit into each hole, aligned the frame perpendicularly to the drill bit as best as possible, and clamped everything securely in place. I then swapped the bit for a single-flute countersink and ran the drill press at 150 rpm. I prefer single-flute countersinks because they minimize chatter and cut much cleaner than multi-flute alternatives. Once finished, I verified the depth by dropping in the screws and confirming that the heads sat completely flush with the top of the frame. |
|

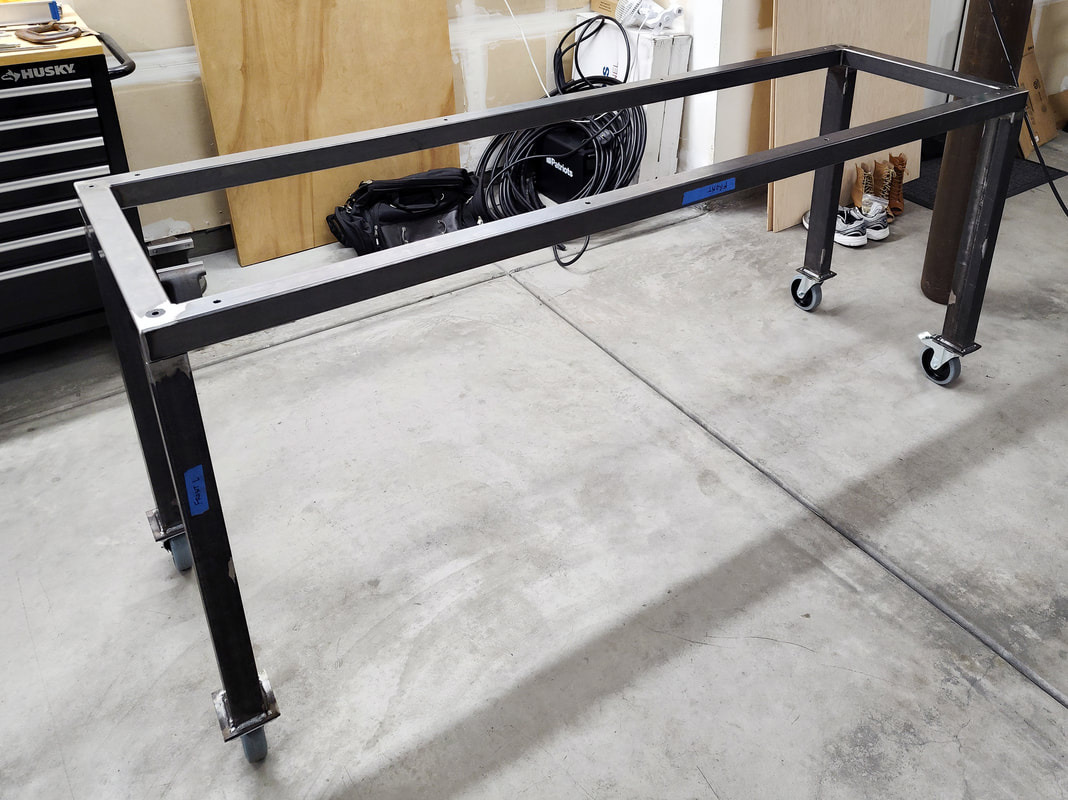

With the legs and frame finished, I bolted the assembly together for a test fit. The easy-roll casters glided smoothly across the floor with zero wobble, and the assembly fit perfectly into its designated space. So far, so good.
|
|

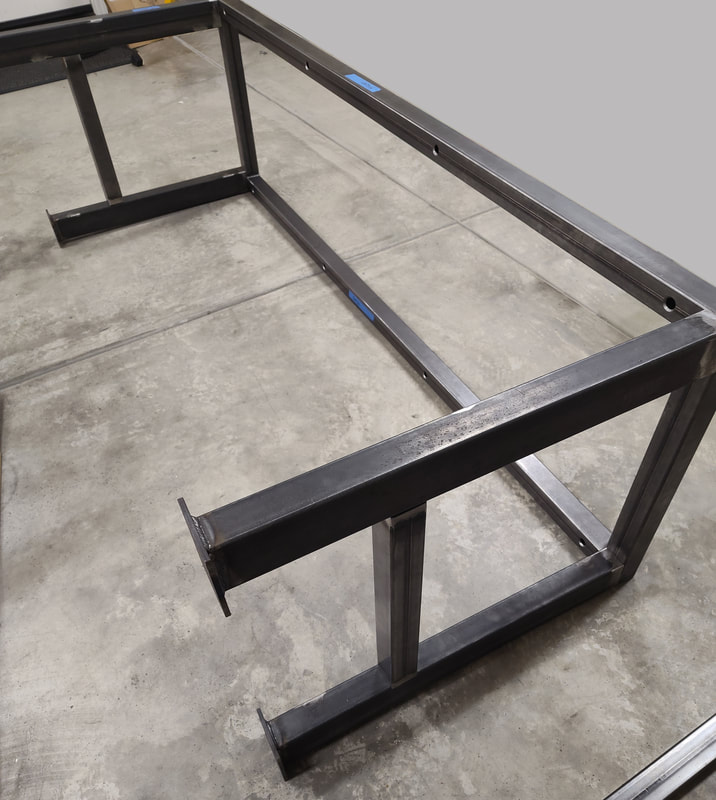

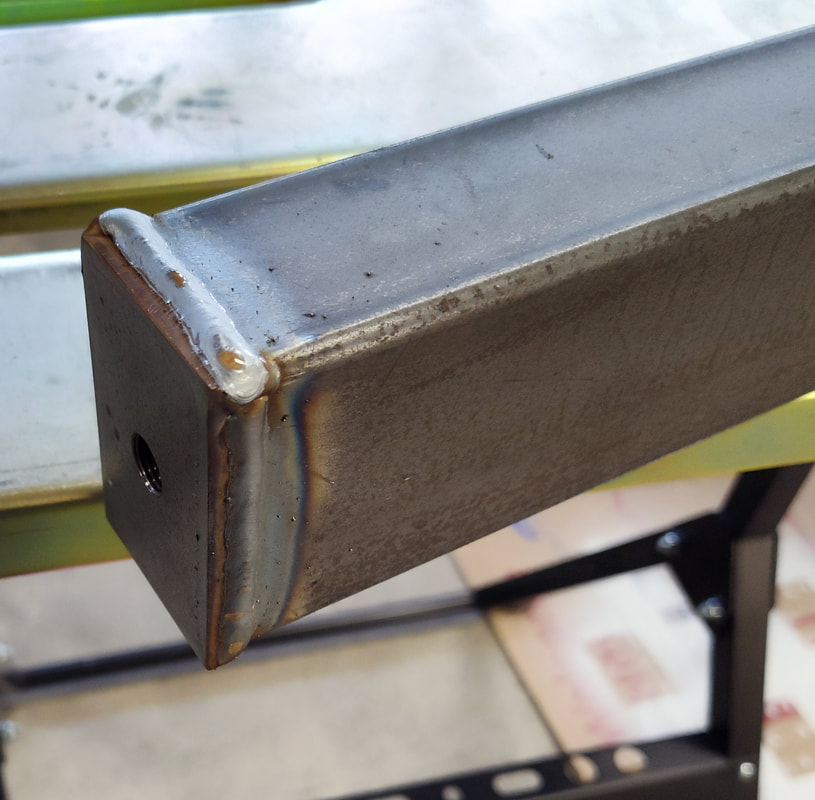

Next, I turned my attention to the lower cross-members. The design called for two main lower sub-assemblies: a rear cross-beam and a center cross-member assembly that tied into all four legs via side cross-members. The side and rear cross-members were fabricated similarly to the top of the legs—tapped 1/4-inch end plates were welded to each end, and the welded joints were ground smooth and hand-filed to maintain consistent radii along their entire length. Because normal manufacturing tolerances, hole locations, and welding distortion can cause slight size variations, I carefully custom-fit each cross-member for the tightest possible fit without forcing the legs outward or pulling them inward. The image shows the side cross-member fitting.
|
|
Once the side and rear cross-members were properly fitted, I drilled clearance through-holes in the legs for button-head screws, which would be accessed through larger entry holes in the front and rear. Unlike the top frame—which relied on countersunk fasteners—I chose this method for a cleaner look, since the access holes would eventually be hidden with flush plugs. Additionally, I drilled the necessary mounting holes through the rear and center cross-members, which would use countersunk screws to bolt both the lower shelf and the top securely to the frame.
|
|

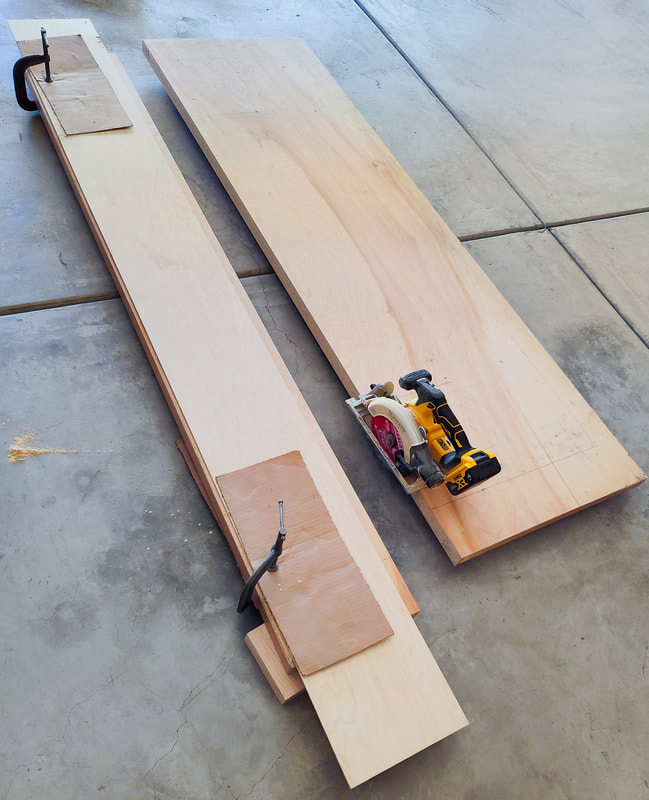

To determine the exact mounting position for the center cross-member, I first needed to cut the lower shelf, so I shifted my focus to that next. I clamped a large strip of wooden cabinet backing to my 8-foot by 3-foot workbench top to serve as a straightedge guide, carefully measuring the distance from the edge before locking it down with C-clamps. Because the wood's appearance was critical, I was worried about potential tear-out along the cut line. To prevent this, I applied a strip of painter's tape directly over the cut path and swapped out the stock 24-tooth blade on my 6.5-inch circular saw for a 60-tooth ultra-fine blade. The blade cut smoothly, resulting in exceptionally clean edges.
|
|

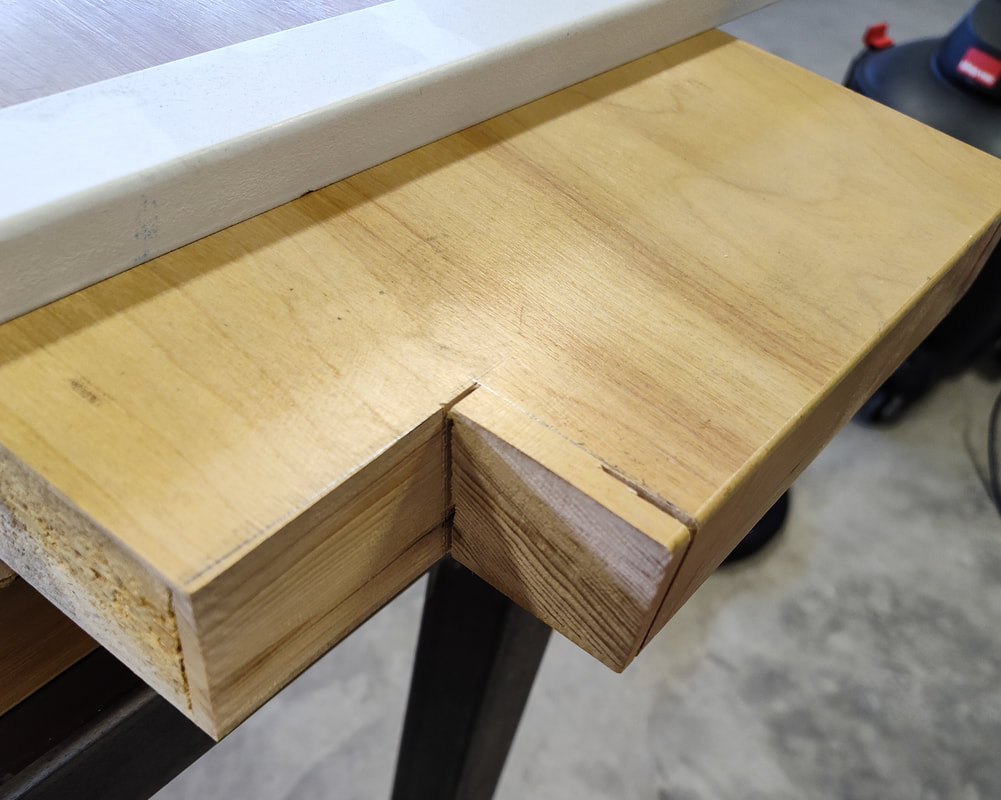

Because the rear corners of the lower shelf required cutouts to clear the legs, I figured a jigsaw would be the ideal tool for the job. Since the wood was 1.5 inches thick, I picked up a set of Bosch Expert Wood 2-Side Clean 12 TPI high-carbon steel jigsaw blades. At over 4.5 inches long, they should have made quick work of it. Unfortunately, I quickly ran into a major roadblock: while my 30-year-old US-made Craftsman jigsaw was a champ at cutting sheet metal, its bevel mechanism was completely worn out and incapable of making a square cut through anything thicker than a few millimeters.
Realizing it was time for the Craftsman’s retirement, I ordered a new cordless model. In the meantime, since the corner cuts were already partially started, I managed to finish the job by making careful passes with the circular saw from both sides. It wasn't quite as clean as I would have preferred, but once the workbench was fully assembled, the cutouts were completely hidden and unnoticeable. |
|

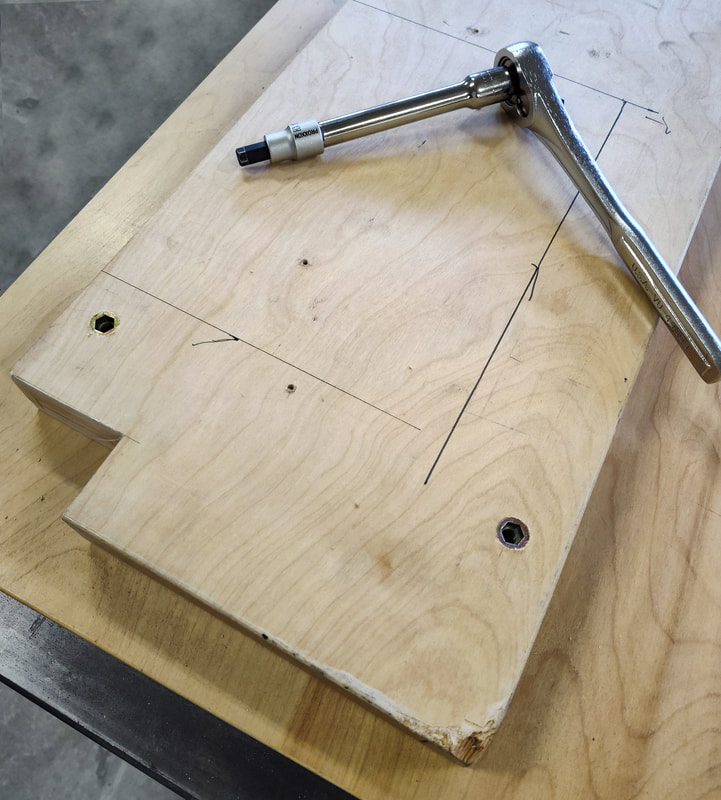

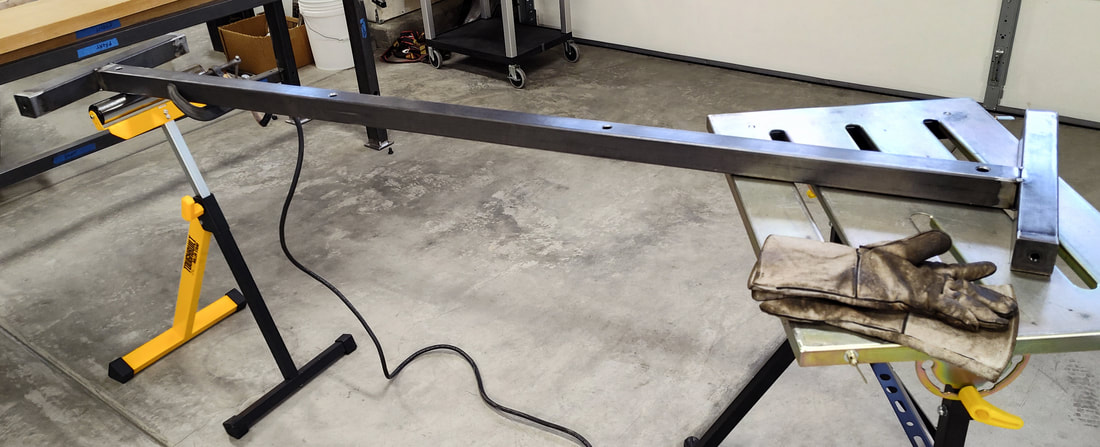

With the lower shelf finished, I screwed the rear and side cross-members into place. Because the center cross-member needed to be welded directly to the two side cross-members, I clamped the lower shelf to the rear cross-member using C-clamps, and clamped the center cross-member to the front of the shelf. Once everything was properly positioned, I used a transfer punch through the cross-member holes to mark the mounting locations onto the lower shelf, then unclamped the wood for drilling. I repeated this exact clamping and transfer punch process for the workbench top. Finally, I drilled the holes to the correct depth—using a piece of painter's tape wrapped around the drill bit as a depth stop—and installed softwood threaded inserts into the underside of both wood pieces.
|
|

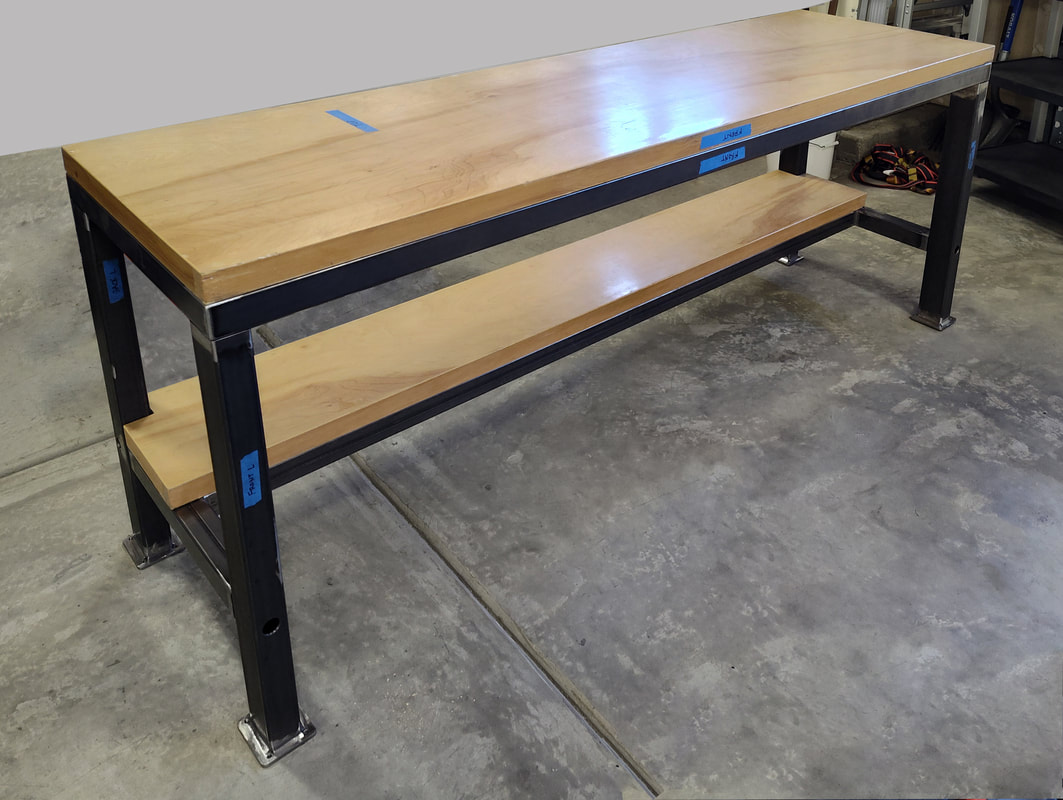

With the threaded inserts in place, I screwed both the workbench top and lower shelf to the frame for a test fit. Everything lined up and fit together well. Next, with the center cross-member bolted securely in position, I tack-welded its underside corners to the side cross-members. Finally, I unbolted the assembly, removed the center cross-member piece, and fully welded all around each joint.
|
|

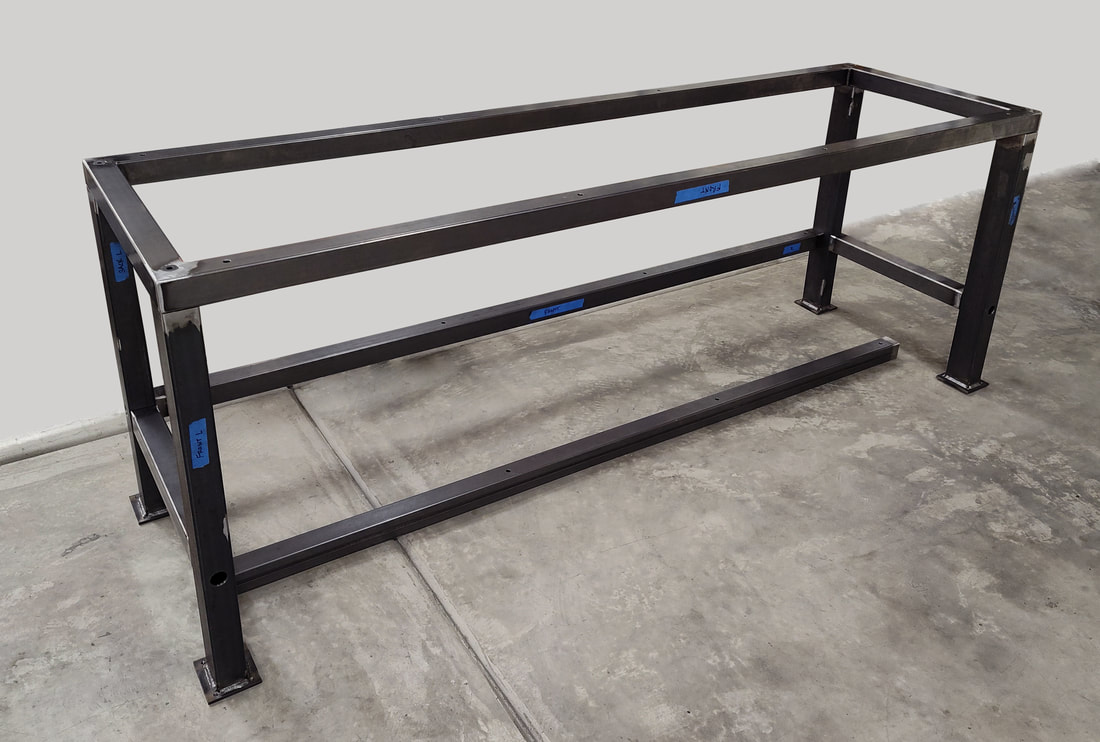

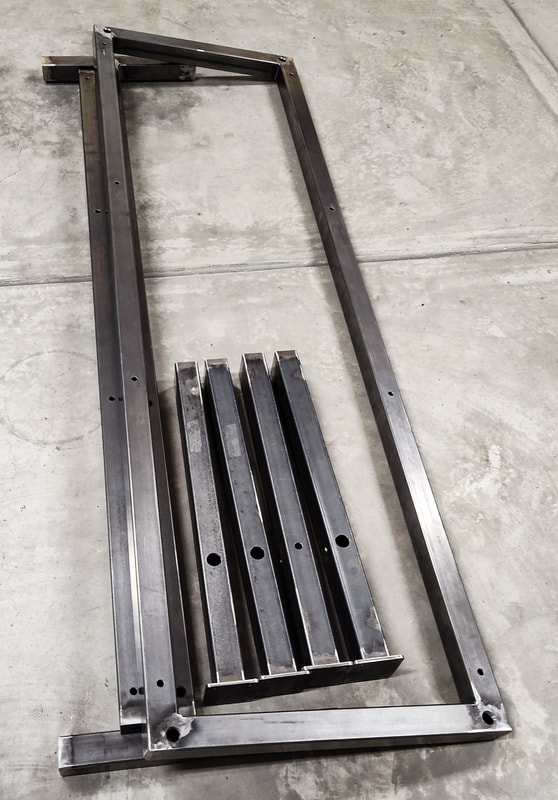

With all the cross-members fully welded, I did one final test fit of the shelf and workbench top prior to sending everything off for powder-coating. Everything fit precisely as intended.
|
|
Next, the frame was completely disassembled and taken to a powder-coater. I used a newly recommended shop that has since become my go-to. Their process begins by blasting everything with 120-grit steel shot to strip away mill scale, rust, and any old coatings, bringing the steel down to bare metal. Next, they preheat the frame components in the oven, remove them while hot, and apply the powder coating. Finally, the frame goes back into the oven at 400 degrees F until the powder is fully cured.
|
|
While the metal was at the powder-coater, I prepared the cut edges of the particleboard workbench top and lower shelf. To seal the exposed interior core against moisture and impact damage while improving the overall aesthetic, I applied a 2-inch wide roll of adhesive-backed birch edge banding. Although the wood species was not a precise color match, this was acceptable since the banded edges face the rear wall and remain entirely hidden from view. After sizing the strips against the panels, I trimmed the ends flush using side cutters.
|
|

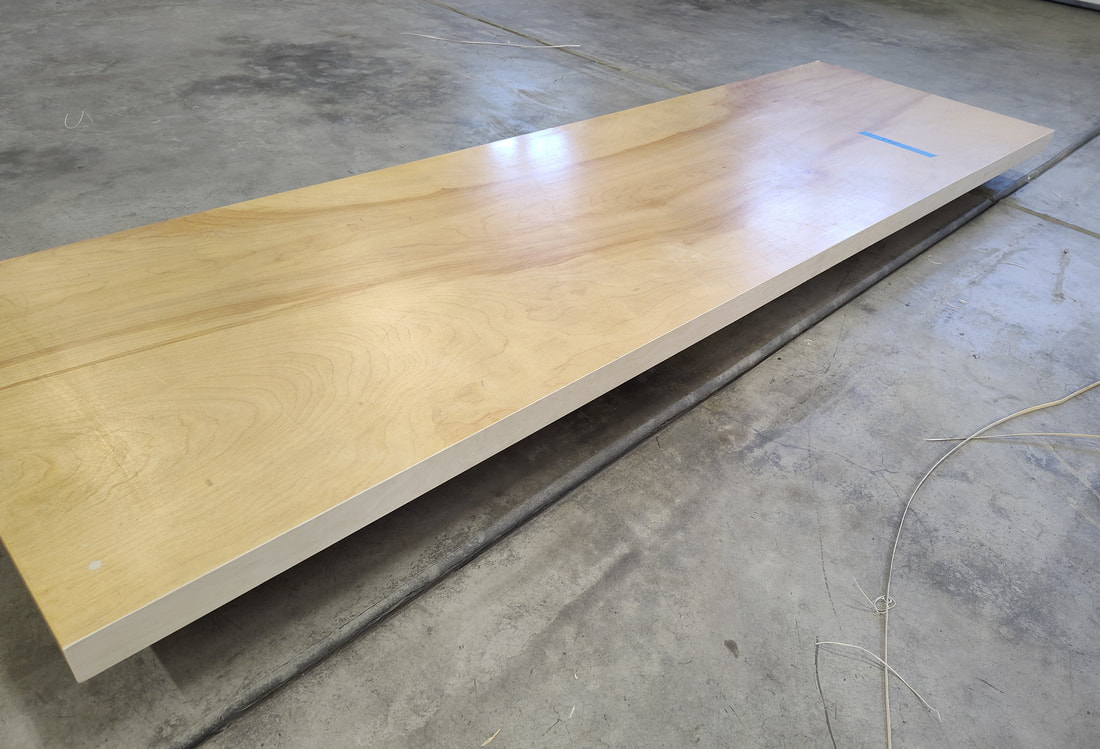

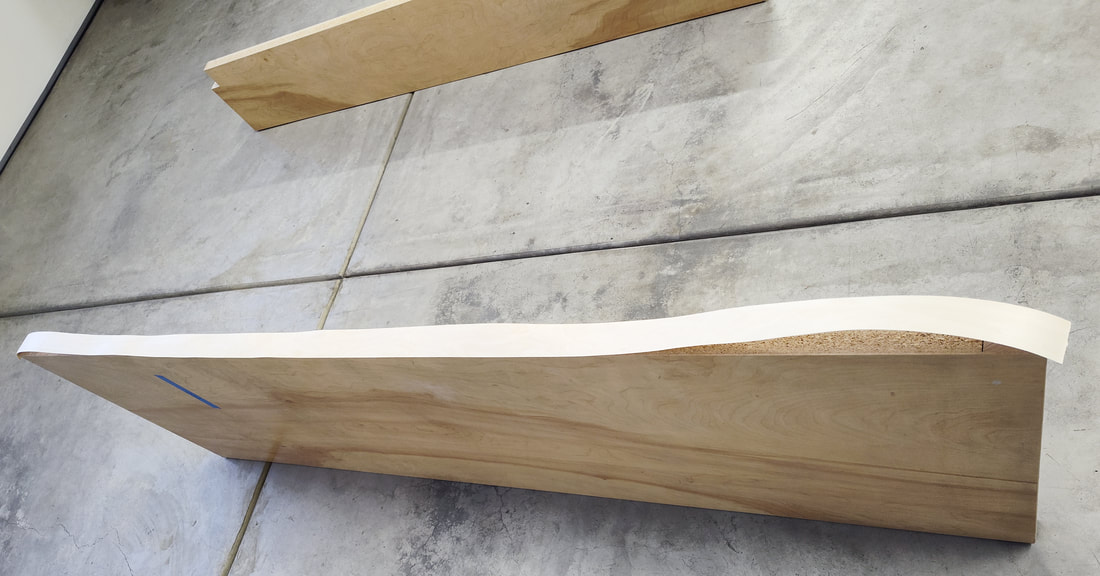

With the birch edge banding positioned to allow a slight overhang on all sides, I activated the pre-applied hot-melt adhesive using a standard clothes iron. Once the bond cured and cooled, I broke the edges by running the iron along them, trimmed the excess material flush with a sharp razor blade and finished the perimeter using 220-grit sandpaper for a smooth edge.
|
|

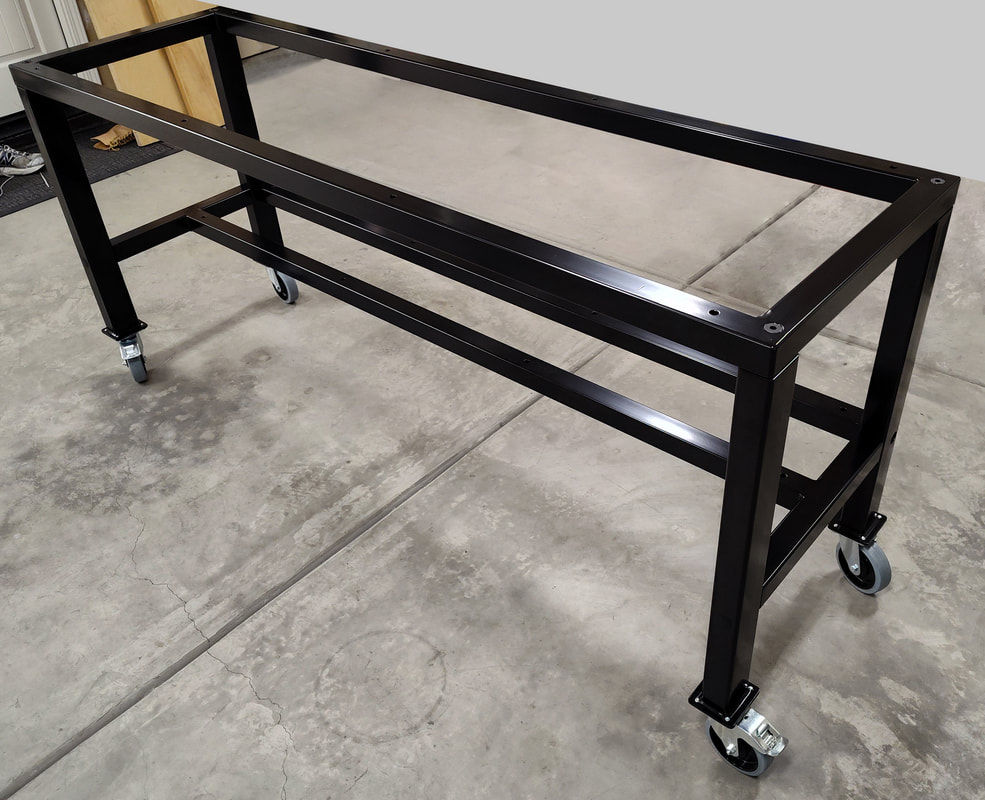

Thrilled with the powder-coating results, with the newly powder-coated frame components back in hand I moved ahead with final assembly.
|
|

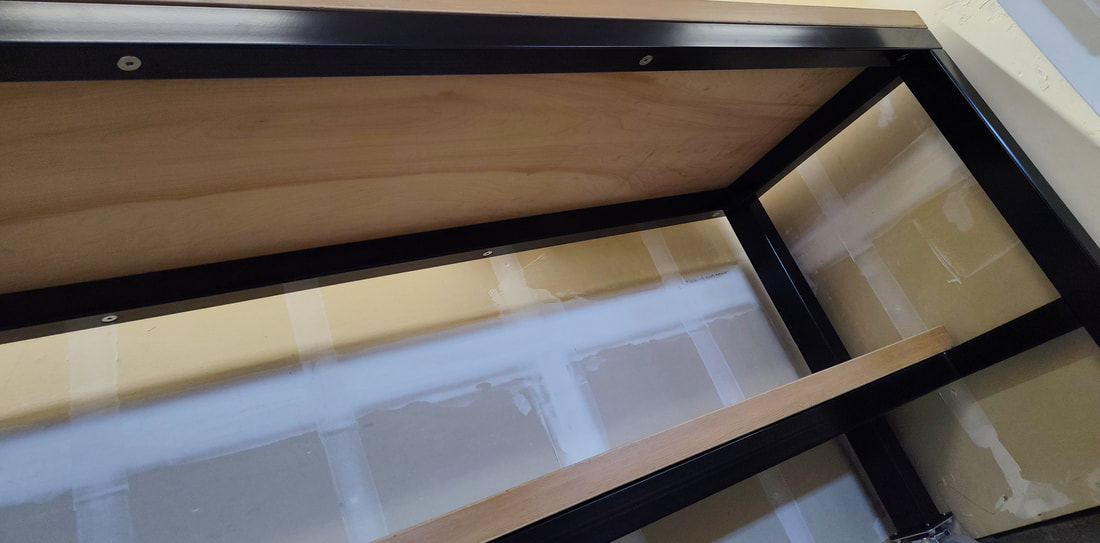

For final assembly, I secured the workbench top and lower shelf to the steel frame using 3/8"-16 countersunk screws. As shown, the countersunk design allows the screw heads to seat completely flush with the underside of the frame for a clean, professional look.
|
|

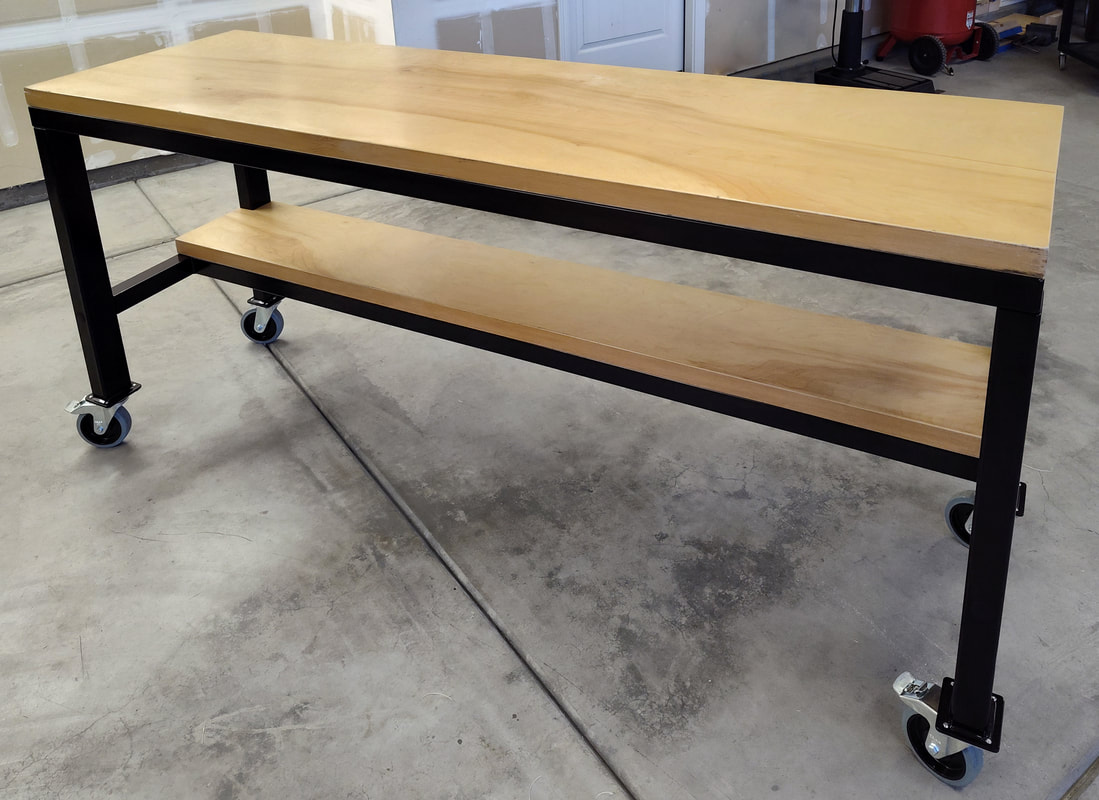

The completed assembly delivers a clean, professional aesthetic while providing much-needed additional workspace.
|
