6061-T6 Aluminum Gearbox Cover
Write-up in progress!

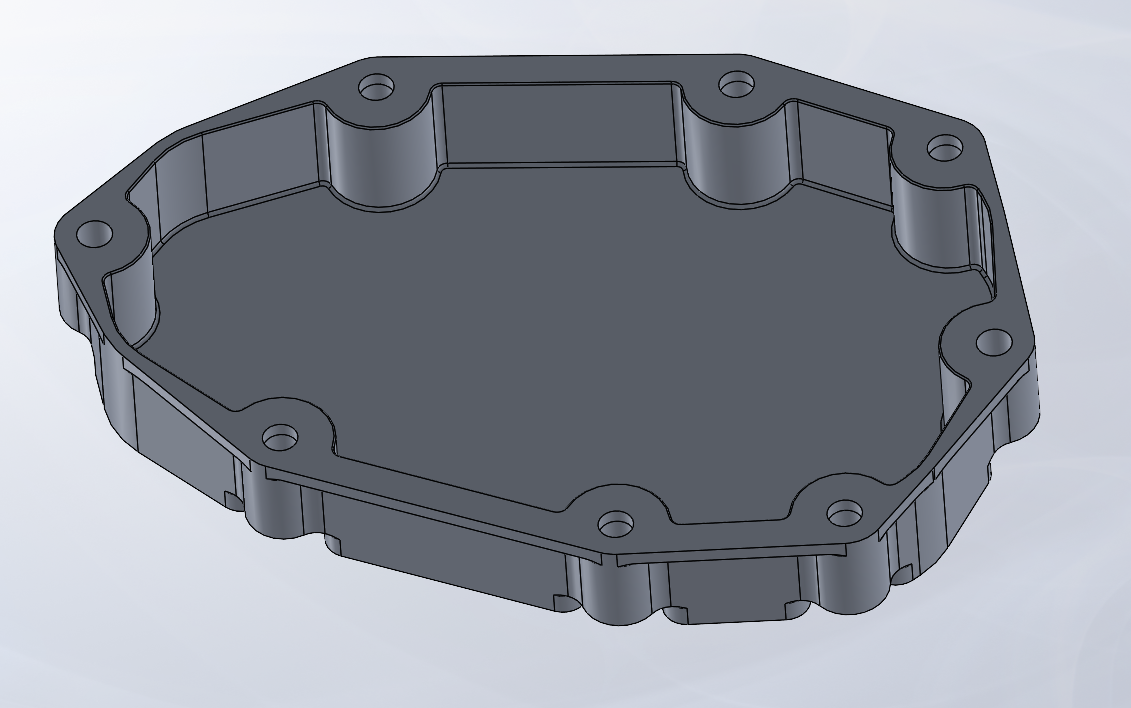

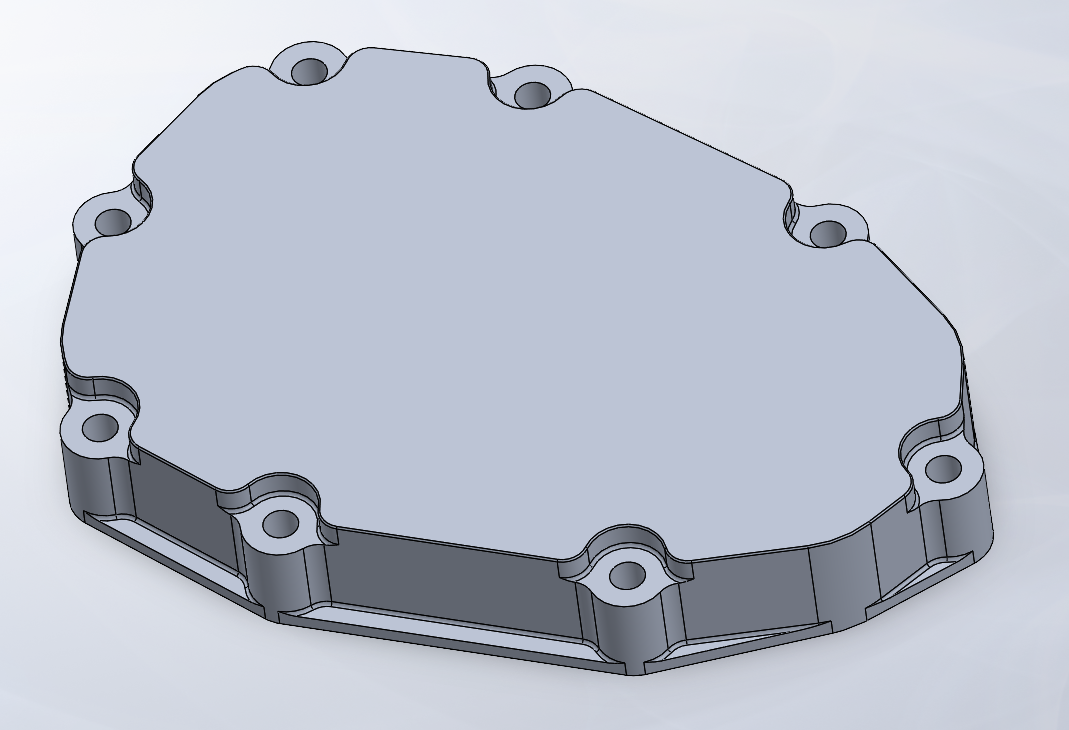

Design archives often hold legacy files that highlight how far your CAD skills and capabilities have evolved over the decades. I encountered this exact scenario recently when sorting through old storage and stumbled upon a part file of a gearbox cover I originally drafted in 2003 when I was first getting familiar with SolidWorks. Intrigued by the intricate geometry and the creative fixturing it might demand, and armed with some unexpected free time, I decided to finally bring the digital model off the screen and onto the shop floor, for no other reason than because it seemed like an interesting part to make. Translating this vintage drawing into reality required moving beyond standard vices and leveraging advanced CAM strategies—utilizing Mastercam's dynamic toolpaths rest-milling, and a custom-pinned fixture plate. This breakdown covers the complete end-to-end manufacturing process.
Design archives often hold legacy files that highlight how far your CAD skills and capabilities have evolved over the decades. I encountered this exact scenario recently when sorting through old storage and stumbled upon a part file of a gearbox cover I originally drafted in 2003 when I was first getting familiar with SolidWorks. Intrigued by the intricate geometry and the creative fixturing it might demand, and armed with some unexpected free time, I decided to finally bring the digital model off the screen and onto the shop floor, for no other reason than because it seemed like an interesting part to make. Translating this vintage drawing into reality required moving beyond standard vices and leveraging advanced CAM strategies—utilizing Mastercam's dynamic toolpaths rest-milling, and a custom-pinned fixture plate. This breakdown covers the complete end-to-end manufacturing process.
|
With the legacy SolidWorks file pulled up, my first step was evaluating the geometry to map out the manufacturing strategy for what was clearly a multi-operation, 3-axis part destined for the VMC. While reviewing material options, I learned the shop had pre-cut 6-inch lengths of 4” x 1” 6061-T6 bar stock on hand—an ideal envelope that required only squaring up the ends. Knowing the geometry would ultimately demand creative work-holding rather than a standard vise, I also grabbed a single 4” x ½” x 6” aluminum piece from the cabinet to keep on hand as blank stock while I figured out the exact fixturing approach.
|
|

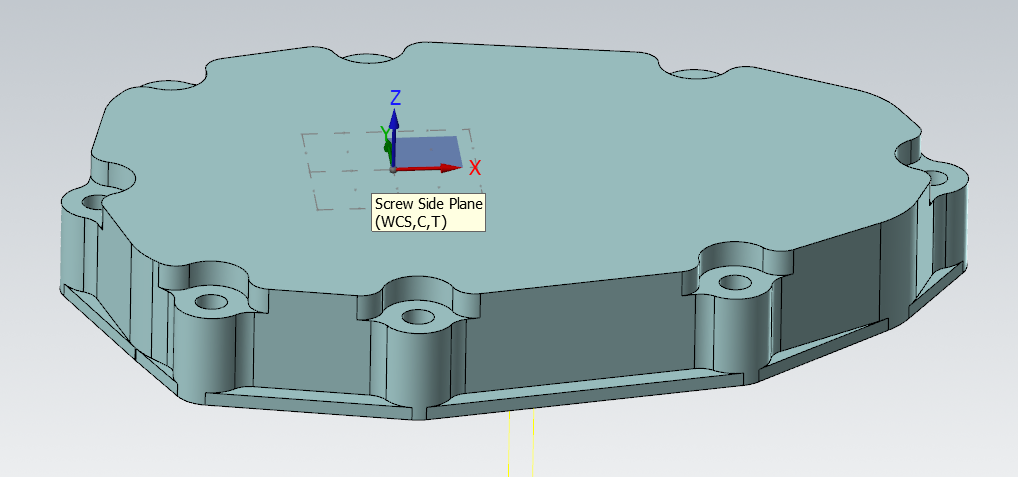

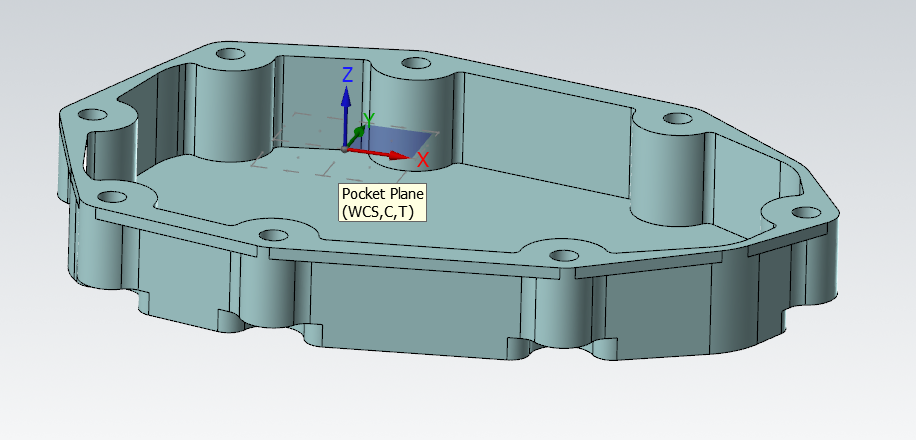

The next step was establishing a machining strategy and process plan. Evaluating the part geometry from a work-holding standpoint, it became clear that the logical approach was to start with the pocketing operation, flip the part to machine the holes, and then bolt the part directly down to a fixture plate to finish the outer contour. To execute this seamlessly, I set up the model in Mastercam using G54 and G55 coordinate systems for the bottom and top of the part, while reserving G56 for the center of the fixture plate. For the X and Y datum, I locked the zero-point to the X-axis location of the two most Y-distant opposing holes. Establishing this specific location as the primary reference allowed me to maintain a common, repeatable X/Y coordinate framework across both the part and the fixture plate, completely independent of raw stock variations.
|
