Desktop Architecture: Custom Fabricating an Integrated Desk Shelf for Test Equipment

When setting up my office, I wanted a dedicated workspace for electronics testing and design. While commercial shelving is a common solution, I wanted something highly functional, aesthetically refined, and visually cohesive with my existing office furniture. Realizing that an off-the-shelf product wouldn't meet these requirements, I decided to custom-design my own setup—providing a great excuse to put my newly upgraded welder to use.

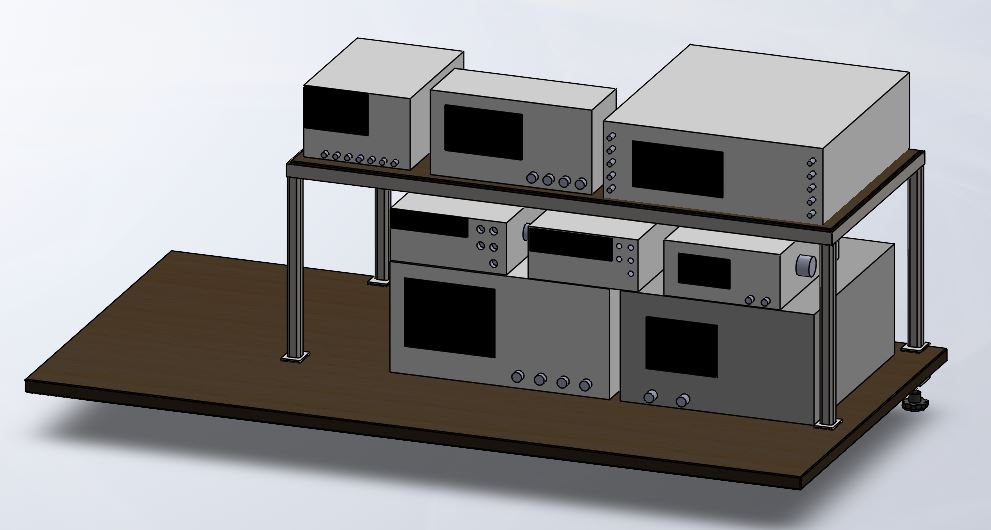

The first step was determining the correct dimensions for the shelf. I measured all my test equipment and modeled them in SolidWorks while physically stacking the gear in various orientations to find the best balance of function and aesthetics. I factored in clearance for rear connector access, front workspace for breadboards and PCB prototyping, and room for future expansion. Since the shelf was destined to sit on top of a desk, I also wanted a way to anchor it securely without drilling holes or using permanent desk fasteners.

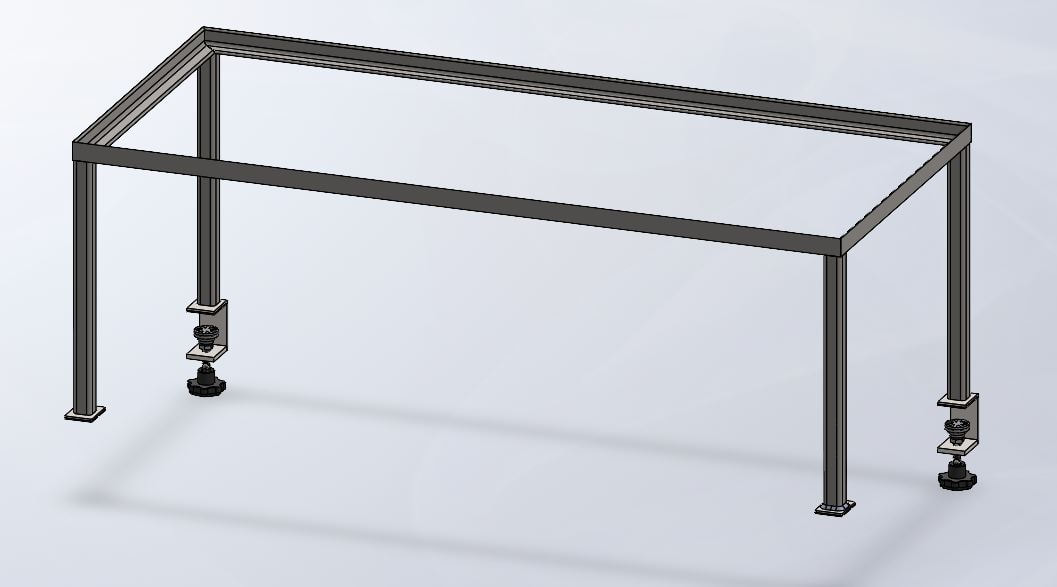

After some brainstorming, I designed a clamping mechanism similar to a monitor mount, integrating rubber pads on the shelf feet to protect the wood from direct metal contact. Using CAD models downloaded directly from McMaster-Carr for the hardware, I finalized the prototype design and ordered the steel.

For the structure, I chose 1” x 1” x 1/8” ASTM A500 square tubing for the legs and 1” x 1” x 1/8” angle iron for the shelf frame. While I initially debated using square tubing for the upper frame as well, I preferred the angle iron because it allows the shelf surface to drop in flush and snug without wasting any usable space. Plus, since my previous projects relied heavily on square tubing, I wanted to mix it up a bit.

To anchor the shelf to the desk, I designed a clamping system using a plastic knob with a 3/8”-16 stud for easy hand-tightening, paired with a threaded swivel leveling mount that presses against the underside of the desk.

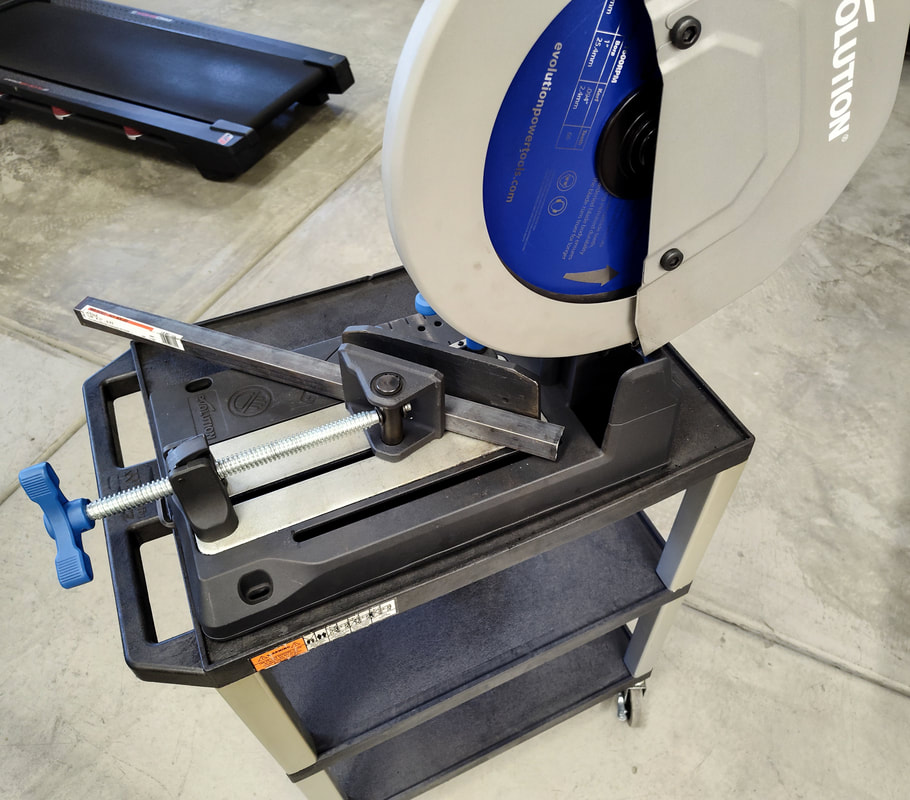

Once the steel arrived, I cut the square legs and angle iron to length using a metal-cutting chop saw equipped with a carbide-tipped blade. I mitered the ends of the angle iron at 45 degrees for a cleaner, more professional post-weld look. To ensure full penetration while still allowing me to grind the weld reinforcement completely flush, I beveled the connecting edges of both the square tubes and the angle iron frame. Finally, I ground away all mill scale from the joint areas to prepare them for a clean, sound weld.

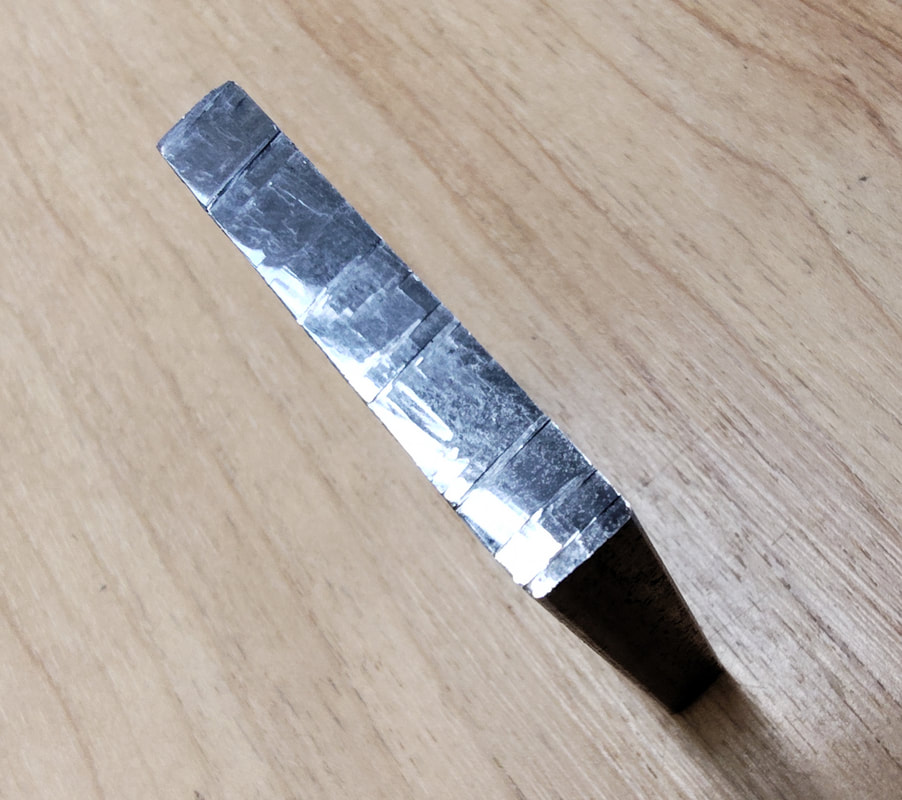

Next, I cut the ¼” flat bar to size for the C-shaped clamp brackets and feet. While the chop saw makes quick work of cuts, its carbide blade leaves minor jagged tooth marks that aren't ideal for a smooth final finish. Since I planned to have the frame powder-coated to match my desk, and my coater's golden rule is "if you can feel it, it will show up in the powder coat," I meticulously cleaned up all the cut edges with an angle grinder and a 50 grit sanding disc. Finally, I clamped the designated pieces into the drill press vise, drilled the holes, and tapped them for the hardware.

With all the pieces cut and prepped, it was time to start welding. For this project, I used my recently acquired (at the time) Millermatic 211 inverter welder. While the stock Miller MDX-100 MIG gun was fine for thinner stock, I prefer to push my machines to their full potential. For anything 1/8” and thicker—like the ¼” steel on the C-sections—I used a heavier-duty 15-foot, 200-amp Bernard MIG gun loaded with a 0.035”-0.045” liner.

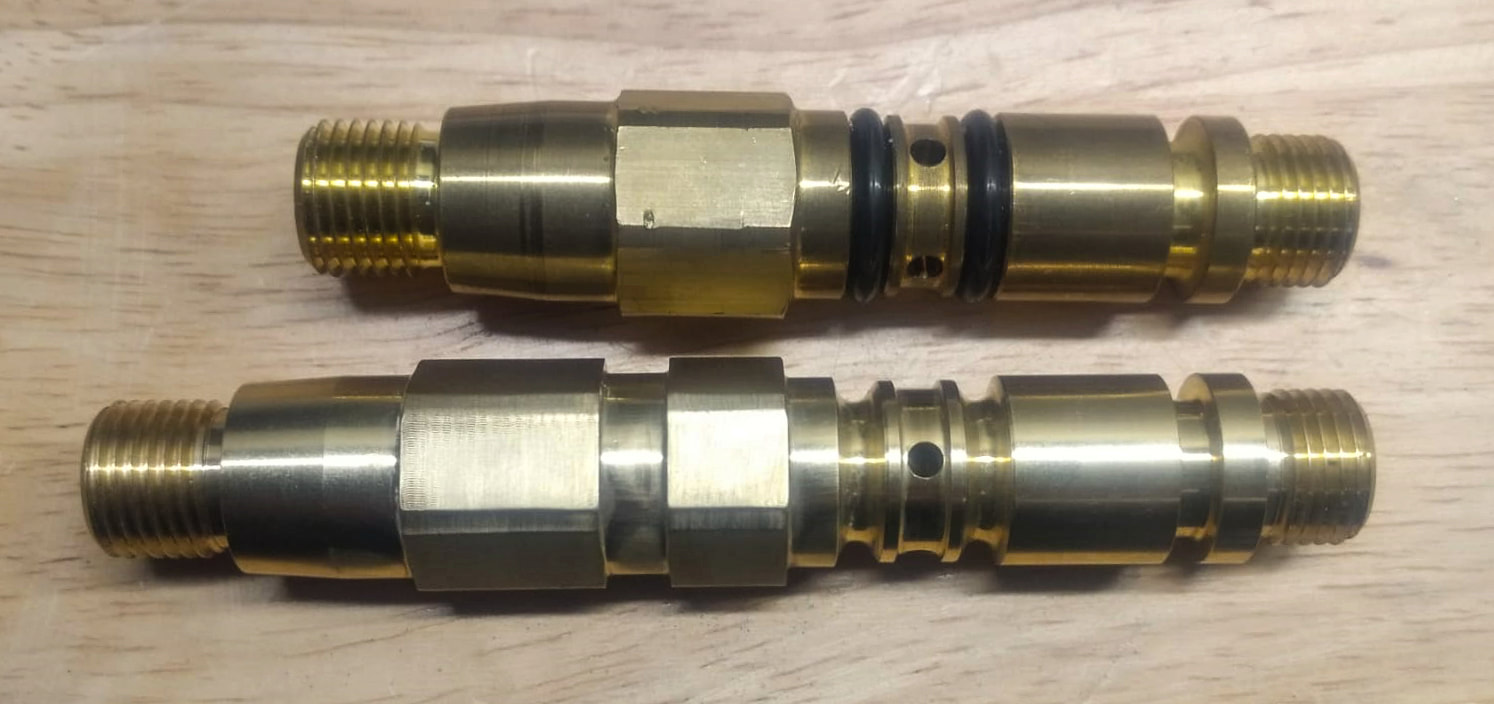

While older transformer-based Millermatic 211's accepted older Bernard-Miller power pins out of the box, the pin on my new gun wasn't quite long enough for the Millermatic 211 inverter model. To bridge the gap, I removed the original pin, measured every dimension with digital calipers, and modeled a custom pin in SolidWorks featuring an extended hex section. I sent the drawing off to my go-to prototype shop in China to have it CNC machined out of C27200 (yellow) brass. The image highlights the difference between the stock pin and the custom version.

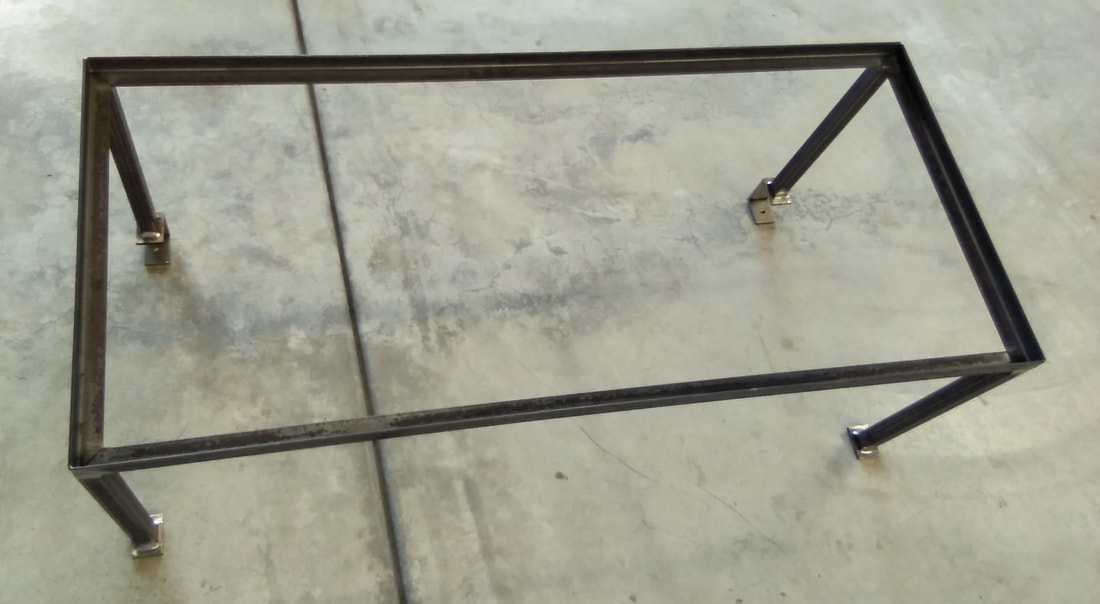

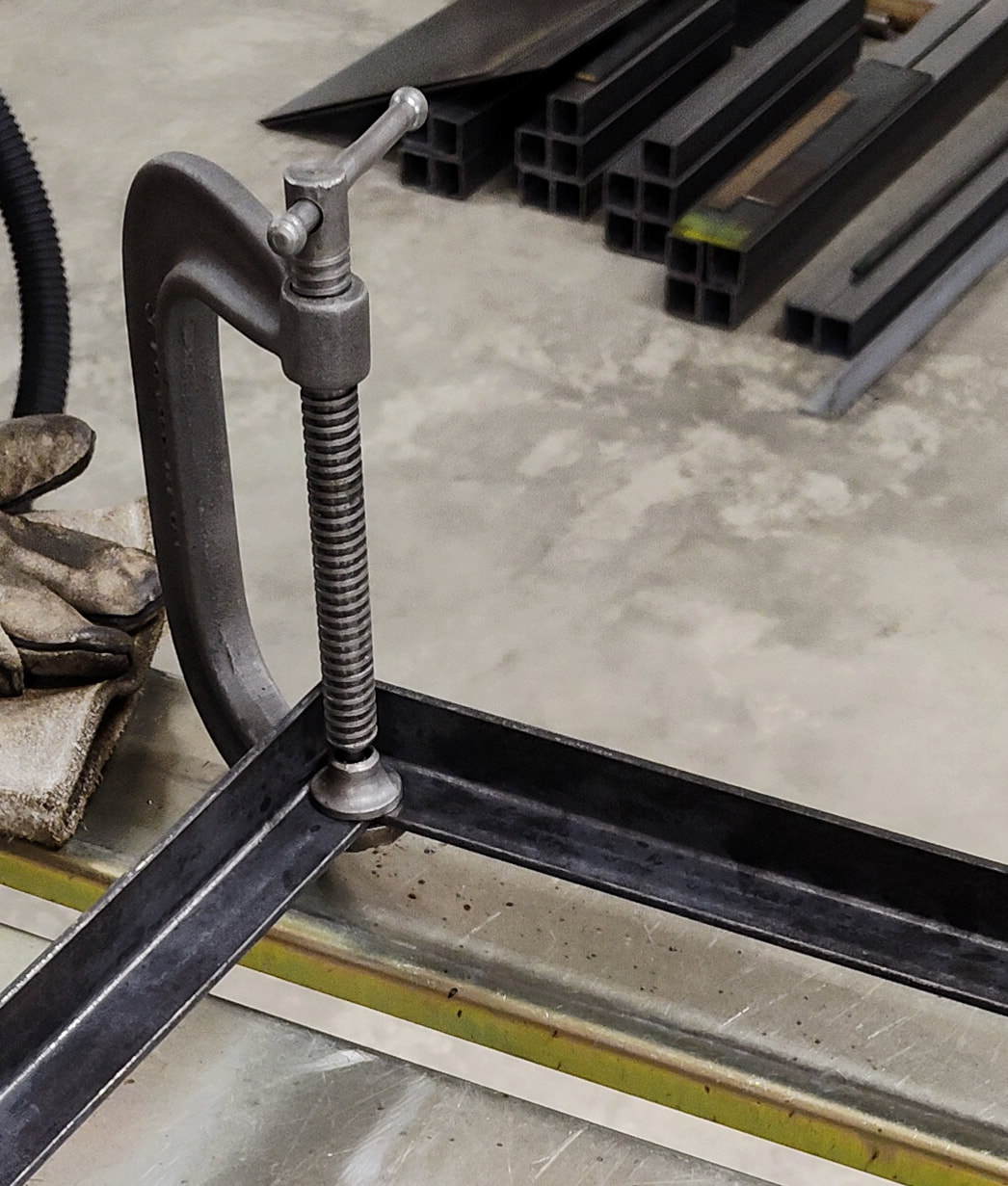

I began the welding phase by fabricating the angle-iron frame. To ensure squareness, I clamped perpendicular mating pieces flat at each corner using 4-inch C-clamps. Using 0.035-inch ER70S-6 MIG wire and a C25 shielding gas blend, I ran downhill welds along the exterior corners, then flipped the frame to weld the underside of each joint for full penetration. Afterward, I ground the welds flush using an angle grinder with an 80-grit flap disc and finished the exterior corners with a hand file to achieve clean, consistent radii.

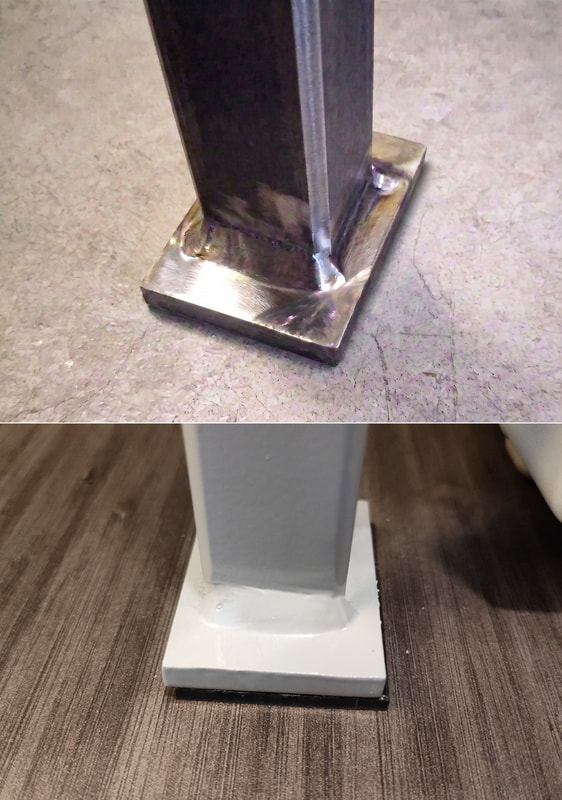

Next, I fillet welded the front and rear of each foot to the four uprights. Because the frame was destined for powder coating, I experimented with grinding the weld ripples flush using a sanding disc to create a seamless transition between the components. Although a faint crater remains visible under the finish, the final result turned out clean post-powder coat. While initially a bit crude, I've since refined this technique to remove minimal base metal, and now use it routinely for visible joints where the slight reduction in throat thickness doesn't affect structural integrity.

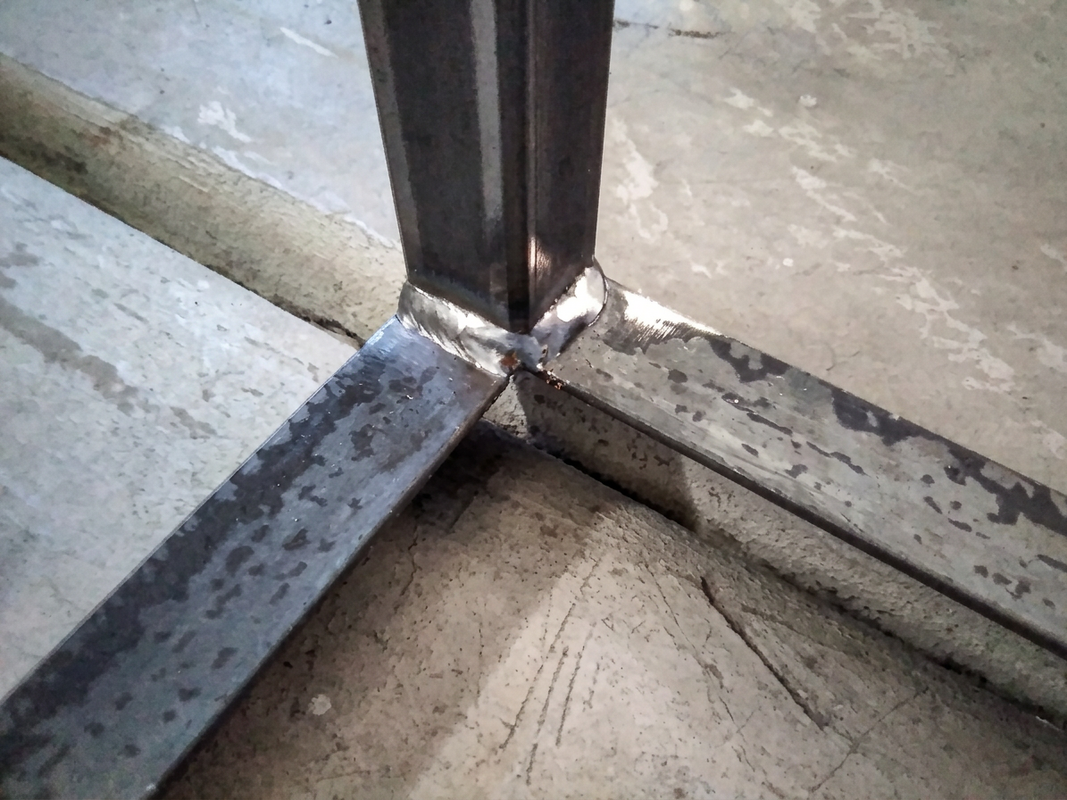

Next, I welded the uprights to the frame. To ensure proper alignment, I used two temporary 1/4" x 1" flat bar strips clamped across the joints to create a locating "corner pocket," holding the mating faces flush while I tack-welded the inside corners. After verifying perpendicularity with a framing square and adjusting as needed, I welded the primary faces first to minimize distortion. The internal radius of the angle iron naturally complemented the bevel ground on the uprights, allowing for full joint penetration and flush grinding without compromising strength. I then completed the structural fillets.

Although I initially considered grinding these welds to a triangular throat like the feet, I decided against it since they are largely hidden from view in normal use. While running a slightly higher voltage would have flattened the profile, the welds achieved excellent penetration and look good for the application.

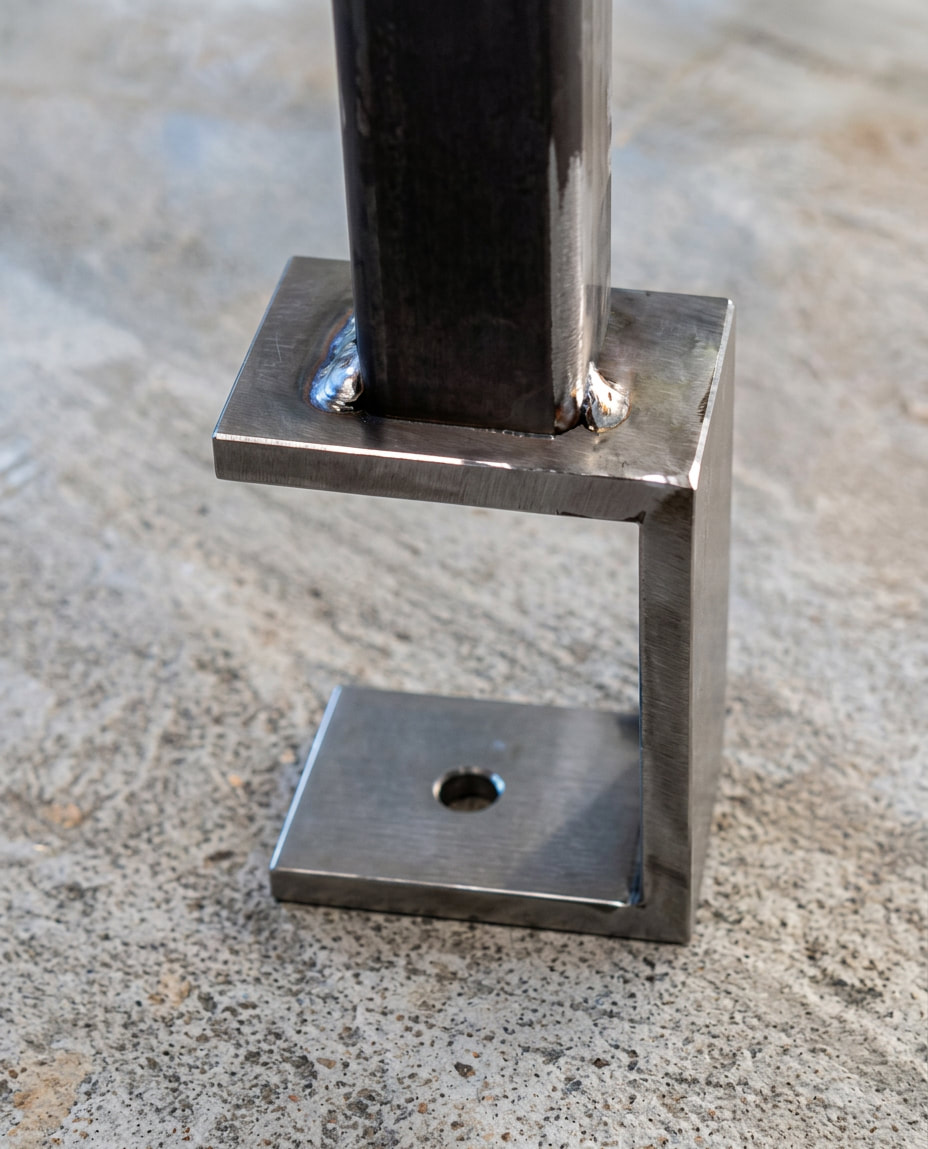

The final welding task was fabricating the C-shaped clamp brackets from the remaining flat bar, which included the tapped holes for the clamping mechanism. My original design called for bending a piece of 1/8-inch flat bar into an angle bracket and welding it to a tapped 1/4-inch plate. However, lacking a reliable way to make a clean bend in heavy steel, I pivoted during fabrication. Instead, I constructed the component using three separate pieces of 1.5-inch wide, 1/4-inch flat bar, beveling and welding the exterior corners to form a rigid, interlocking C-shape designed to hook securely over the back edge of the desk. I then finished the rear upright to C-shape fillet weld (shown tacked).

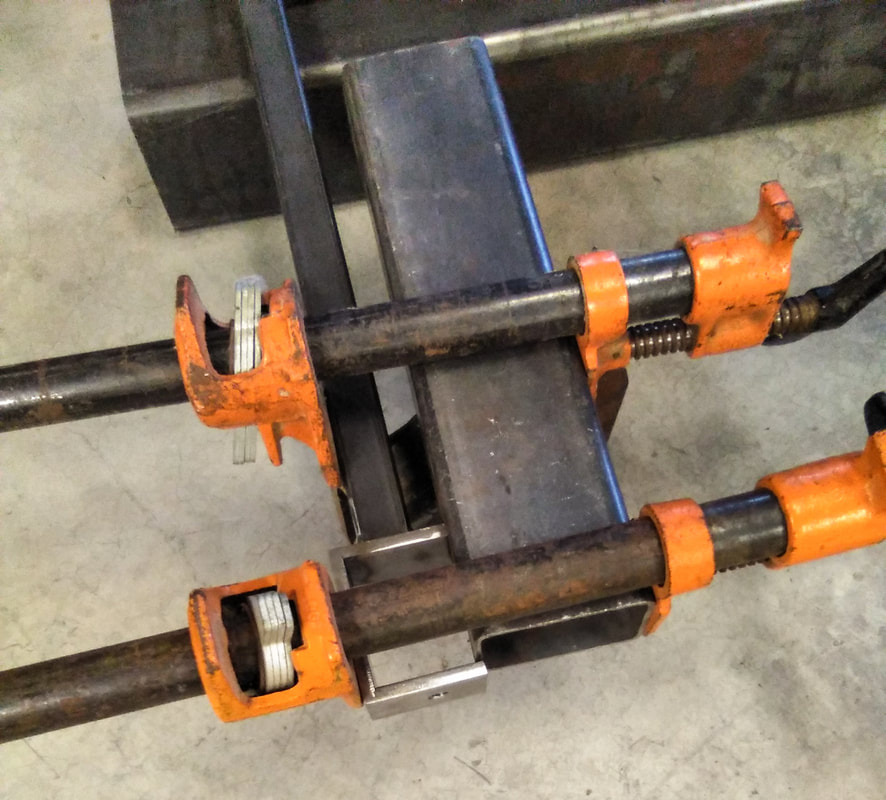

Welding the C-shape from three individual pieces came with a catch: because I beveled and welded the exterior corners to avoid interference between the weld bead and the desk edge, cooling shrinkage pulled the assembly out of alignment. Fixing the warped geometry required some creative fixturing and heavy torque with 3/4-inch pipe clamps to muscle everything back into true alignment. Fortunately, the adjustment was a complete success.

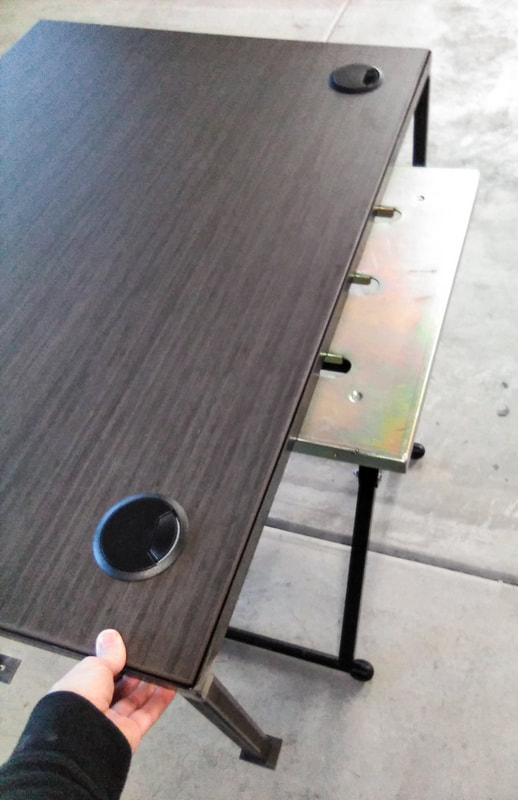

Because my office already featured Uplift Desk laminate surfaces, I designed the frame to fit a matching 42-inch wide desktop. However, to leave adequate workspace in front of the raised platform, I needed the shelf depth to be 19 inches—shallower than the standard 30-inch desktop. After consulting a woodworker friend, I ordered a 42" x 30" top from Uplift, brought it and the welded frame to a local cabinet shop, and had them trim the depth and re-apply the edge banding to the back. The final result looks exceptional; from above, the custom shelf surface looks like a factory-manufactured component.

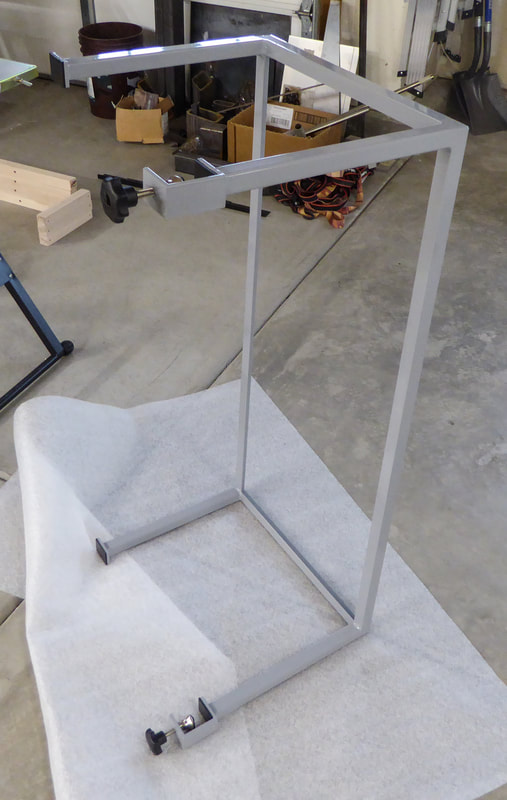

Here is the finished frame, fully fabricated and ready for powder coating. To ensure a seamless aesthetic match with my existing furniture, I contacted Uplift Desk to obtain the exact RAL color code, which they gladly provided. I then reached out to a trusted powder coater in Sacramento, CA that I had worked with previously and dropped off the completed frame for finishing.

With the frame powder-coating complete, I cut self-adhesive rubber strips sourced from McMaster-Carr and applied them to the underside of the feet to protect the desk surface. After threading the clamping hardware into place, the custom shelf was fully assembled and ready for installation.

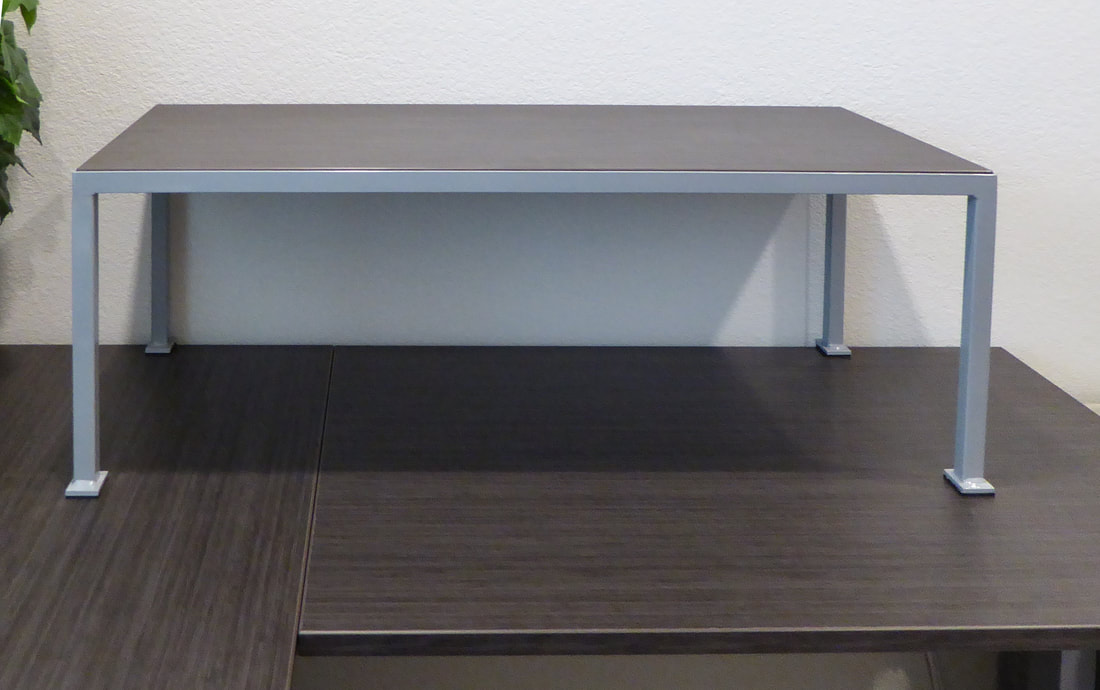

The completed shelf. It turned out looking exceptional and achieved a flawless visual and functional match with my existing office furniture.

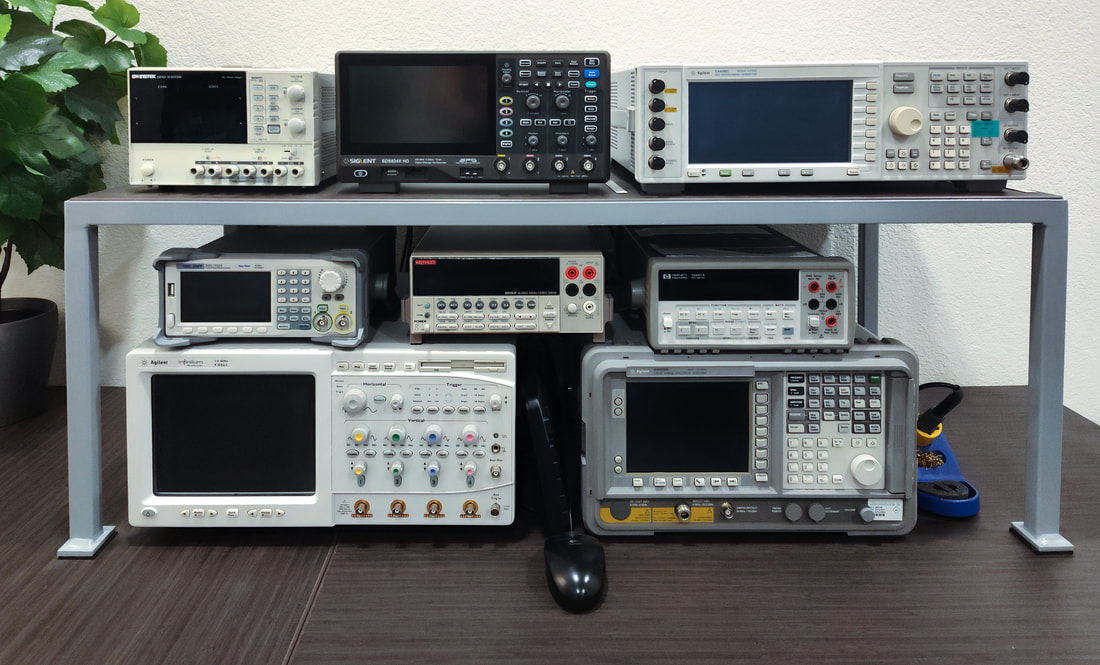

The finished product, fully loaded and operational with test equipment in place.
