Taming the Noise: An Adventure in Active Analog Design (V2)
In my previous post, FCC Compliance on a Shoestring: A Foray into PCB Design, I described the process of building my first custom device to help a local high-school LPFM radio station transition from analog to digital broadcasting. Once the initial prototype was live, my friend returned with an additional request: could I add mixing functionality so they could broadcast live voice announcements—such as standard Emergency Broadcast System test messages—simultaneously across all four digital channels?
I happily agreed, but digging into the implementation quickly turned into a masterclass in professional audio engineering. I had to rapidly get up to speed on the critical differences between consumer and professional voltage levels (+4 dBu vs. -10 dBV), the mechanics of impedance-balanced inputs and outputs, and the vital role of isolation and grounding in eliminating noise. Because any hum or interference is completely unacceptable in a broadcast environment, I set out to design a robust, active analog system that would deliver crystal-clear audio and seamlessly handle the new mixing requirements.
I happily agreed, but digging into the implementation quickly turned into a masterclass in professional audio engineering. I had to rapidly get up to speed on the critical differences between consumer and professional voltage levels (+4 dBu vs. -10 dBV), the mechanics of impedance-balanced inputs and outputs, and the vital role of isolation and grounding in eliminating noise. Because any hum or interference is completely unacceptable in a broadcast environment, I set out to design a robust, active analog system that would deliver crystal-clear audio and seamlessly handle the new mixing requirements.
|

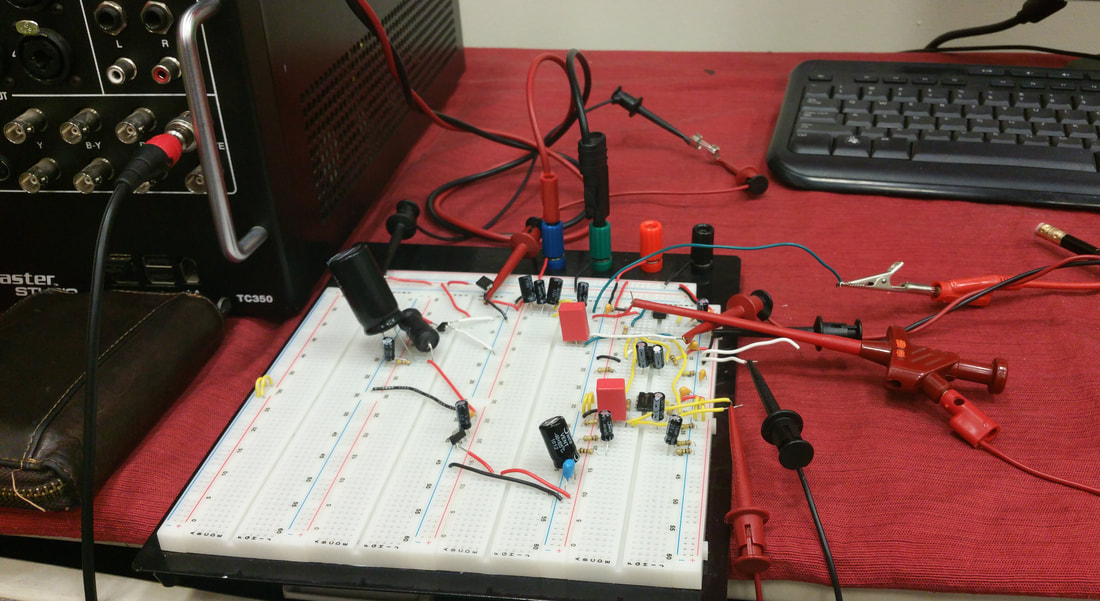

I kicked off the project by refreshing my fundamentals on op-amp configurations, diving into the physics of audio transformers, and performing frequency analyses to understand how to preserve signal integrity. My initial design concept was to use transformer isolation at the inputs and mix the audio signals passively by placing the transformer secondaries in series. While I was still navigating the nuances of audio electronics and impedance matching at the time, I moved quickly into physical prototyping. By testing various circuit configurations directly at the radio station, I successfully validated a working signal path using a transformer-coupled input stage, an active op-amp buffer stage, and a balanced output driver.
|
|
With the bench circuits validated, I quickly transitioned to designing a prototype board—this time outsourcing fabrication to JLCPCB to leverage their cost-effective, rapid-turnaround manufacturing. Once the boards arrived, I assembled the first prototype and focused on power supply filtering. Although I was still calibrating exactly how much attenuation was necessary, I took a practical engineering approach: I chose the external power supply I intended to use and designed a robust low-pass filter to aggressively suppress any ripple down below 60Hz. This was particularly important because, as I observed on the oscilloscope, the high-electromagnetic-interference environment of the station made it easy for even a scope probe to pick up stray 60Hz mains hum.
|
|

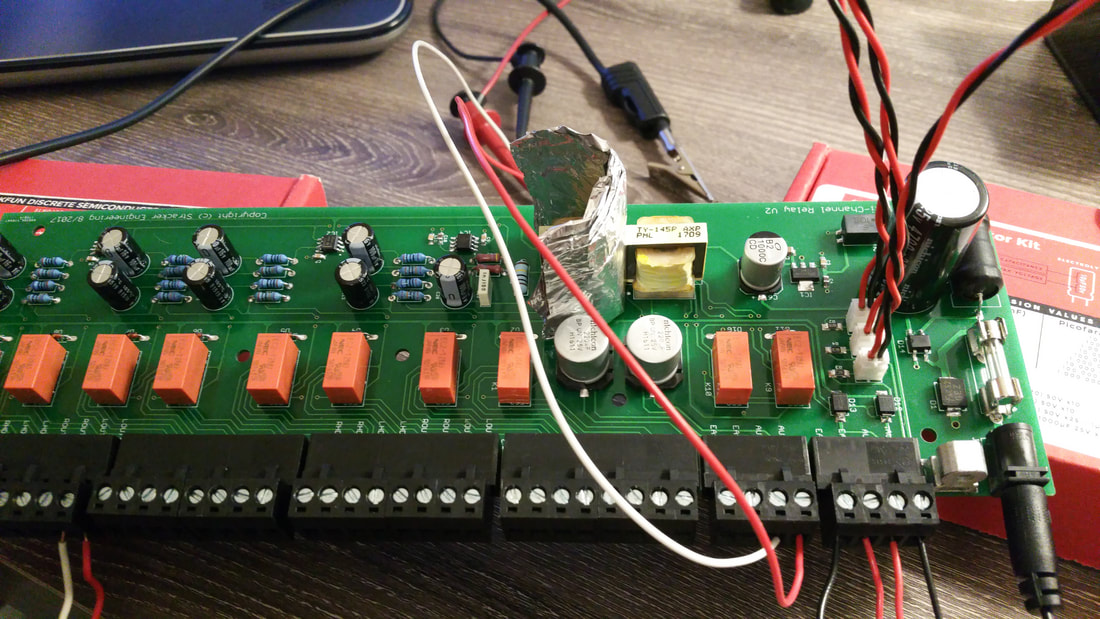

Upon testing the first prototype, I immediately uncovered two major design challenges. The first was inductive crosstalk: the close physical proximity of the audio transformers caused signals to bleed between the input channels, even when only one channel was actively driven. To diagnose this, I experimented with localized shielding to see if I could mitigate the coupling. While commercial magnetic shielding cans were available, their high unit cost conflicted with my long-term goal of keeping the Bill of Materials (BOM) low for eventual commercial viability. Ultimately, the most practical, elegant, and low-cost solution was to redesign the PCB layout to maximize the physical separation between the transformers.
|
|

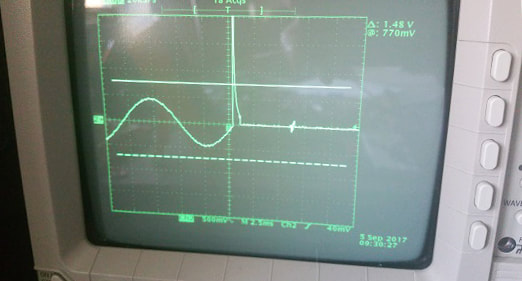

The second major hurdle was transient switching noise: an audible "pop" induced by inductive kickback from the transformer when switching channels. I was able to capture and analyze this spike directly on the oscilloscope. While I successfully mitigated the worst of this noise by tuning the schematic with snubbing passives, resolving it entirely required a fundamental architectural rethink—which I logged as a primary goal for a future revision. However, because the station was on a tight timeline and the optimized prototype was now performing reliably, I deployed this transformer-based design to get them up and running without further delay.
|
|

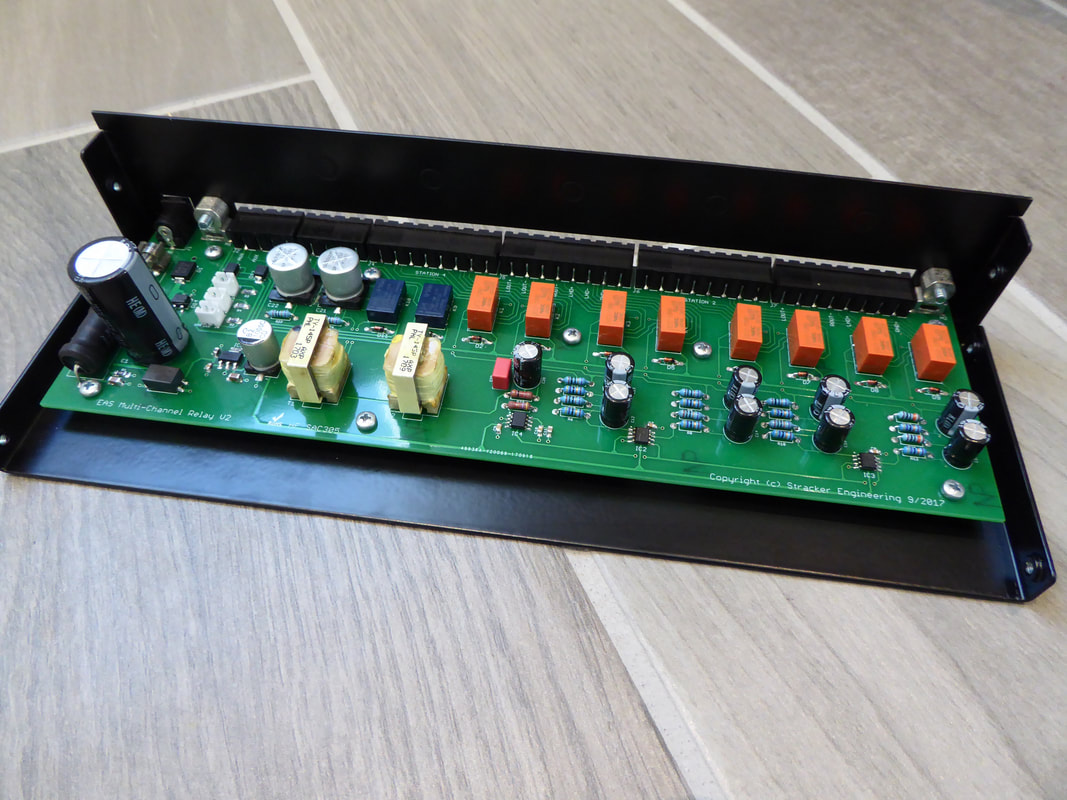

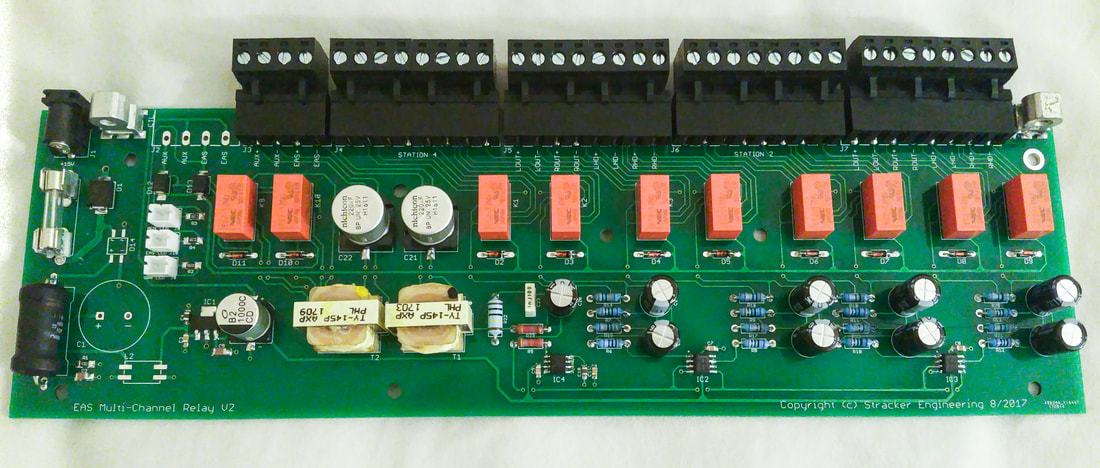

This image shows the updated prototype in active service at the radio station, featuring the increased transformer spacing to eliminate crosstalk. Throughout this development cycle, I continuously consulted with former colleagues and actively engaged with engineering web forums to troubleshoot the trickier analog quirks. Doing this in the pre-AI era required deep-dive research and community collaboration. Ultimately, the prototype was fully completed and deployed within just a couple of months—a rapid timeline that I attribute to my years of tracing complex circuits and analyzing analog I/O data acquisition devices alongside my former colleagues.
|
|
The next stage of the project was the mechanical enclosure. To optimize production costs without sacrificing quality, I conducted global outreach—contacting 30 to 40 prototype manufacturers worldwide to evaluate their pricing, tolerances, and capabilities. Ultimately, I partnered with a fabrication house in China that offered exceptional value.
Drawing on my prior experience with offshore manufacturing, I knew that quality control (QC) can be a significant hurdle when working with low-cost prototype shops. To mitigate this risk, I was extremely meticulous in my engineering documentation, detailing every single manufacturing specification, tolerance, and process sequence. I left nothing to assumption, as standard industry practices can easily be overlooked in budget-driven fabrication. Although the initial run presented minor challenges with the acid-wash/powder-coating process and some slight silkscreen registration issues, we collaborated closely to resolve them. This successful troubleshooting not only perfected the enclosure but also established this vendor as my trusted partner for machining and custom parts for years to follow. |
|

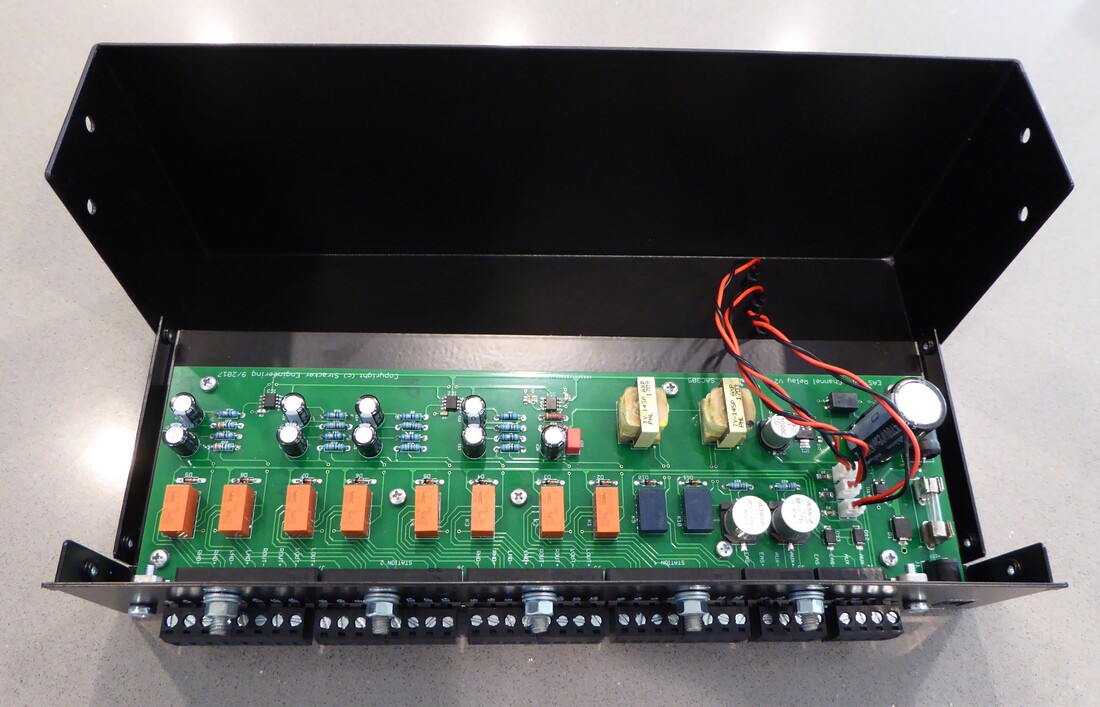

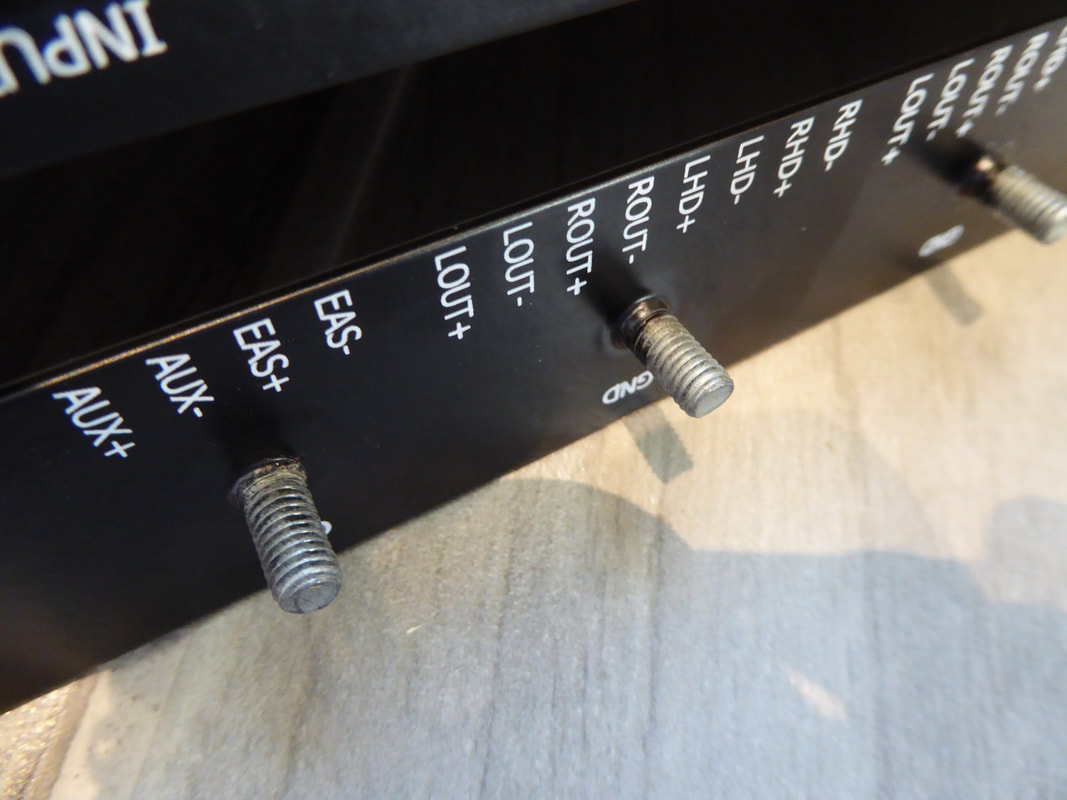

One of the mechanical details I liked in this design was the integration of PennEngineering (PEM) right-angle self-clinching fasteners. These 90-degree board mounts securely anchored the PCB to the chassis, providing critical strain relief when field wiring was attached to the terminal blocks.
On the electrical side, the grounding scheme was carefully planned around noise mitigation. To prevent ground loops, I designed the PCB with a single-point chassis ground through a designated mounting screw. Because this early prototype did not yet feature active RF or ESD filtering, keeping the grounding architecture completely isolated from stray loop currents was essential for maintaining a clean noise floor. |
|

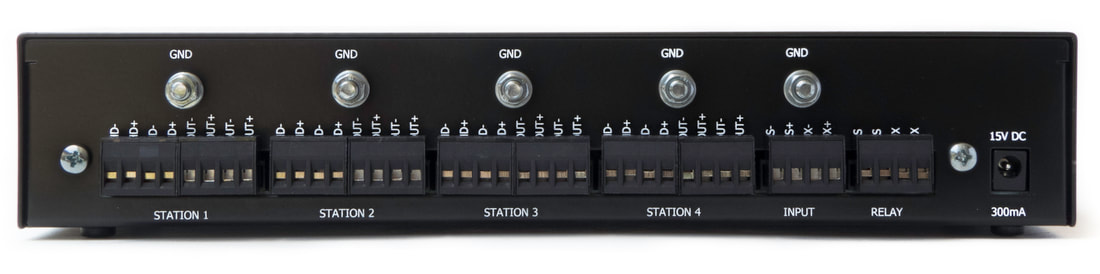

The Finished Interface: Rear Panel & Field Wiring
The resulting rear panel layout offered a clean, rugged interface for the station's rack setup. The barrier terminal blocks, coupled with the integrated PEM strain-relief mounts, provided a highly secure and durable termination point for all incoming and outgoing audio lines. |
|

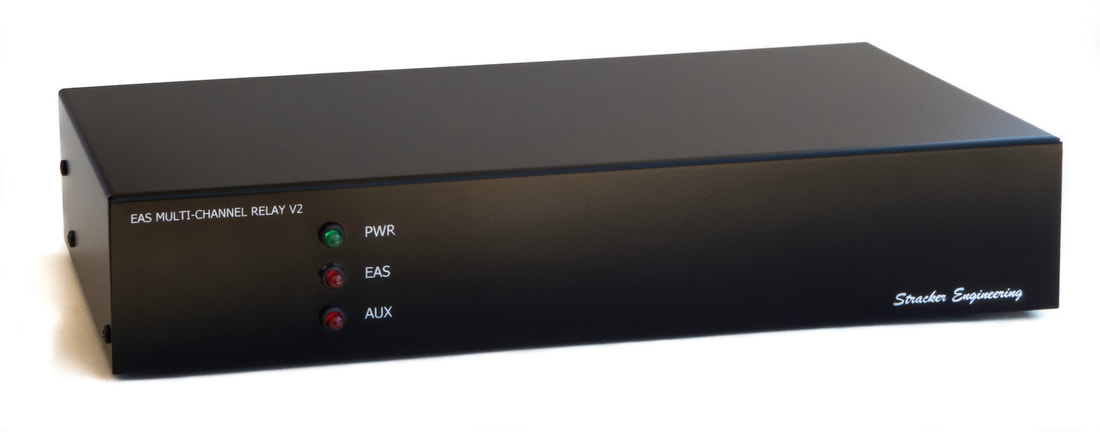

Ready for the Rack: Front Panel & Final Deployment
With the active mixing circuitry, custom-sheet metal enclosure, and professional branding elements successfully integrated, the completed device was ready for its destination. This front-facing view shows the final, polished unit right before it was mounted into the LPFM station’s rack, where it has since provided reliable, continuous service. |
