Turning a Standard Toaster Oven into a Precision SMD Reflow System.
Around the time I was deep into prototyping the EAS multi-channel relay boards and exploring custom electronics design, I hit a roadblock: prototype assembly speed. While working with a trusty Hakko iron had allowed me to develop clean hand-soldering and rework techniques, manually placing and soldering dense layouts of surface-mount devices (SMDs) was relatively time-consuming. I wanted to transition to the reflow process, but as an independent engineer working on a budget, a commercial-grade reflow oven wasn't a practical option.
That challenge kicked off another engineering deep dive. I discovered the Controleo3, an open-source, Arduino Zero-based reflow oven controller designed to convert standard consumer toaster ovens into high-precision, closed-loop reflow systems. Recognizing the perfect chance to build a highly capable tool for my bench while learning the physical nuances of the reflow process, I decided to pull the trigger and build my own.
That challenge kicked off another engineering deep dive. I discovered the Controleo3, an open-source, Arduino Zero-based reflow oven controller designed to convert standard consumer toaster ovens into high-precision, closed-loop reflow systems. Recognizing the perfect chance to build a highly capable tool for my bench while learning the physical nuances of the reflow process, I decided to pull the trigger and build my own.
|

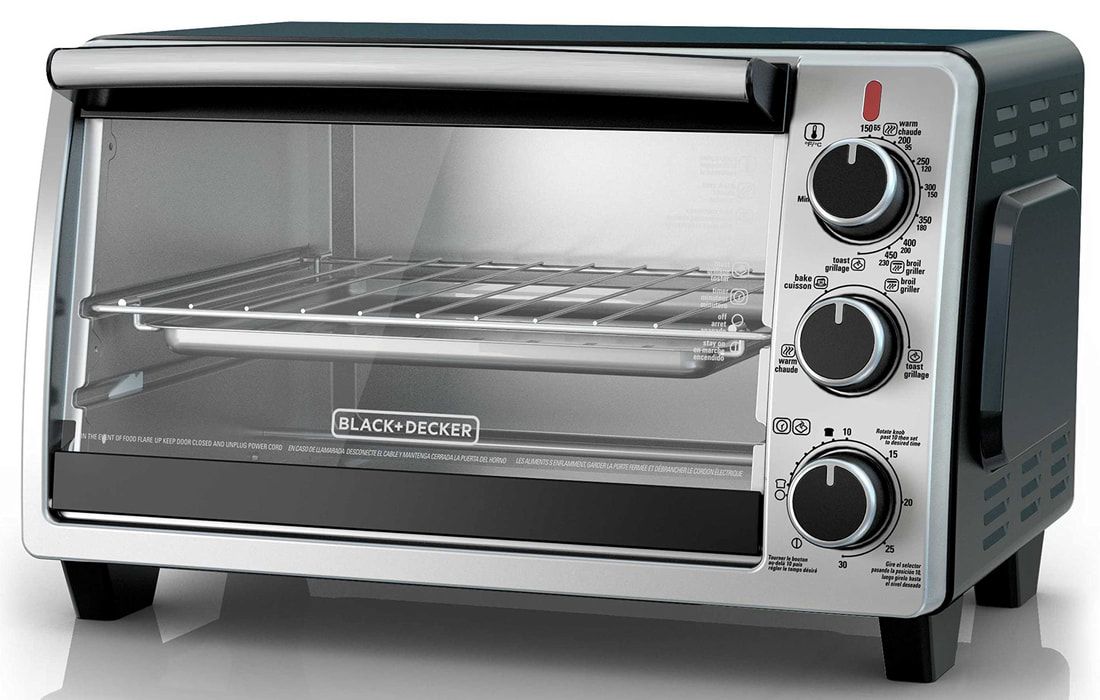

The first order of business was sourcing a suitable toaster oven to serve as the reflow chamber. It needed to meet a few strict criteria: a clean, professional aesthetic fitting for a lab workbench, adequate internal volume for multi-board batches, and a built-in convection fan. The convection fan was particularly critical, as active airflow is essential to eliminate localized hot spots and ensure uniform heat distribution across the PCB during the ramp and soak phases. After scanning eBay, I sourced a Black & Decker countertop convection oven that checked all the boxes at a reasonable price point.
|
|

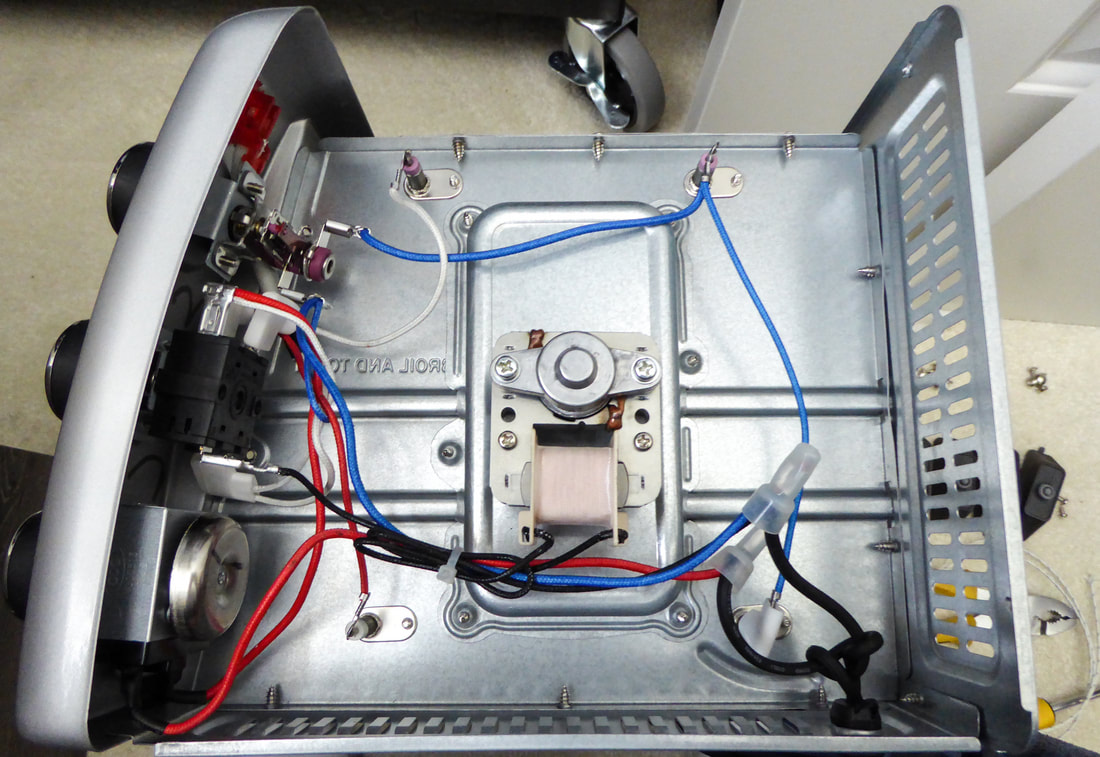

Once the oven arrived, I stripped off the outer chassis to perform baseline resistance and current measurements of the heating elements and the overall system draw. The appliance utilized four quartz heating elements—two top elements in series and two bottom elements in series. Each element measured between 11Ω and 11.5Ω, yielding an initial total thermal output of approximately 1295W at 120V.
To hit the thermal ramp rates required by lead-free solder profiles, I wanted to maximize the oven's heat input while ensuring it could safely run on a standard 120V, 20A residential or office branch circuit. Applying the standard 80% continuous-load derating rule for a 20A circuit gave a maximum safe power threshold: Pmax = 120V x 20A x 0.80 = 1920W With the baseline oven drawing 1295W, I had nearly 625W of power headroom. This left plenty of capacity to integrate an additional heating element, auxiliary convection fan, a 5V AC-DC logic power supply, and a servo motor for the automated door-opening mechanism. |
|
The Controleo3 controller features a dedicated digital output designed to drive a "boost heater." This auxiliary element kicks in to inject extra thermal energy during demanding phases of the profile, operating at a lower duty cycle to prevent overshooting the target temperature curve.

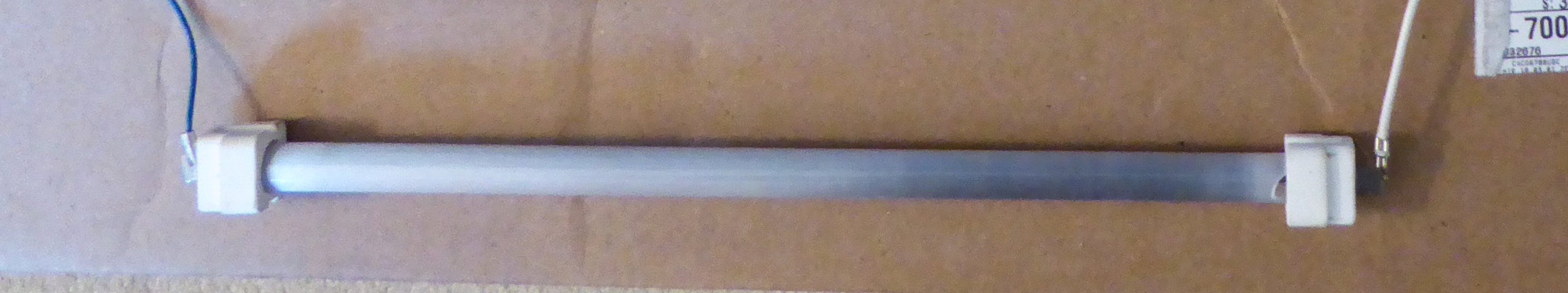

To source a compatible element, I scavenged a donor toaster oven from a local office on Craigslist. After stripping down the donor unit, I harvested its two resistive heating elements and measured their electrical characteristics. By selecting the element with the lowest resistance (26.7Ω, drawing roughly 540W at 120V), I was able to safely push the modified oven's peak thermal output to a grand total of 1835W. This maximized the thermal ramp capability while remaining comfortably under my 1920W (20A derated) safety ceiling. |
|
A former electrical engineering colleague of mine in Berlin always used to say: "Always start with a schematic."

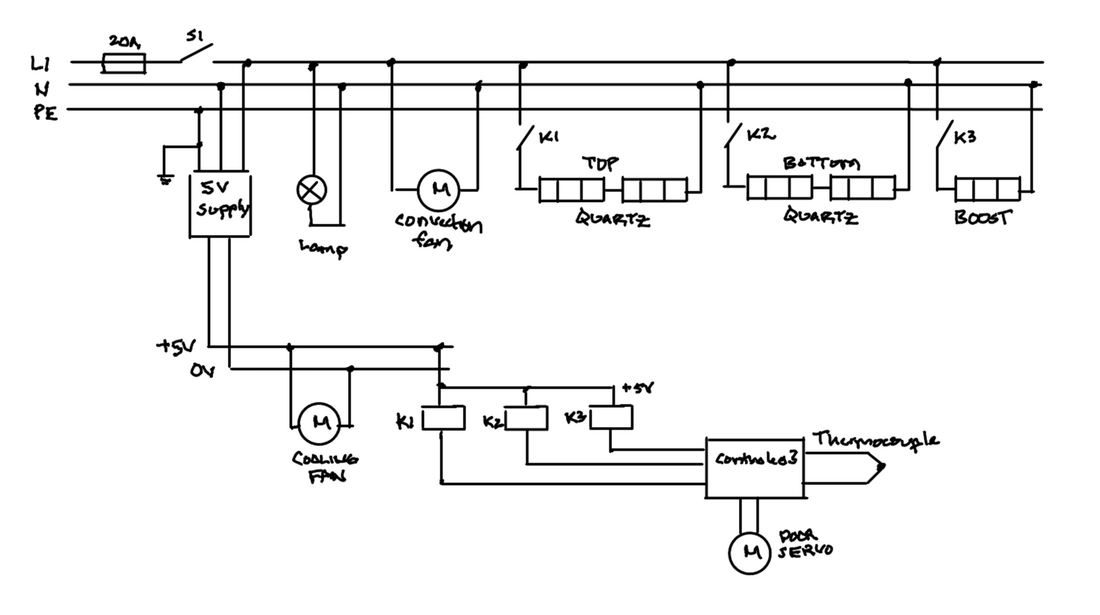

Taking that advice to heart, my next step was to map out the electrical circuitry. Having recently returned from Germany, I sketched a rough IEC-style schematic to plan the power distribution, solid-state relay (SSR) switching, and microcontroller IO. With the design locked in, I put together the bill of materials (BOM) and sourced the components and hardware from DigiKey and McMaster-Carr. |
|

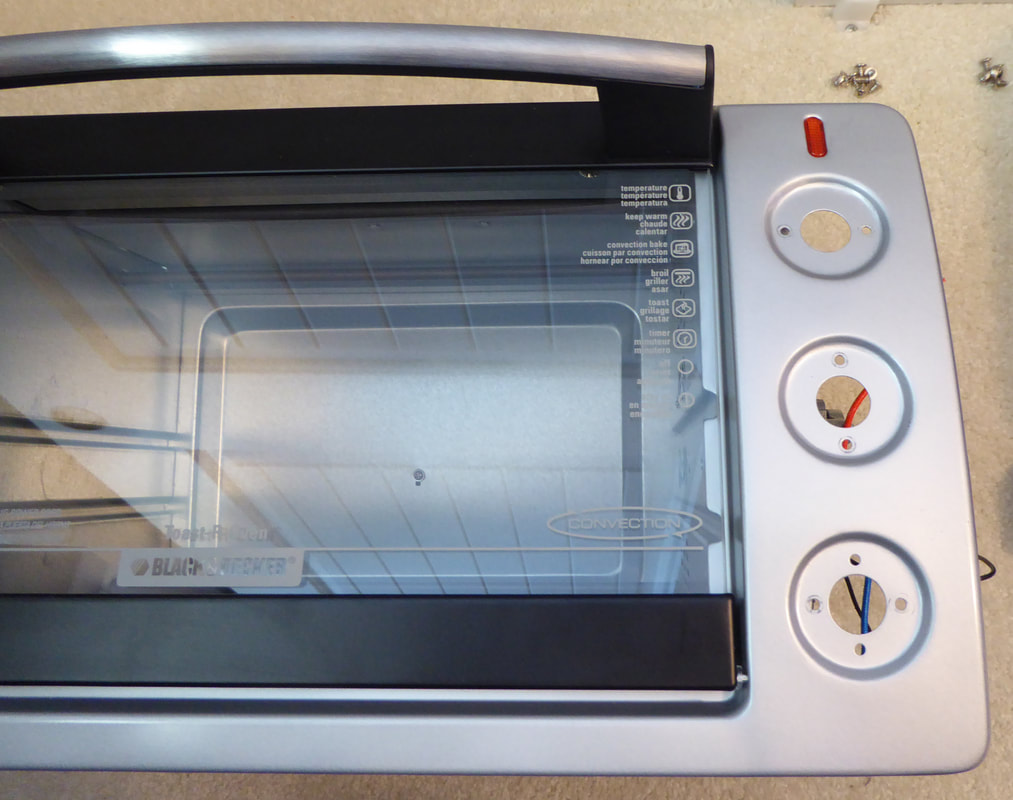

Next, I began the physical teardown and cosmetic modification of the enclosure. The first step was removing the analog control knobs from the front bezel. To give the oven a clean, modern aesthetic suitable for a professional lab environment, I needed to erase the original screen-printed text and temperature graphics located behind the knobs. I carefully treated the front bezel with acetone and a lint-free wipe; because the bezel material was solvent-resistant, the solvent stripped the factory graphics cleanly without clouding or damaging the finish.
|
|

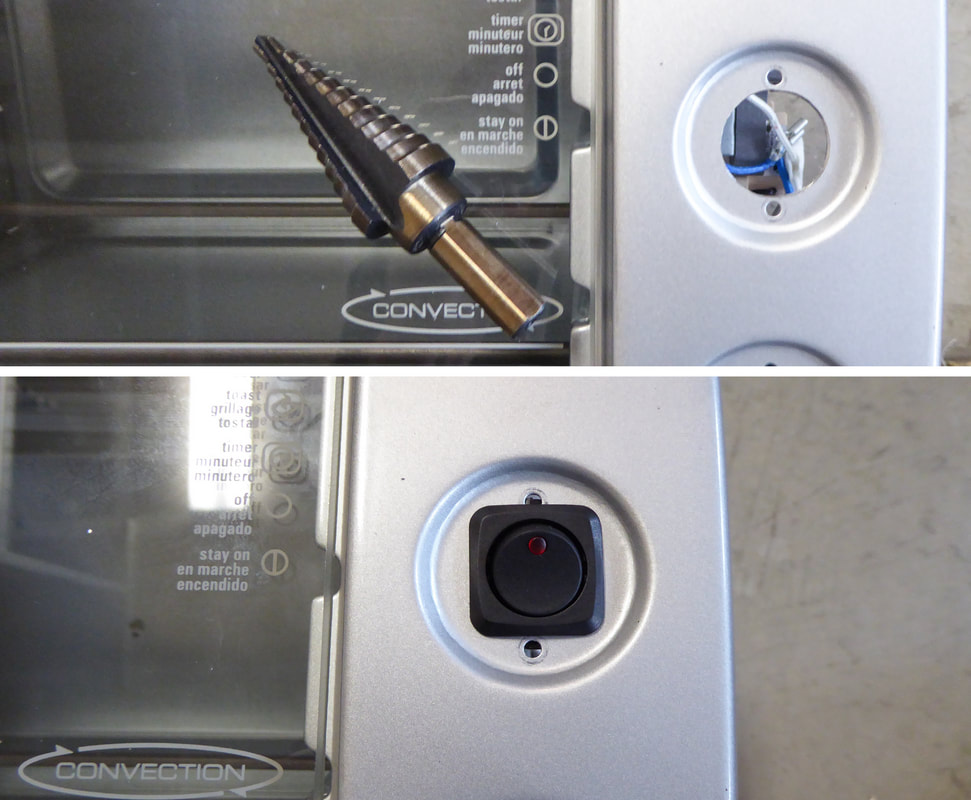

With the bezel cleared of graphics, I transitioned to structural modifications for the primary user controls. I used a step drill bit to cleanly enlarge the center knob hole, expanding the diameter to match the mounting specifications of a heavy-duty rocker switch. This main power switch serves as the system's primary physical disconnect. I opted for a component equipped with an integrated LED indicator, providing a visual confirmation of the AC mains power status whenever the system is energized.
|
|

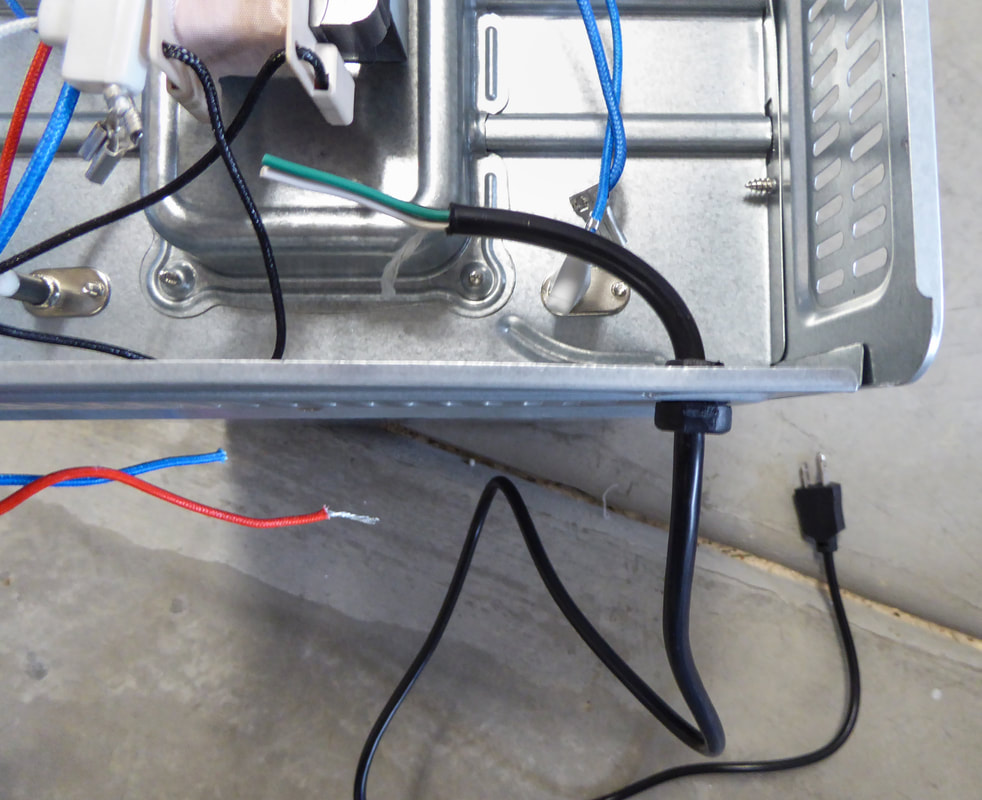

During the teardown, a surprising safety oversight came to light: the OEM power cord lacked a chassis ground conductor. Given the high-wattage resistive load and the conductive metal chassis, a proper safety ground was non-negotiable. I replaced the factory cord with a heavy-duty, three-conductor 14 AWG cable salvaged from a high-quality appliance. After cutting off the IEC C13 connector, I prepped the jacket and conductors to serve as the new mains input cable, ensuring the modified oven could safely handle the increased current draw while establishing a dedicated path to earth ground.
|
|

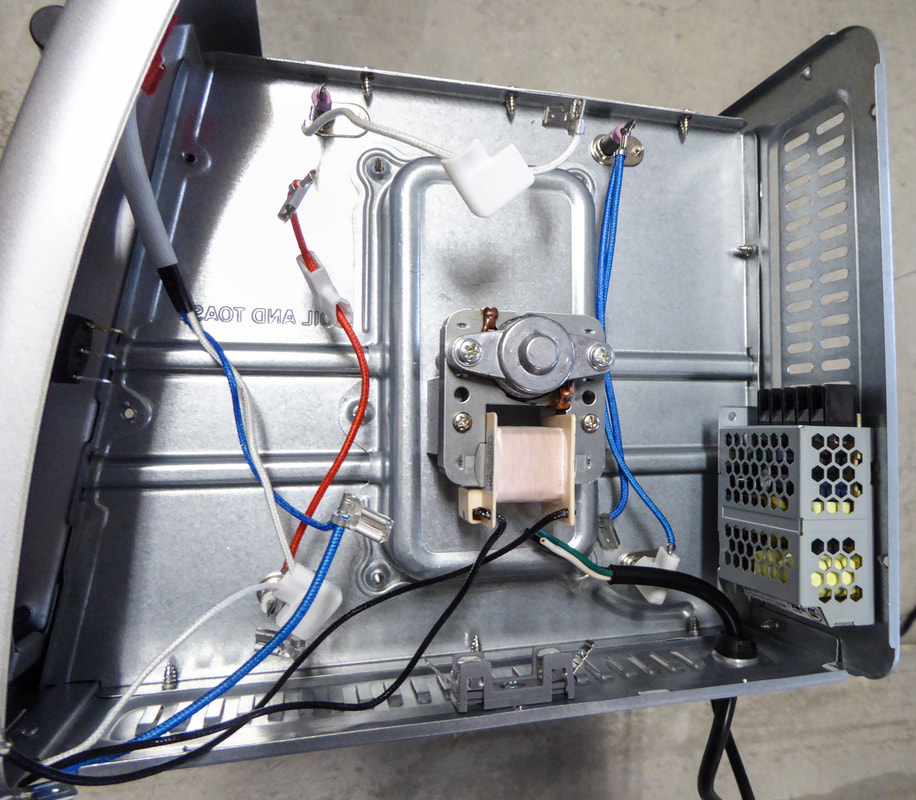

Next, I focused on power distribution and the low-voltage power supply. I integrated a chassis-mount fuse holder into the frame, loading it with a 20A fast-blow ceramic fuse to provide rapid overcurrent and short-circuit protection for the upgraded system. To power the Controleo3 controller, the auxiliary cooling fan, and the solid-state relays (SSRs) circuitry for the heating element, I integrated a compact 15W, 5VDC AC-DC converter. Utilizing the existing ventilation slots on the rear of the chassis, I securely mounted the converter enclosure, ensuring adequate ambient airflow for the power supply while avoiding the need to drill additional mounting holes into the structural frame.
|
|

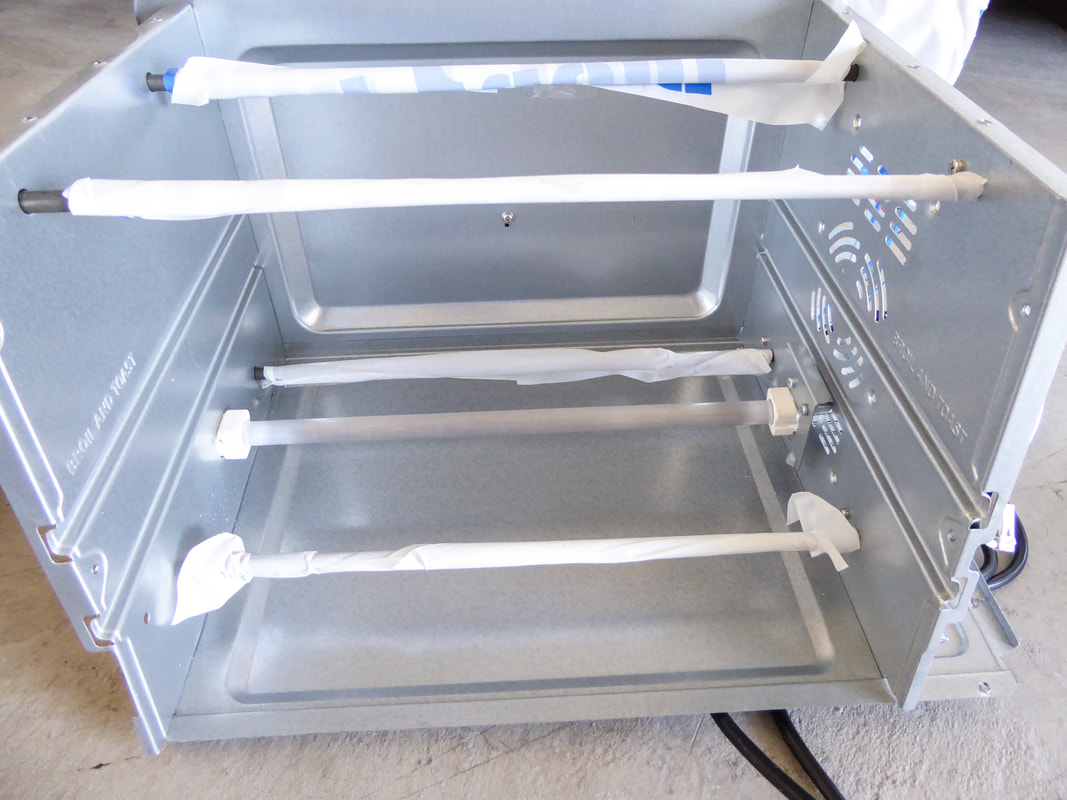

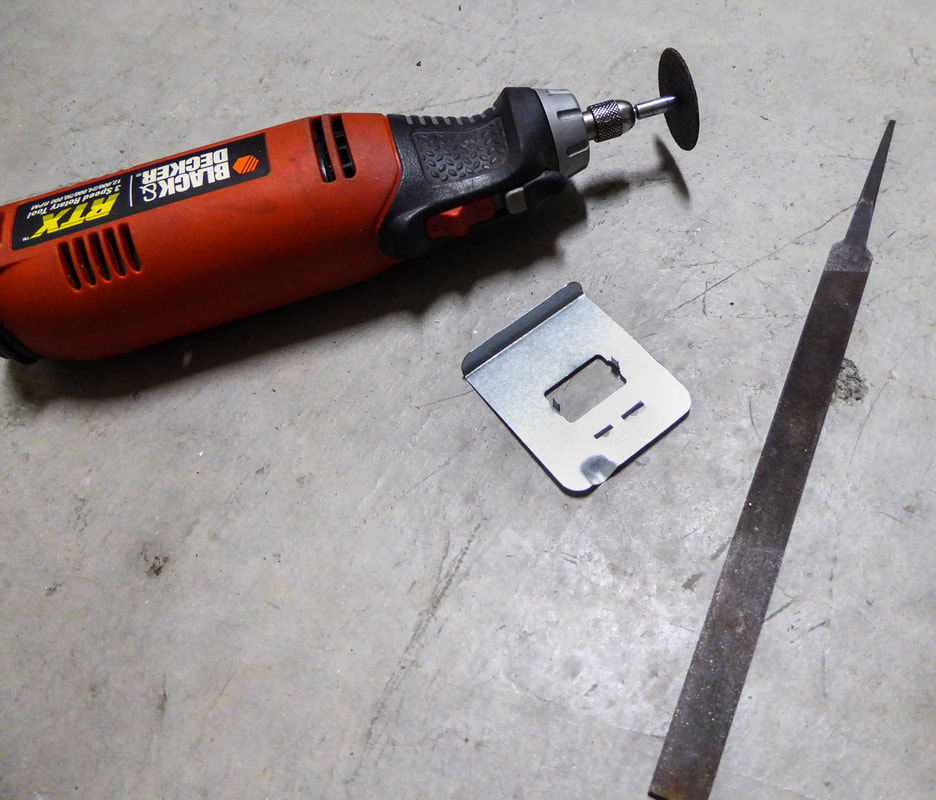

Integrating the auxiliary boost element required consideration of the existing elements' thermal characteristics. The Controleo3 build documentation recommends positioning the highest-output elements at the bottom of the chamber to mitigate localized hot spots on the top surfaces of the PCB components, so I followed this layout strategy. To create a custom mounting bracket that matched the element's geometry, I used a rotary tool with a reinforced cutoff wheel to harvest a section of sheet metal containing the original mounting slots from the donor oven chassis. Because the freshly cut edges were razor-sharp—a fact reinforced by a minor workshop injury during handling—I carefully radiused and deburred all perimeter edges with a hand file before final installation.
|
|

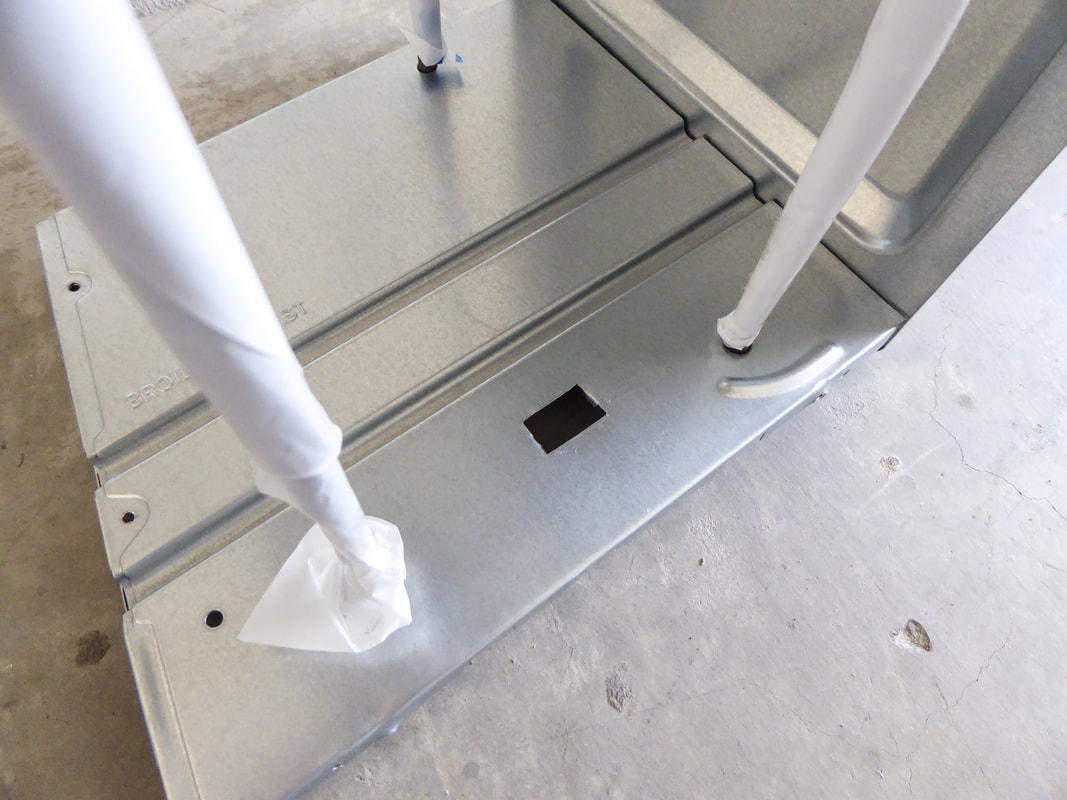

With the custom bracket fabricated, I turned my attention to the opposite wall of the oven cavity to secure the other end of the element. Using a rotary tool, I cut a slot into the internal sheet metal, matching the profile of the heating element's terminal end. This allowed the element to slip securely into place, ensuring a rigid, rattle-free mounting alignment that would accommodate thermal expansion during temperature cycling.
|
|
To complete the physical integration, I had to account for a length discrepancy: the donor boost element was slightly shorter than the oven's native heating elements. To bridge this gap and keep the element centered, I drilled mounting holes through both the custom bracket and the internal chassis wall, then mated them using threaded hex standoffs as spacers. With the axial offset resolved and the bracket locked in place, the auxiliary boost heater was final-fit and secured into its new bottom-chamber position.
|
|

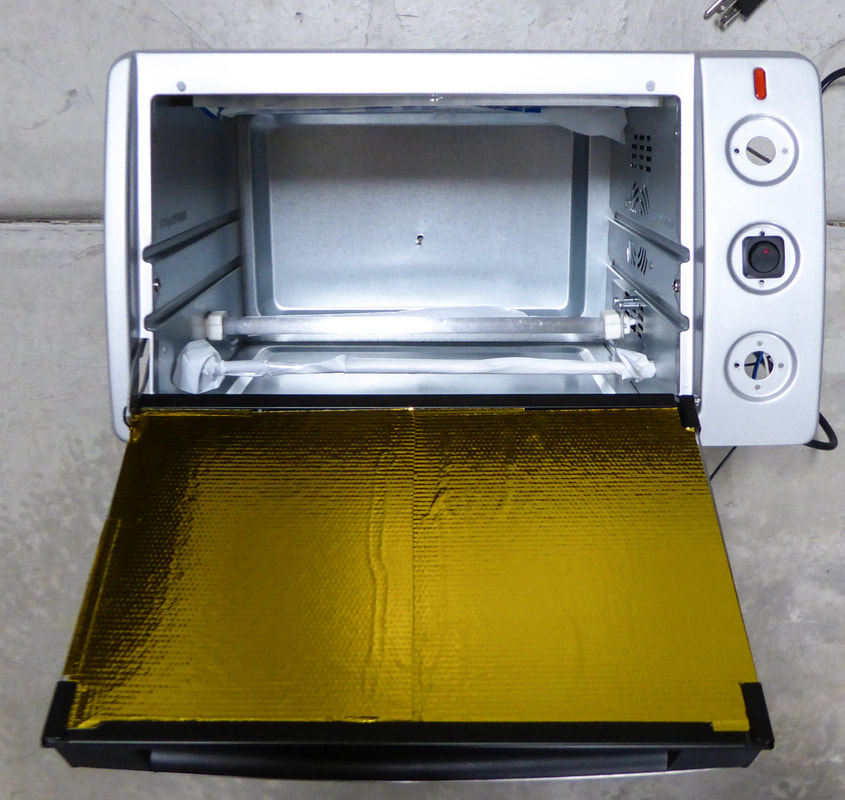

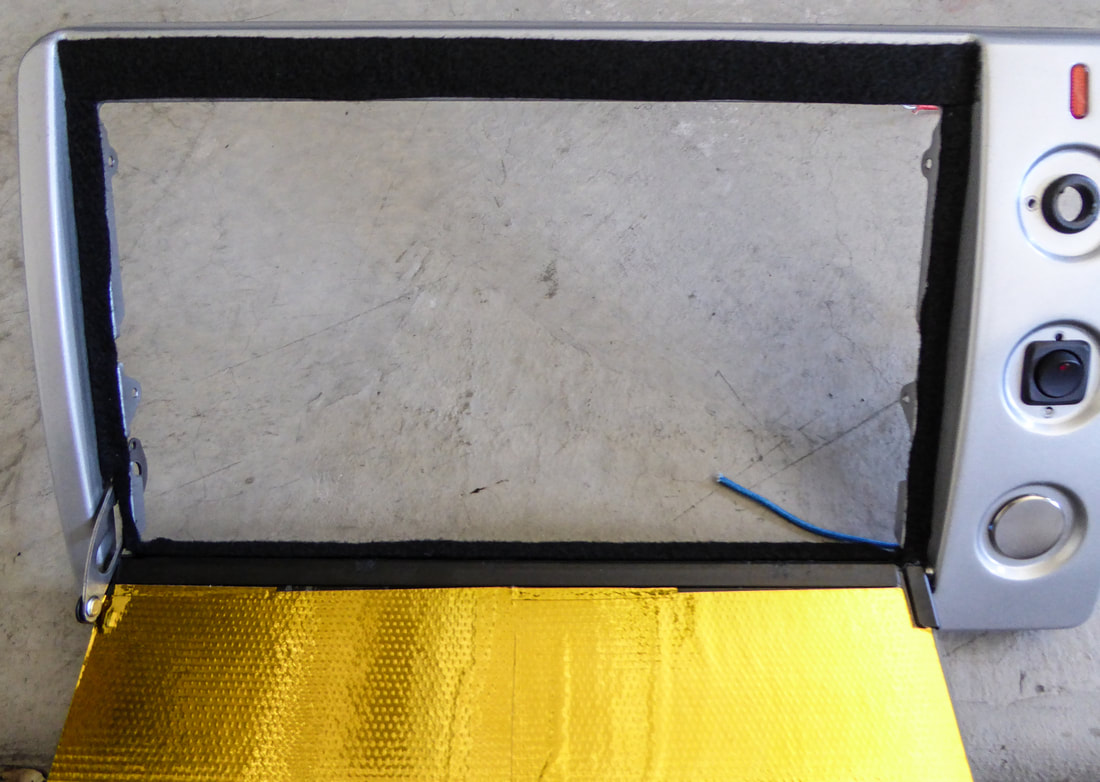

To minimize radiated heat loss and maximize the oven's internal thermal efficiency, I treated the large glass door—typically the most significant heat loss surface in a standard toaster oven. I covered the interior perimeter of the glass with DEI Engineering's Reflect-A-Gold, a highly effective, aerospace-grade adhesive thermal barrier. This high-temperature reflective shielding's purpose was to keep the infrared energy focused inside the chamber, accelerating ramp rates and reducing the duty cycle required by the heating elements to maintain the reflow profile.
|
|

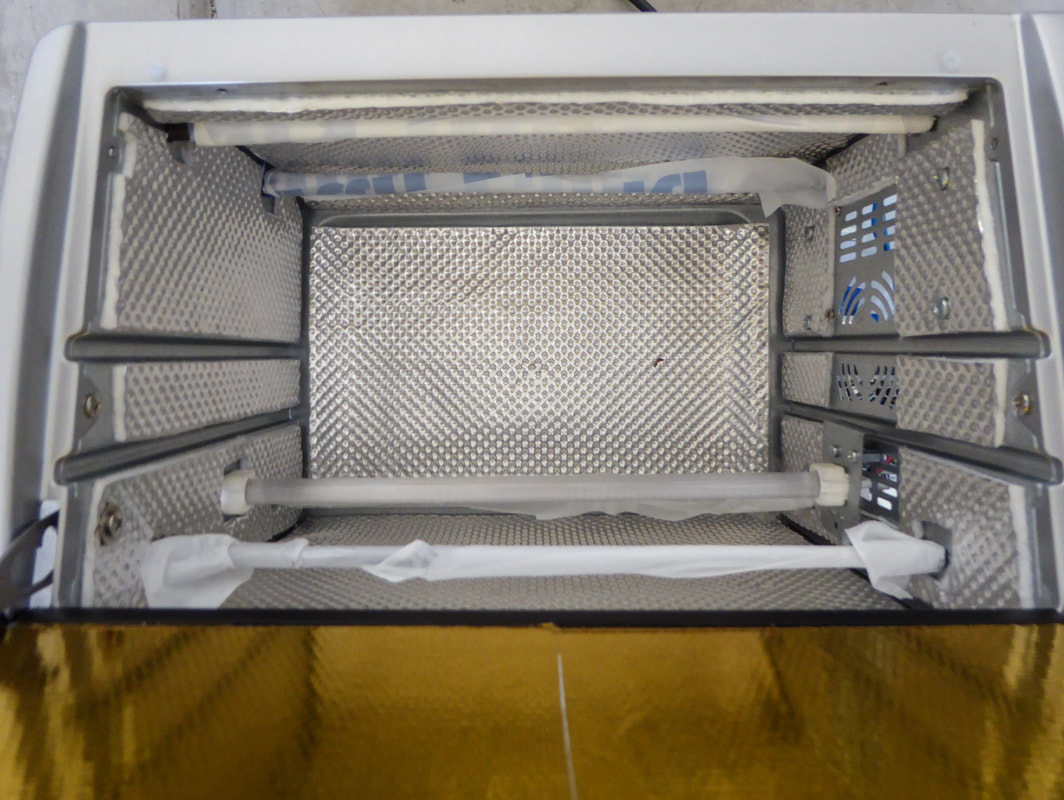

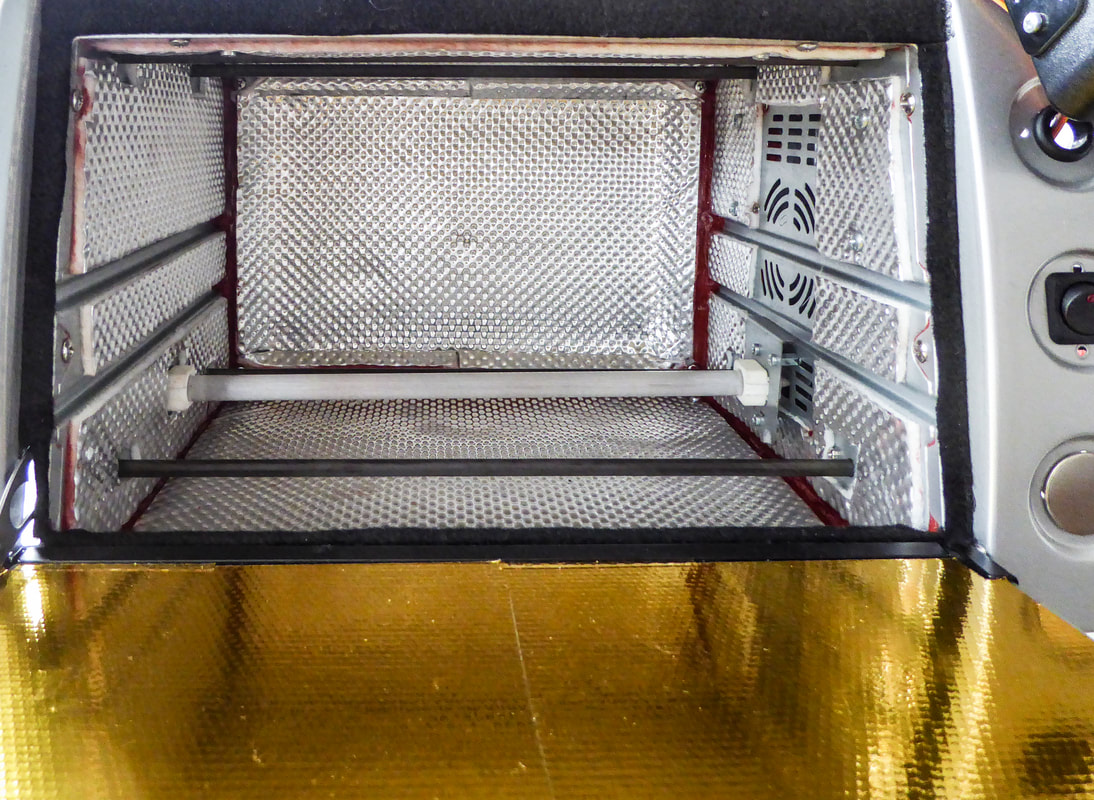

With the door treated, I disassembled the enclosure down to its core components to gain access to the outer walls of the reflow chamber. To heavily insulate the cavity, I lined as many exposed interior surfaces of the internal sheet metal as possible with DEI Engineering’s Floor & Tunnel Shield II. Composed of a 1/8-inch ceramic fiberglass mat faced with an embossed aluminum shield, this high-performance thermal barrier was intended to curb conductive and radiant heat transfer out of the chamber.
|
|
To address convective heat loss, I turned my attention to the interface between the oven door and the front bezel. The factory tolerances on consumer toaster ovens can leave significant gaps where circulating hot air can escape, causing thermal gradients and undermining the convection fan's effectiveness. To eliminate this, I installed high-temperature FireBlack smoker grill gasket along the perimeter edges of the door. This compressed fiberglass seal completely sealed the door perimeter.
|
|
With the chamber fully insulated and sealed, I transitioned to mounting the control electronics. Using a piece of stock aluminum strip from the garage, I cut and formed a custom bracket to securely mount the plastic Controleo3 controller enclosure to the chassis. To ensure clean, safe wire routing into the electronics bay, I installed a rubber grommet in the enclosure's top pass-through hole, protecting the signal and power cables from the sharp edges of the aluminum housing. For a polished, professional finish, I sealed the unused bottom knock-out hole with a standard conduit plug.
|
|

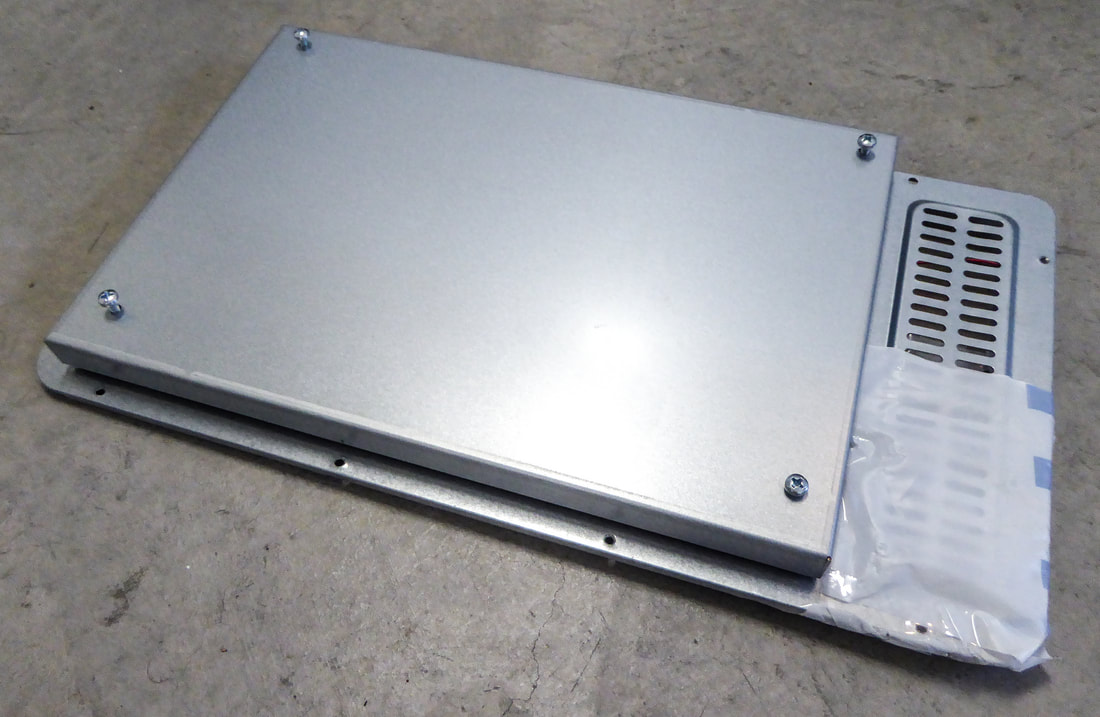

Despite lining the interior cavity with the ceramic fiberglass mat, I wanted to implement an extra margin of thermal isolation to keep the exterior chassis cool to the touch. To achieve this, I modeled a set of custom auxiliary sheet metal covers in CAD and sent the design files to a prototyping house in China for precision laser cutting and CNC bending. These custom panels were designed to mount to the rear and bottom of the oven using hex standoffs, creating a dedicated structural volume that I packed with an additional layer of bulk ceramic insulation. This dual-layer, air-gapped approach significantly reduced heat loss during high-temperature reflow cycles.
|
|

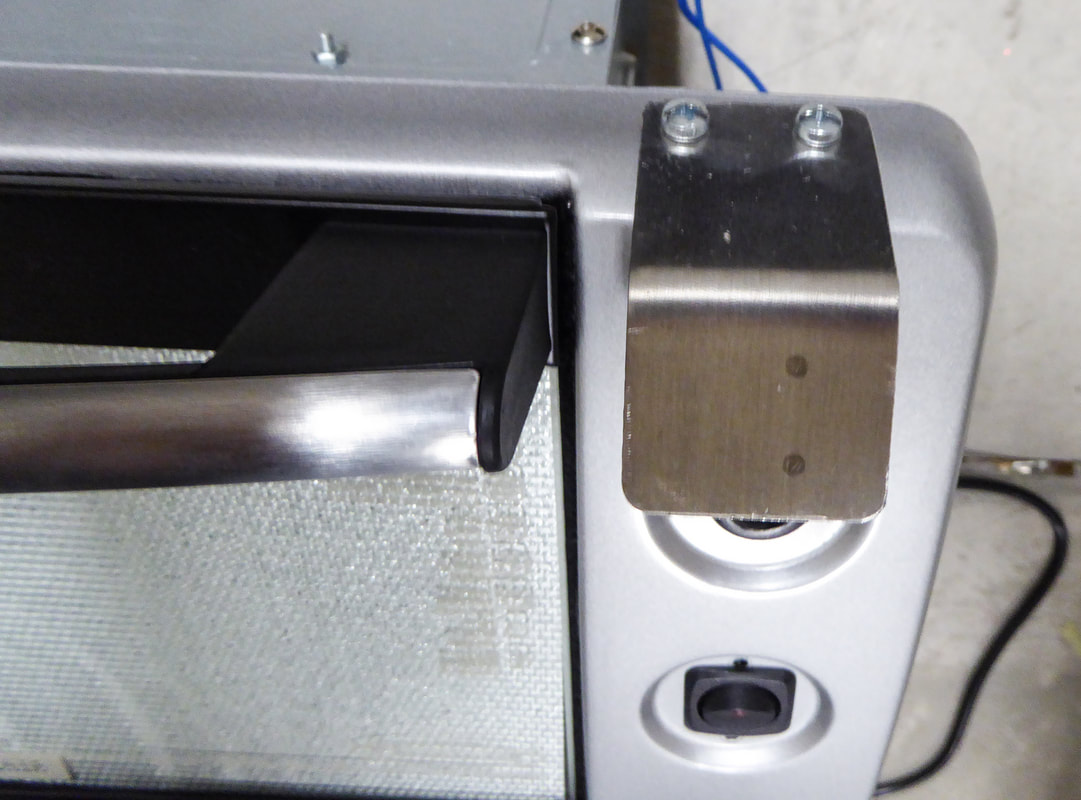

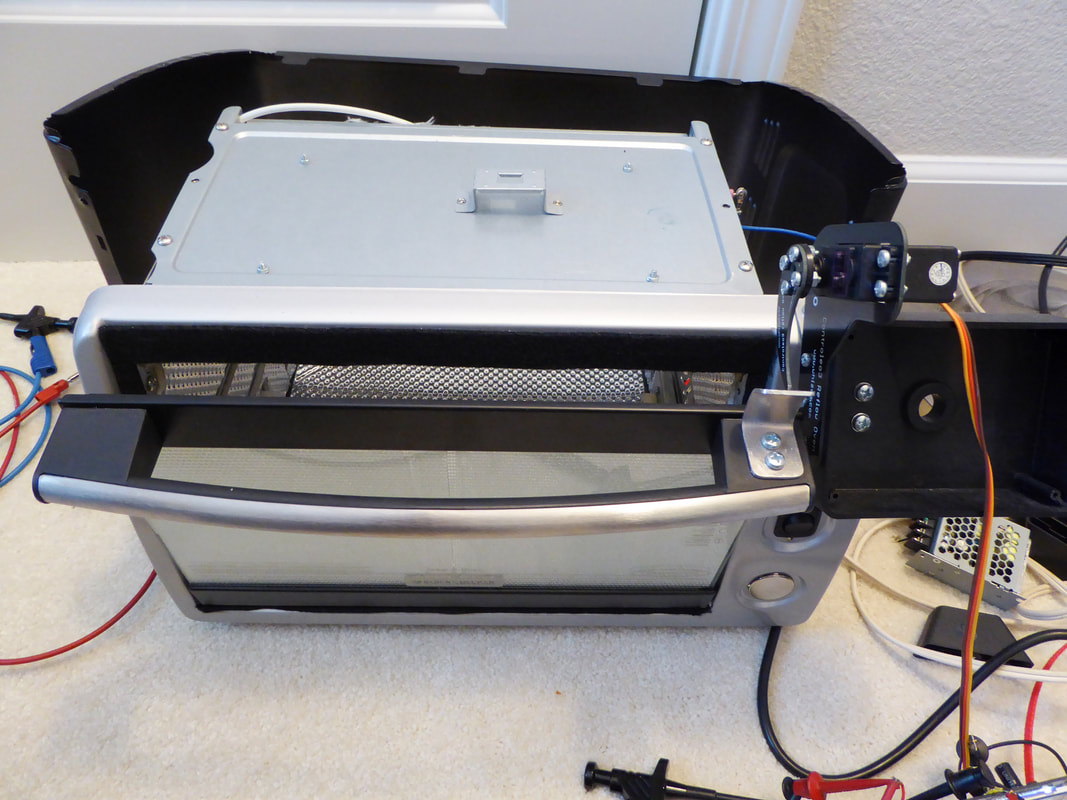

As previously mentioned, the Controleo3 controller features a dedicated servo motor output to manage automated cooling. The kit includes a custom cam piece designed to mechanically actuate the oven door at the conclusion of the reflow cycle, allowing for rapid cooling and preventing component over-baking. To give the servo’s cam a rigid surface to push against, I fabricated an interface bracket from stock material using basic hand tools. While utilitarian in appearance, the bracket's geometry was perfectly aligned to translate the servo's rotational torque into a smooth, reliable door-opening motion.
|
|

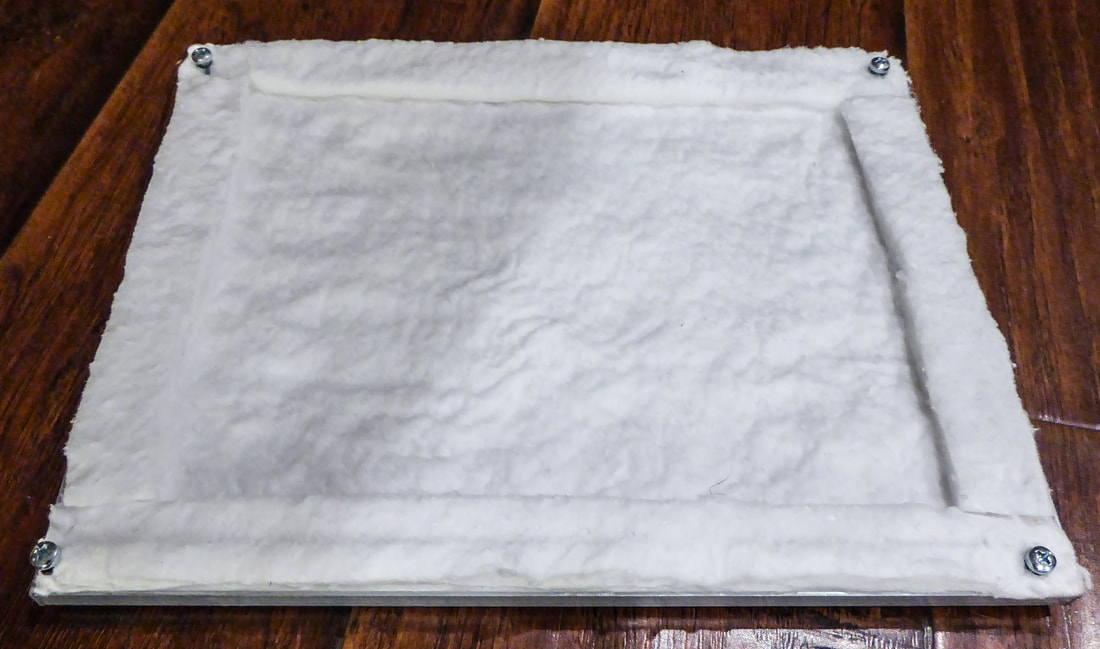

With all custom fabrication complete, I commenced the final, permanent assembly of the insulated, upgraded chassis. I prepared the CNC-machined sheet metal covers, pre-installing the hex standoffs into their mounting points. To secure the primary insulation layer, I lined the interior of these panels with 1/4-inch-thick alumina-silica ceramic fiber insulation. I bonded the fibrous mat directly to the metal surfaces using Rutland 2000 deg F high-temperature stove and gasket cement.
|
|
Next, I focused on eliminating any remaining paths for convective heat loss. I applied a thick bead of high-temperature RTV silicone to seal the seams and joints between the newly assembled chassis panels and the original enclosure.
|
|

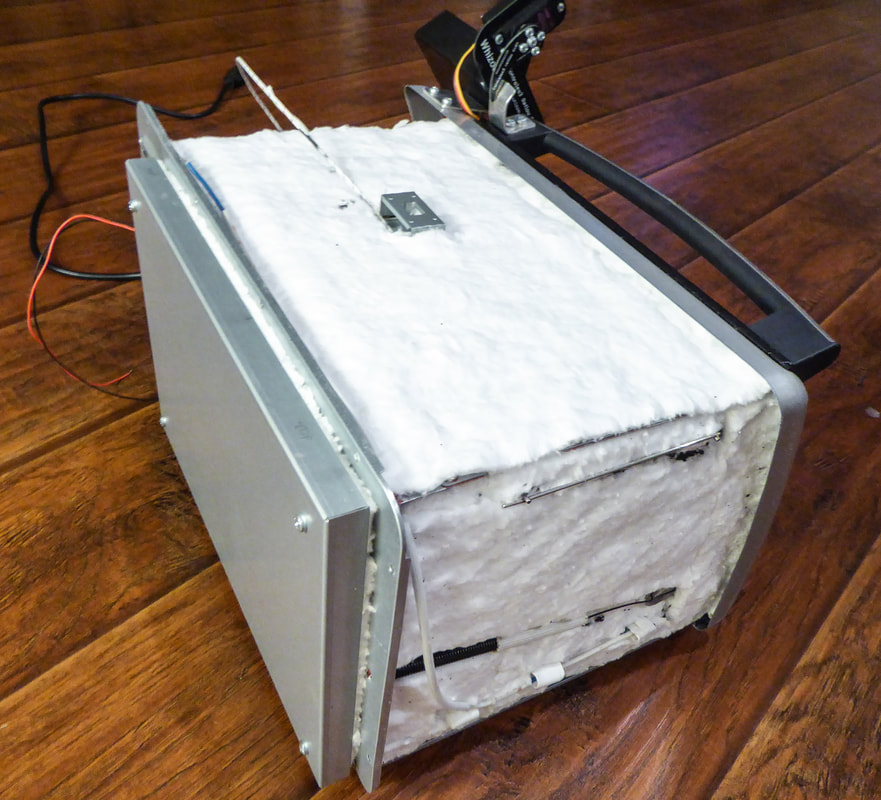

Following the chassis sealing, I reassembled the rear panel and drilled a small clearance hole through the top-center of the inner sheet metal cavity to accommodate a Type-K thermocouple for real-time temperature feedback. To finalize the internal thermal barriers, I completely lined the remaining inner sheet metal surfaces with the ceramic fiber insulation, bonding it with the gasket cement.
|
|

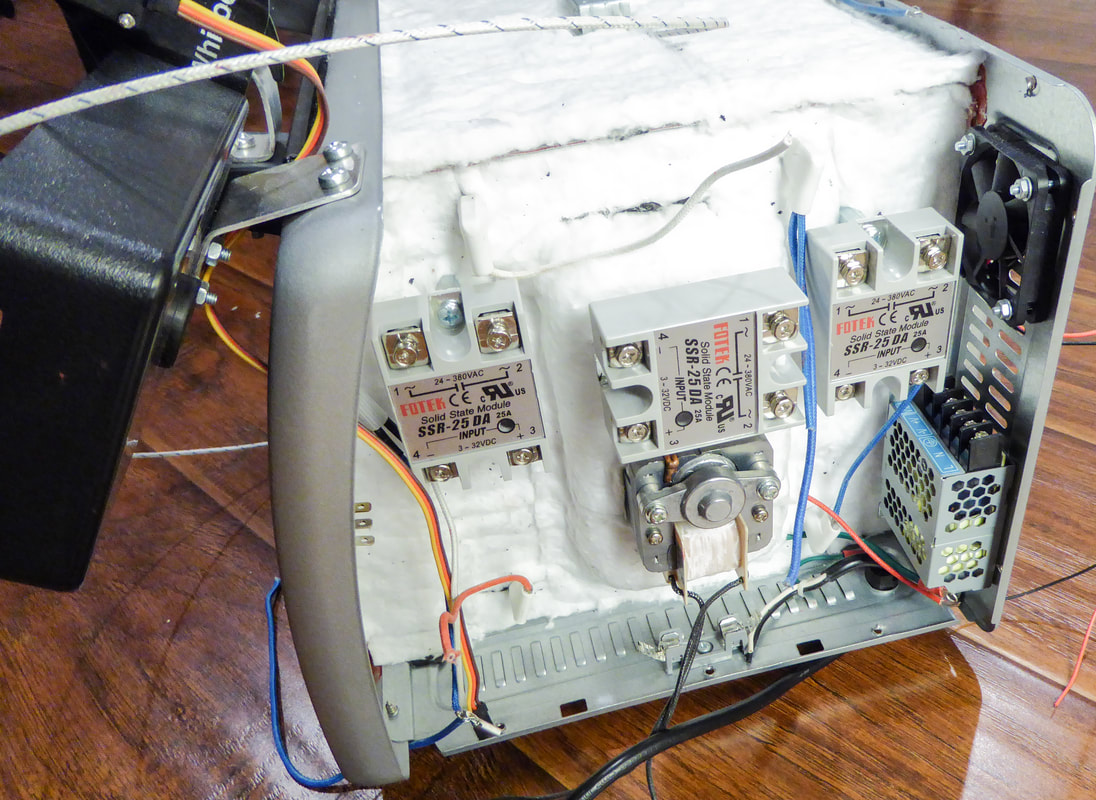

Next, I mounted the solid-state relays (SSRs) to the inner right sheet-metal panel using long hex standoffs. To prevent overheating, I aimed to maximize airflow behind the relays' mounting plates. Managing this thermal clearance proved challenging, however, due to the tight space constraints inside the factory electronics bay, requiring careful positioning to ensure adequate cooling within the crowded enclosure.
|
|

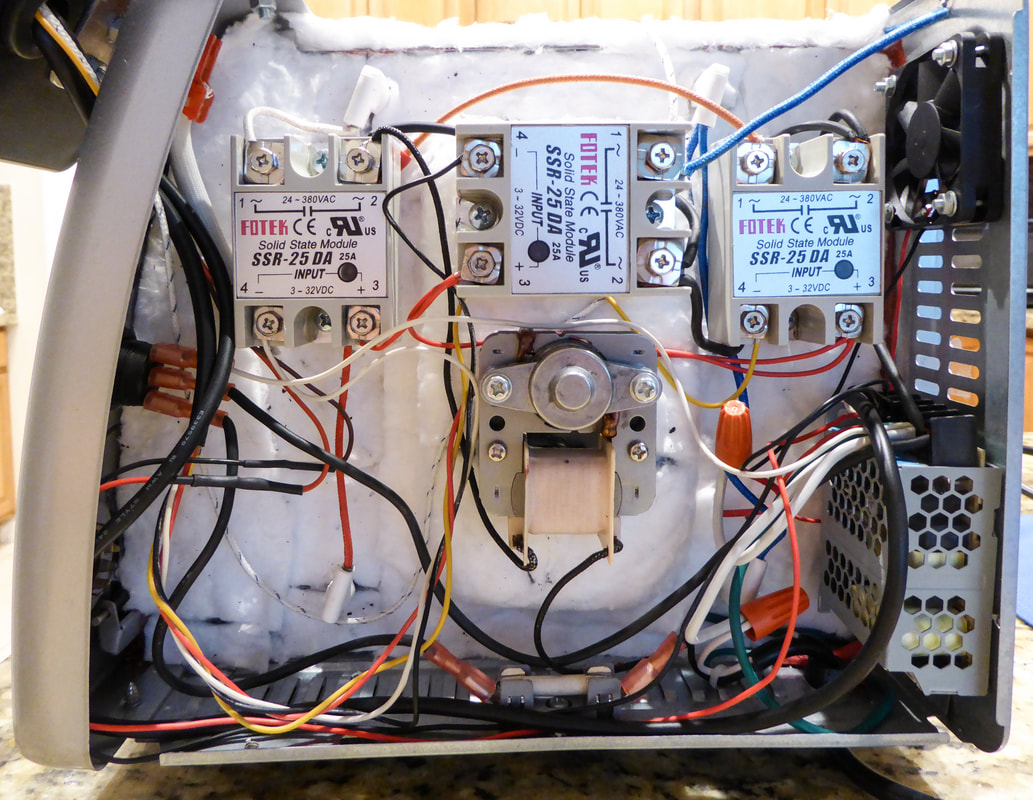

After routing and securing the thermocouple down into its final position at the center of the chamber, I turned my attention to the electrical system. I completed the final wiring, connecting the Controleo3 controller, solid-state relays, and the modified heating elements to ready the system for its first power-on.
|
|

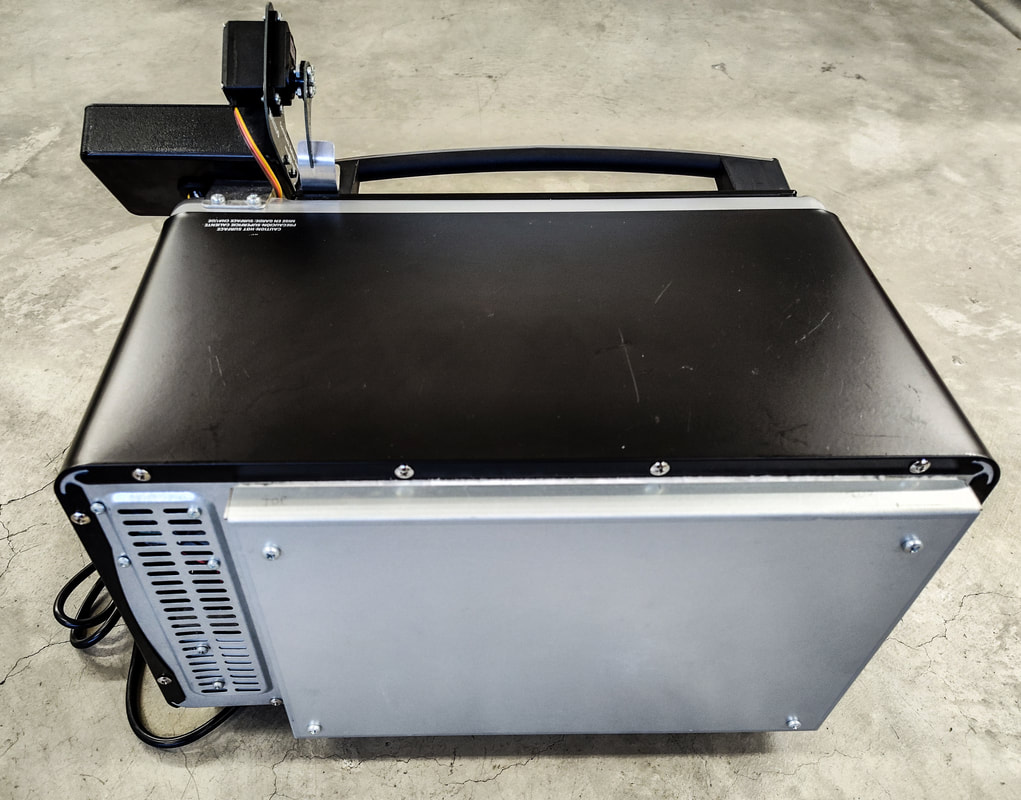

The completed rear assembly of the modified oven, showcasing one of the custom CNC-bent sheet metal insulated covers.
|
|

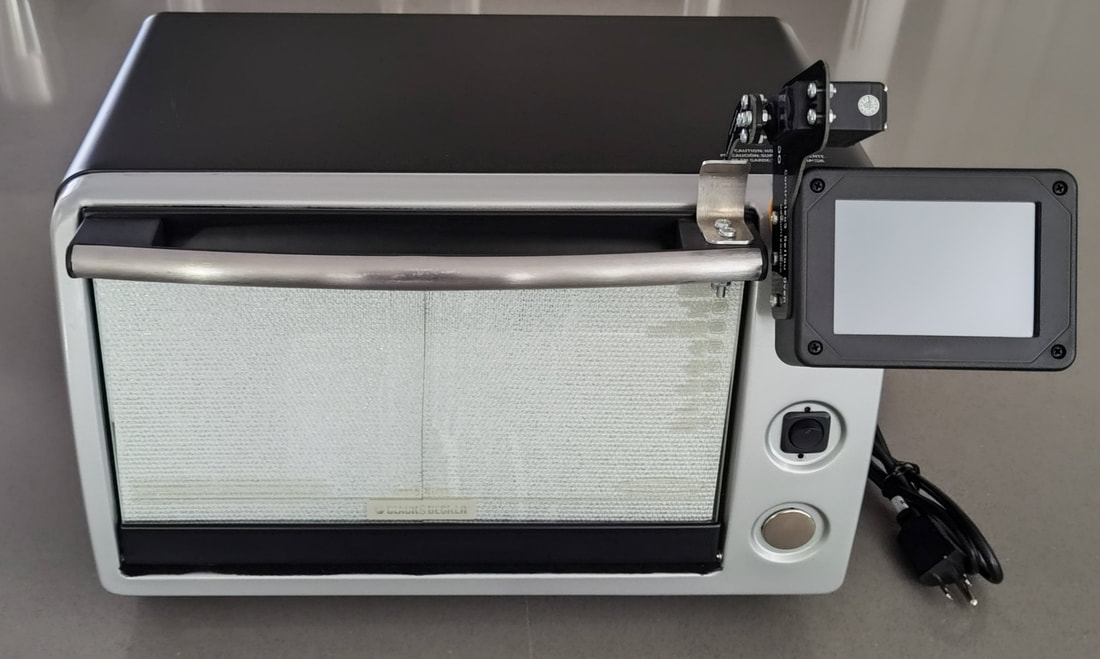

The front of the finished oven, highlighting the integrated Controleo3 controller enclosure, the automated door-opener, and the clean, factory-like fit and finish.
|
|

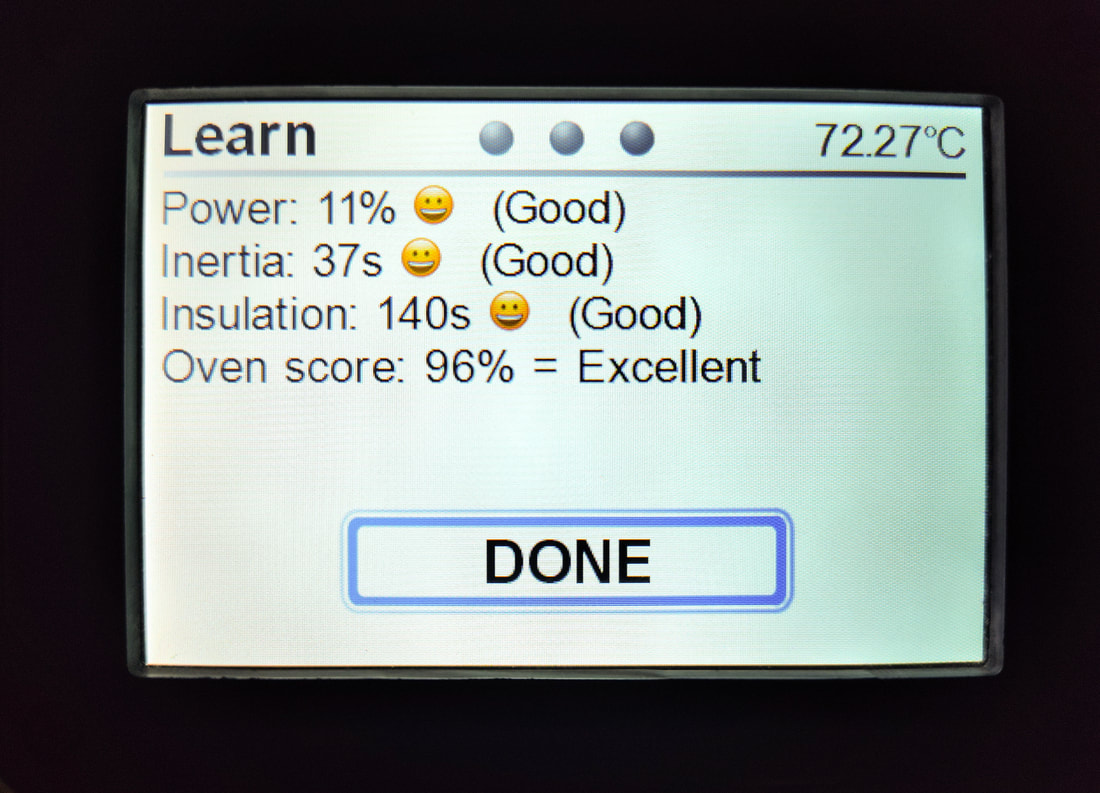

While the Controleo3 firmware provides advanced manual adjustments for tuning the heaters' PID loops, the integrated automatic learning mode is highly effective. Initiating this auto-tune routine runs the oven through a structured thermal profile to benchmark its performance. Upon completion, the system calculates scores across three critical criteria: Power (the duty cycle required to maintain a steady 120C), Inertia (the time required to ramp from 120C to 150C at 80% power across all elements), and Insulation (the cooling duration from 150C down to 120C). Thanks to the thorough insulation and sealing, my oven passed the learning cycle with excellent scores.
|
|

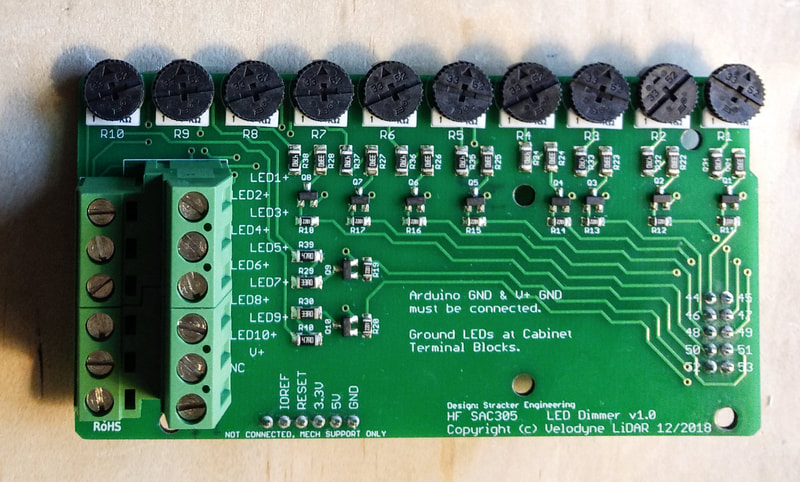

Shortly after completing the build, a colleague requested a custom Arduino shield to control LED operation and brightness for a camera setup, providing the perfect maiden project for the oven. I designed the PCB in Eagle and had the boards manufactured by JLCPCB. To ensure precise stencil alignment during solder paste application, I added two registration holes on opposite corners of the board to accept steel taper pins, which worked nicely. I programmed a custom reflow profile for the ChipQuik SAC305 lead-free paste and ran a test board through the oven. The thermal profile executed perfectly, resulting in clean, well-wetted joints, as shown in the final photo.
|
