CAM PROGRAMMING & CNC

This portfolio showcases my self-directed independent projects and hands-on execution in Computer-Aided Manufacturing (CAM) and CNC programming. Backed by formal certification and nearly two decades of mechanical engineering experience, I approach subtractive manufacturing with a focus on toolpath optimization, smart fixturing, and cycle-time reduction from prototype to finished part. Explore the selected projects below to see a breakdown of material selection, machining challenges, and step-by-step technical problem-solving for complex geometries.

---

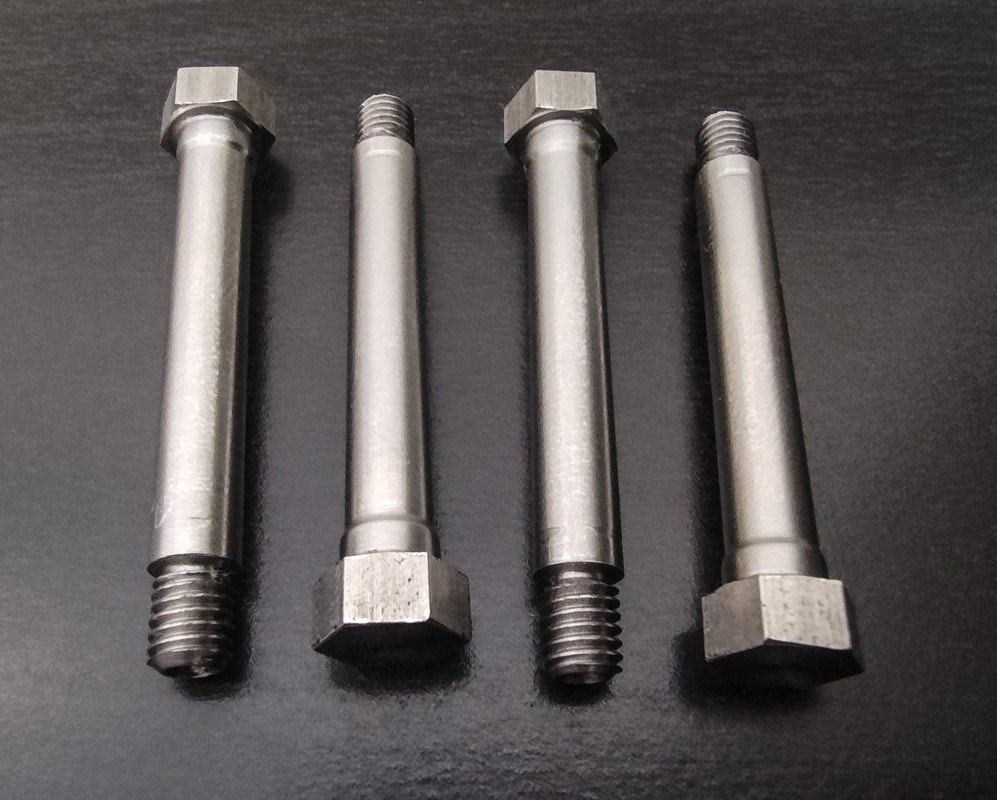

Bearing Shoulder Screws

• Hardware / Control: Haas SL-20 Lathe / Proprietary Haas Control
• Software: Solidworks CAD, Handwritten G-Code with Verification in Mastercam
• Material: Cold-drawn 303 Stainless Hex Bar (25HRC)
• Highlights: Multi-step turning, precision bearing shank (-0.0005” to 0.0”), live center support, and optimized feed rate tuning to prevent thread distortion during shoulder grooving.

---

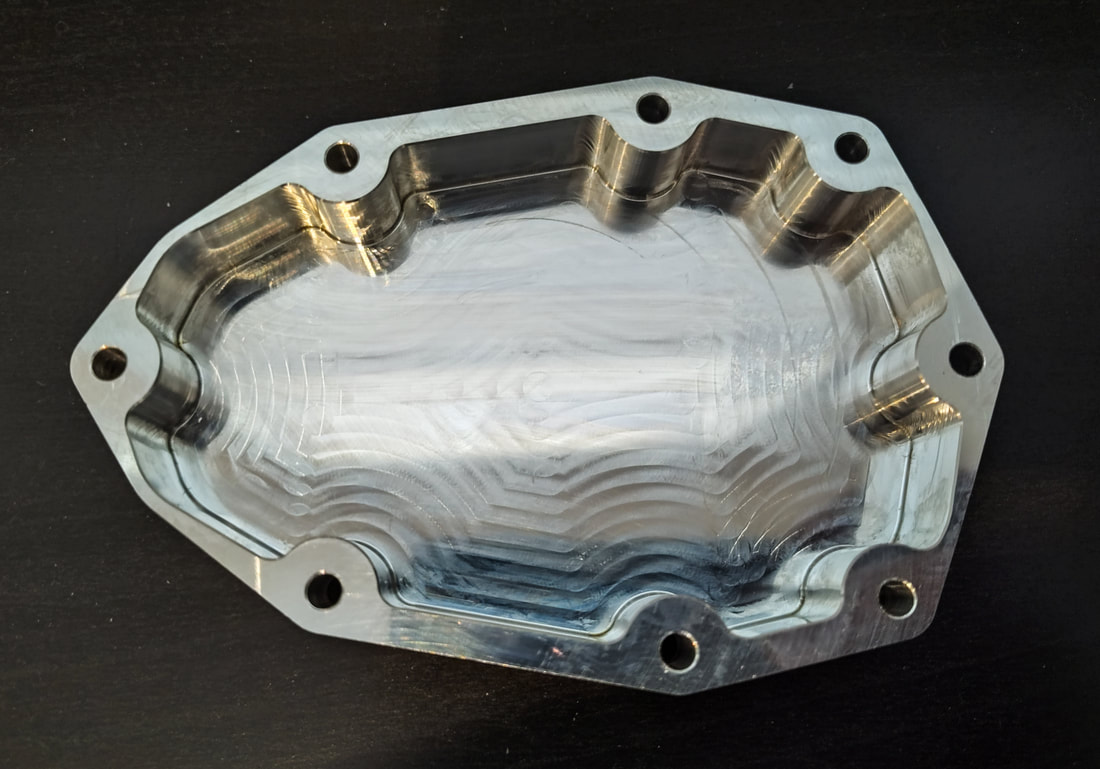

Gearbox Cover

• Hardware / Control: Haas VF-3 Vertical Machining Center / Haas NGC Control
• Software: SolidWorks CAD, Mastercam (Dynamic Toolpaths & Rest-Milling)
• Material: 6061-T6 Aluminum
• Work-holding and Setup: Custom fixture plate with precision-turned locating pins (LC2 fit); integrated Haas Renishaw workpiece probing for automated work coordinate setup and Haas OTS (Optical Tool Setter) for automated tool length and wear compensation.
• Highlights: High-efficiency dynamic pocketing and contouring, bull endmill corner rest-milling.

---

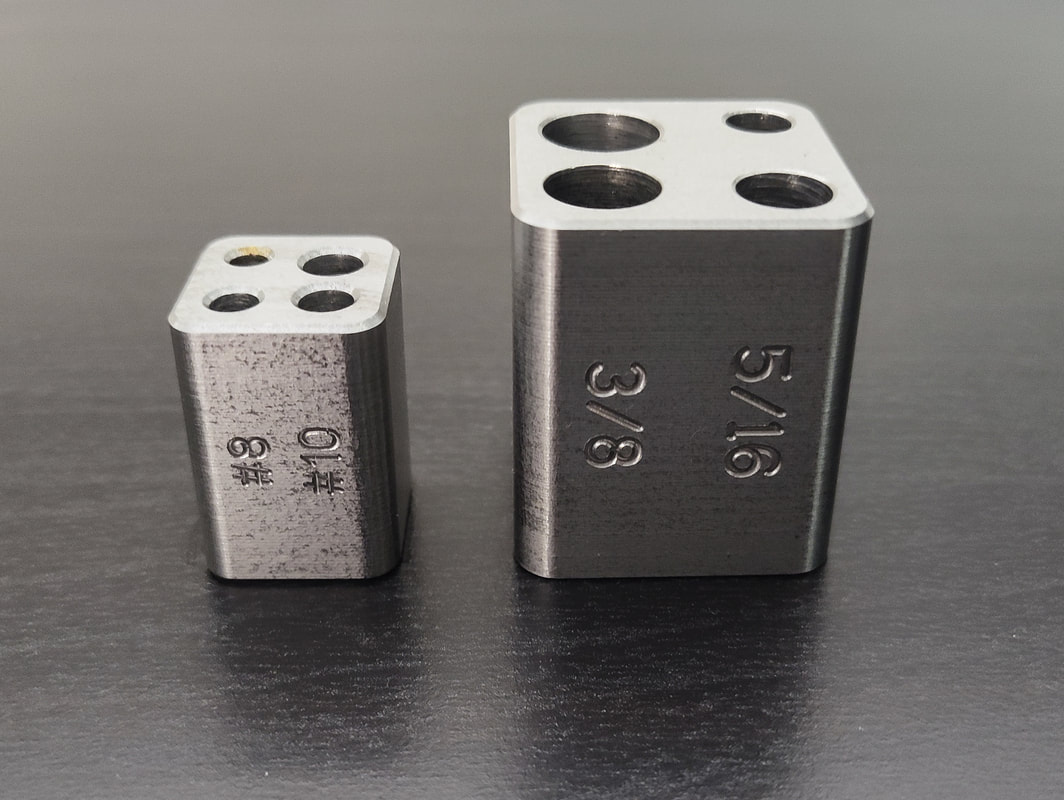

Compact Tap Guides

• Hardware / Control: Haas VF-3 with TRT210 2-Axis Rotary Table / Haas Super Mini Mill 2 (Secondary Machine) / Haas Next Generation Control (NGC)​
• Software: SolidWorks CAD, Mastercam
• Material: O1 Tool Steel (Annealed Condition HRB90)
• Workholding & Setup: Automated WCS setup via Haas Renishaw workpiece probing and Haas OTS (Optical Tool Setter); multi-sided machining via 3+2 axis indexing on the TRT210 rotary table; carbide tooling
• Highlights: Custom shop-tool fabrication sized specifically for HSS cut tap dimensions; dynamic (HSM) contouring; manual G-code modification to implement G254 Dynamic Work Offset for multi-plane part engraving.

---

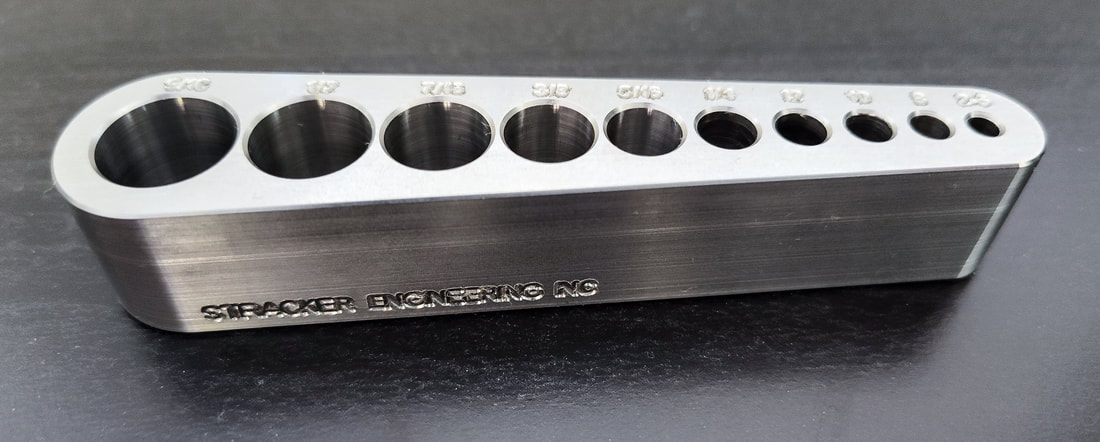

V-Tap Guide

• Hardware / Control: Haas VF-3 with TRT210 2-Axis Rotary Table / Haas Next Generation Control (NGC)
• Software: SolidWorks CAD, Mastercam
• Material: Hot-Rolled 303 Stainless Steel Bar (25HRC)
• Workholding & Setup: Custom soft jaws; automated WCS setup via Haas Renishaw workpiece probing and Haas OTS (Optical Tool Setter); 3+2 axis positional indexing using the TRT210 rotary table; carbide tooling
• Highlights: Adapted an existing STEP file by modifying hole sizes specifically for internal HSS cut taps; added custom side engraving; manual G-code modification to implement G254 Dynamic Work Offset.

---

 HS20 Encoder Mount (Project In-Progress)

• Hardware / Control: Haas VF-3 with TRT210 2-Axis Rotary Table / Haas Next Generation Control (NGC)
• Software: SolidWorks CAD, Mastercam (Dynamic HSM Toolpaths & Simultaneous 5-Axis Curve)
• Material: 6061-T6 Aluminum
• Workholding & Setup: Custom soft jaws for secondary operations; specialized slip-fit internal core plug inserted into the cylindrical bore during vise clamping to prevent thin-wall distortion; automated WCS setup via Haas Renishaw workpiece probing and tool length/wear offsets via Haas OTS (Optical Tool Setter).
• Highlights: Complex cylindrical cage geometry for motor encoder retrofitting; simultaneous 5-axis curve toolpaths for side window machining; high-speed dynamic (HSM) contouring for profiling and roughing operations.

​
