Hardening the System: A Study in Silicon & RF Mitigation
In my previous post, Taming the Noise: An Adventure in Active Analog Design (V2), I described the process of upgrading the LPFM station's EAS multi-channel relay system to support active voice mixing and balanced audio distribution. However, during that redesign phase, my research highlighted critical vulnerabilities that still needed to be addressed for a truly commercial-grade product: susceptibility to Electrostatic Discharge (ESD) during installation, and radio frequency (RF) demodulation. In a high-power broadcast environment, unshielded cabling easily acts as an antenna, picking up radiated RF waves which are then rectified by active silicon and introduced as audible noise into the analog signal path.
Furthermore, while the transformer-isolated mixing of V2 worked, I was unsatisfied with the physical bulk, cost, frequency response limitations and cross-talk performance of passive transformers. This drove me to explore high-performance, active-silicon balanced audio receivers. This post is a deep dive into how I hardened the system against EMI/ESD and modernized the analog signal path.
Furthermore, while the transformer-isolated mixing of V2 worked, I was unsatisfied with the physical bulk, cost, frequency response limitations and cross-talk performance of passive transformers. This drove me to explore high-performance, active-silicon balanced audio receivers. This post is a deep dive into how I hardened the system against EMI/ESD and modernized the analog signal path.
|
Realizing that fully mitigating these high-frequency phenomena required a deeper academic foundation, my first step was to track down robust resources. I reached out to several RF engineers through my contact at the radio station, an engineering DIY audio electronics forum owner, and even connected with the creator of highly technical YouTube analyses on common-mode filter design. However, the true turning point in my learning curve came when I purchased Electromagnetic Compatibility Engineering by Henry Ott, studying it cover to cover like a technical handbook. While some people spend their free hours on social media, true engineering nerds read EMC textbooks—and this investment in fundamental theory entirely reshaped my approach to the new layout.
|
|
While working through the high-frequency design challenges, I quickly realized my standard bench tools weren't equipped to measure signals beyond AM radio frequencies. Operating on a budget, I spun up a creative side-hustle buying surplus electronics test equipment at auction and selling on sites like eBay. A few strategic commercial auction wins allowed me to pick up some professional-grade RF lab equipment. I scored an Agilent RF signal generator (9kHz-3GHz), a 4-channel, 1.5GHz Agilent oscilloscope with an active RF probe, and an Agilent E4405B spectrum analyzer. For my initial validation of the new RF filters, this high-bandwidth scope and signal generator combo became indispensable. The image gives a look at how these instruments are currently configured on my office test bench.
|
|
Since RF filter design was a new discipline for me, I had to establish a logical baseline for my target specifications. I began by modeling a typical short interconnect cable as a monopole antenna to determine its resonant frequency. Using these wavelengths as a target, I selected capacitor and common-mode choke values to provide significant attenuation at those high frequencies.

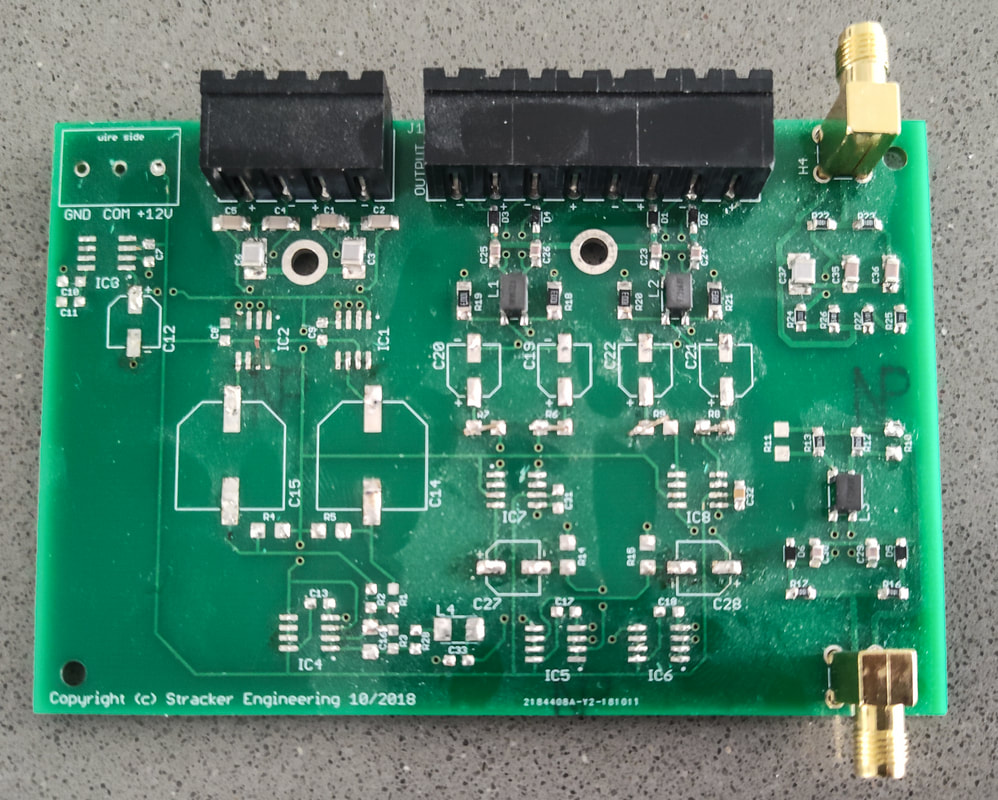

To validate the math, I simulated the frequency response in MATLAB to analyze how various component values behaved. I then designed a custom, dedicated RF filter testing board using SMA connectors, allowing me to easily swap out passives and common-mode chokes while shunting high-frequency noise to chassis ground. The image shows a dismantled and partially de-soldered RF filter test board. Because my spectrum analyzer lacked a tracking generator to sweep the filter automatically, I engineered a custom workaround. I wrote MATLAB scripts to control my RF signal generator and high-bandwidth oscilloscope via SCPI (Standard Commands for Programmable Instruments) commands. The scripts swept the signal generator through my target frequencies, captured the output on the scope, and plotted the real-world insertion loss of my filters. While there are more advanced industry methods for characterizing RF filters, this automated bench-testing rig provided reliable empirical data to prove my designs worked. |
|
With my RF and ESD protection strategies taking shape, I set out to replace the bulky transformers with an active, balanced silicon solution. My research led me to THAT Corporation’s industry-standard analog ICs: the THAT 1240 series balanced line receivers and the THAT 1646 series line drivers.
Bench testing immediately proved that these chips completely eliminated the crosstalk issues of the previous design, bypassed the inductive kickback transients entirely, and delivered pristine audio performance. To validate the integrated system, I spun up a preliminary test board combining my new RF low-pass filters, Transient Voltage Suppression (TVS) diodes for ESD protection, and the THAT 1240 input stages. Feeding a high-fidelity signal from my laptop through a professional mixing console and into this test rig, the audio output was incredibly clean and quiet—confirming that the active silicon architecture was the right path forward. |
|

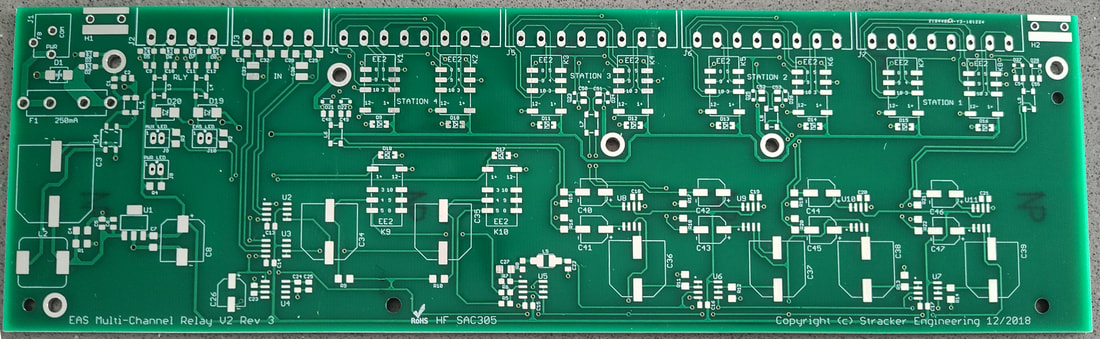

As a final iteration alongside other projects, I executed a complete redesign of the PCB, transitioning almost exclusively to surface-mount (SMD) components optimized for automated pick-and-place assembly, and fully integrated the THAT line drivers. While I had these high-density PCBs fabricated, the project naturally paused there; I already had four complete, reliable intermediate units ready to go, and a new professional opportunity began demanding my full attention.
Though I didn't assemble this final revision, the entire journey was an invaluable masterclass in hardware development. Not a bad outcome for a mechanical engineer dabbling in the complexities of high-frequency analog and electromagnetic compatibility design! |
|
Just as critical as the internal circuitry was the product's packaging—another design phase I had yet to explore. To ensure a professional out-of-box experience, I built a 3D CAD model of a custom cardboard box complete with branding graphics, and sourced quotes from several packaging manufacturers. I ultimately selected Packlane as the vendor, exported my vector artwork from Adobe Illustrator to their platform, and finalized the design. Scaling this project from basic breadboard prototypes to a fully packaged, commercially viable product was an incredibly rewarding journey that proved the value of multidisciplinary, end-to-end design.
|
