The Hardware & Commercial Release
In my previous posts, I detailed the design and evolution of the multi-channel relay system built to help a local high-school LPFM radio station maintain FCC compliance during their digital broadcast transition. While the system was electrically and functionally complete, it lacked one final integration element: a professional rack-mount chassis to securely house the unit within their standard 19-inch equipment rack (a structure I had coincidentally welded together for them during an earlier station upgrade). To truly polish off the project and deliver a seamless, broadcast-ready installation, I got underway designing a custom rack-mount enclosure.
|

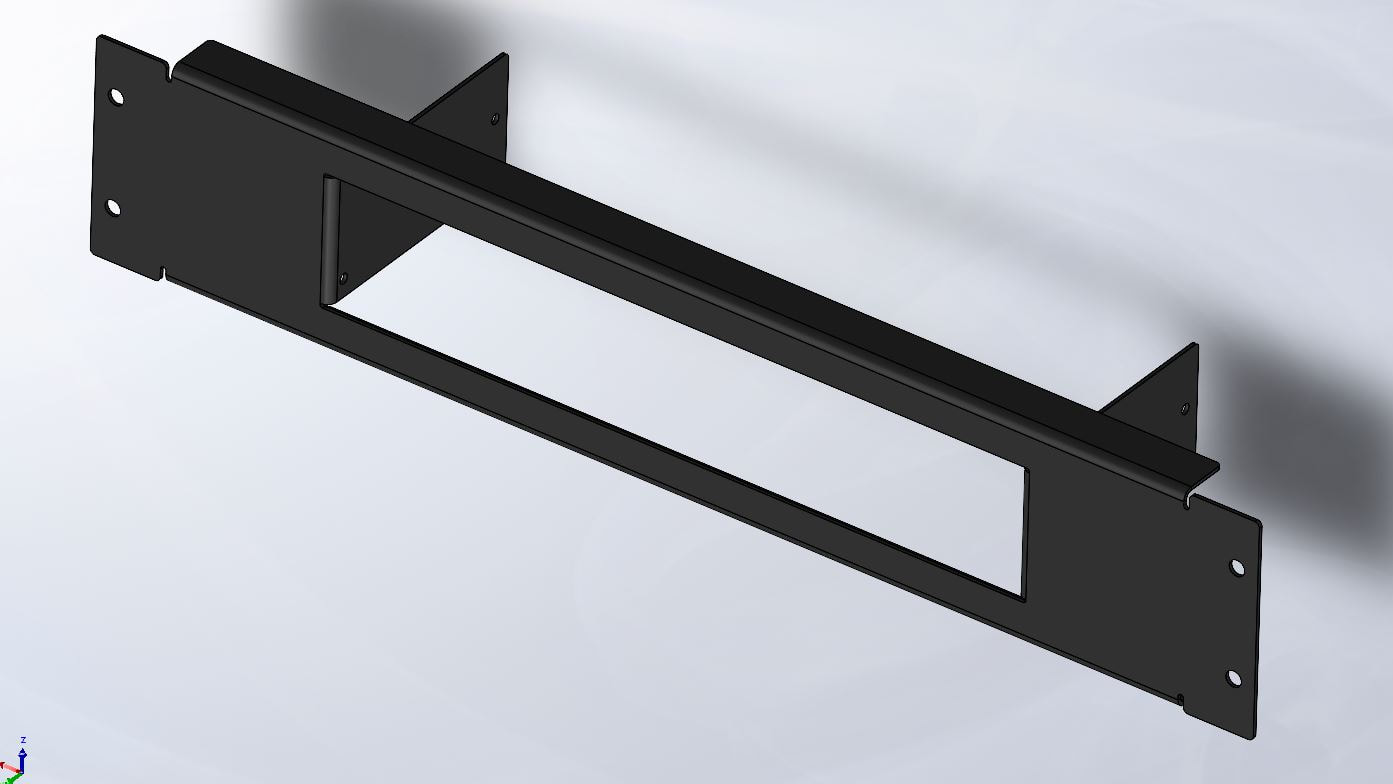

Leveraging my established relationship with the fabrication house in China mentioned previously—who possessed precise CNC laser-cutting and sheet-metal bending capabilities—I designed the rack-mount chassis in SolidWorks. By designing directly within the existing CAD assembly, I was able to mate the sheet-metal bracketry perfectly to the enclosure to guarantee an exact fit. Because the design conformed to standard sheet-metal tolerances without requiring complex GD&T features, I streamlined the manufacturing package: I provided the vendor with a 3D STEP file of the assembly, a flat-pattern STEP file, and a DXF for the laser cutter. Along with the geometry, I supplied complete specifications for the metric material thickness, the specific steel alloy, and the exact RAL powder-coat finish.
|
|

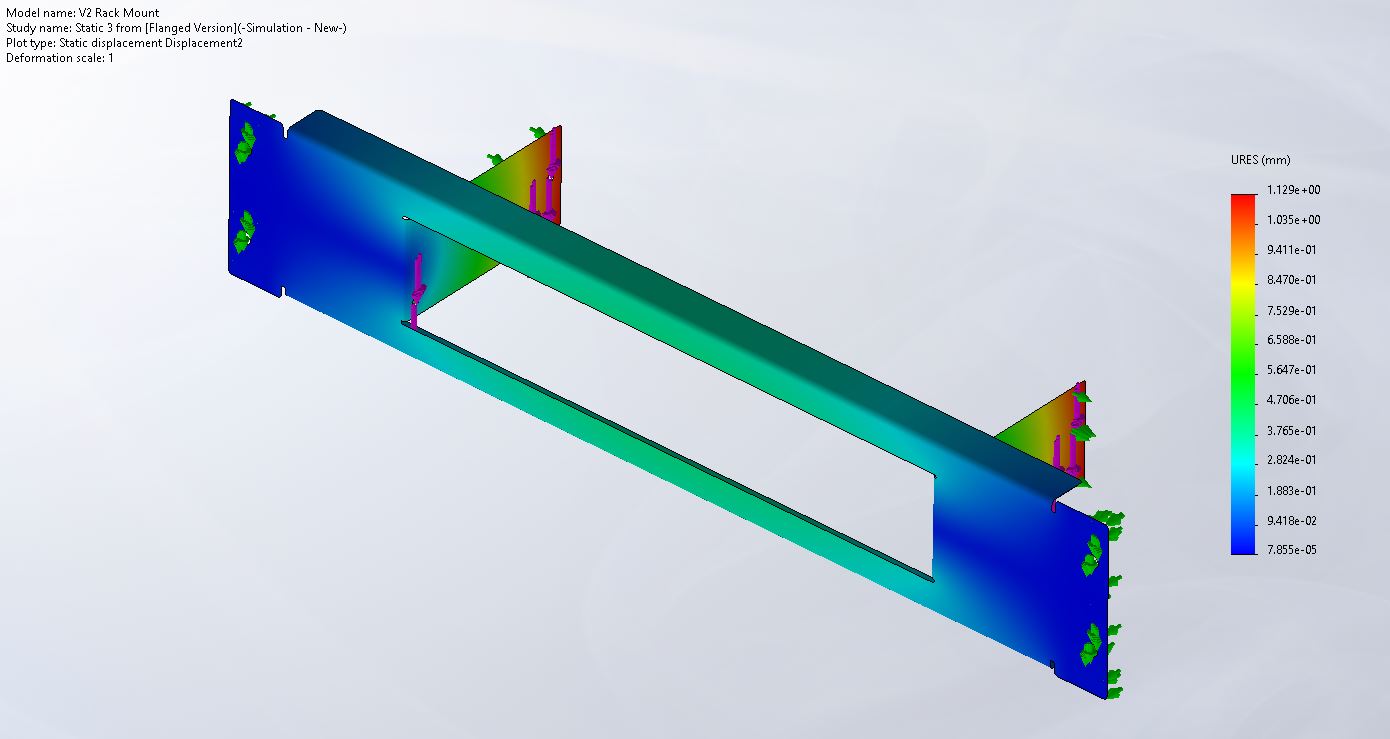

I initially weighed using 18-gauge (1.2mm) versus 16-gauge (1.5mm) steel to optimize material costs. While the chassis assembly was relatively lightweight, I wanted to avoid any structural flimsiness or bowing under load if someone were to lean 50lbs onto the mounted relay. To evaluate this, I ran a series of Finite Element Analysis (FEA) simulations in SolidWorks Simulation to characterize the mechanical deflection of both gauges under worst-case loading scenarios using shell elements. Although the simulations showed that 18-gauge steel would easily meet the minimum yield requirements, I ultimately specified the thicker 16-gauge steel. The marginal cost increase was well worth the substantial boost in structural integrity and the premium, high-quality "heft" it lent to the final, rack-mounted product.
|
|

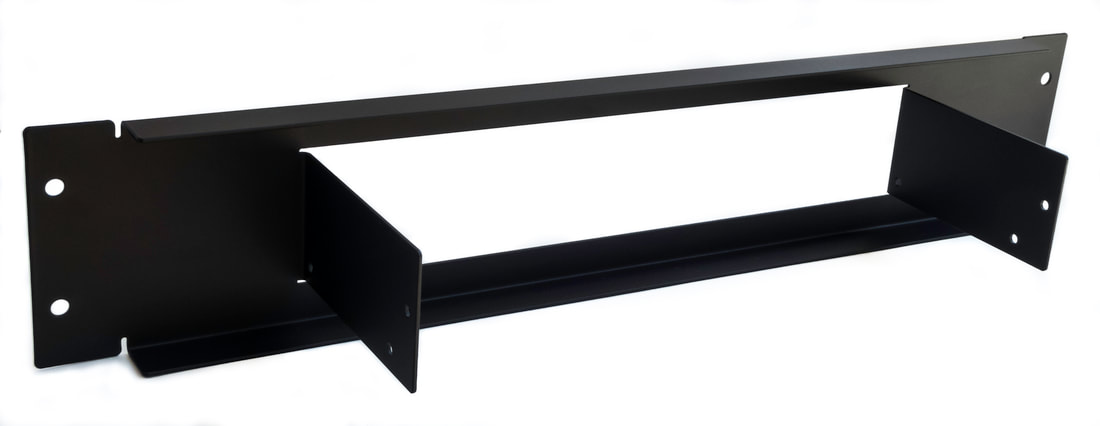

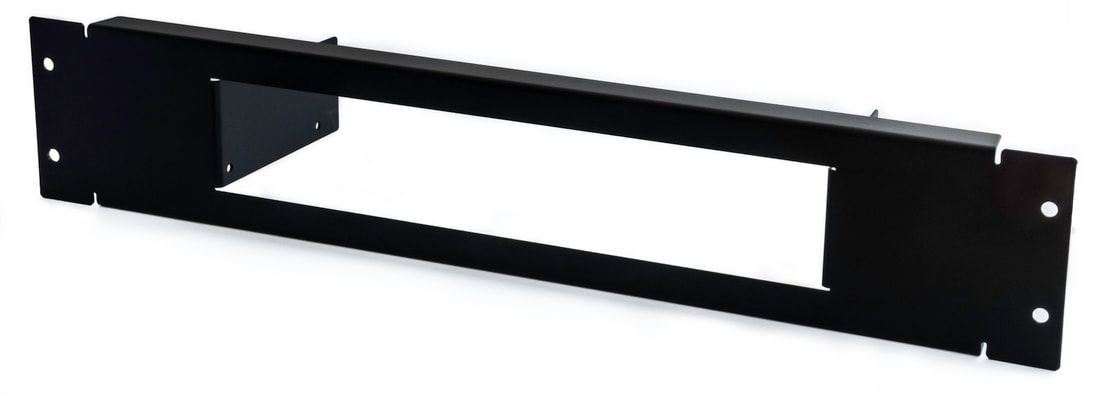

Once the fabrication quote was approved, the chassis went into production. Upon receiving the prototype, I conducted a physical fit-check with the EAS relay enclosure. To maintain a streamlined assembly and avoid making permanent, destructive modifications to the existing housing, I designed the mounting bracket to share the enclosure's existing lid-fastener holes. By simply swapping the stock screws for slightly longer equivalents, the rack-mount bracket and the enclosure lid were secured simultaneously to the internal threaded standoffs. This elegant, shared-fastener approach eliminated the need for secondary machining operations, minimized our hardware part count, and kept assembly incredibly simple.
|
|

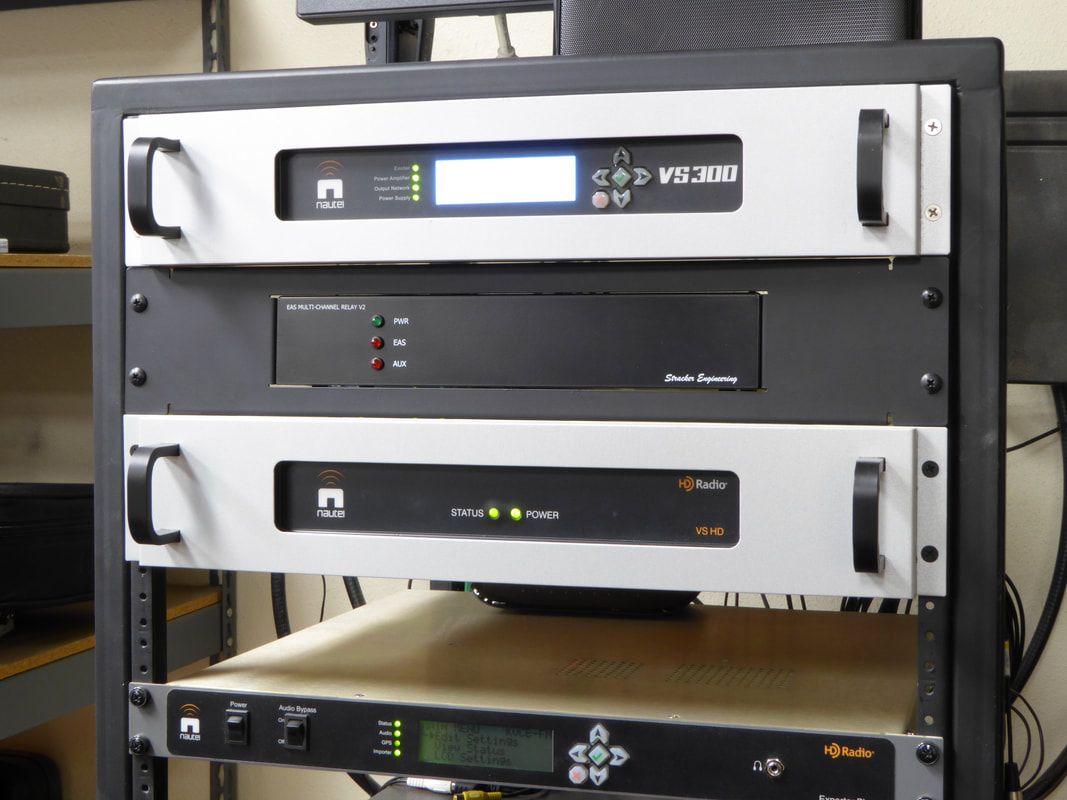

With the installation complete, the device slid seamlessly into the rack below the main broadcast transmitter. Every mounting hole aligned perfectly, and the clean, textured powder-coat finish delivered a highly professional, industrial aesthetic. More importantly, the custom-engineered chassis provided rock-solid structural support, successfully concluding a multi-disciplinary design journey from bare PCBs to a robust, field-deployed system.
|
