From Condensation to Control: Component-Level Repair of an Ingersoll-Rand Refrigerator Air Dryer
While setting up my shop compressed air system, I set out to find a refrigerated air dryer to handle the airflow of my newly acquired Kaeser SX-7 rotary screw compressor. Perusing Craigslist, I came across an ad for an unused Ingersoll-Rand D42IN dryer for half the price of new. Skeptical yet intrigued, I messaged the seller about the unit's history. He explained he was a re-seller (which I soon discovered meant buying and reselling pallets of Amazon returns) and had no way to power it up, but welcomed me to check it out. Figuring it could be a great deal, I headed out his way.
Arriving at his storage unit—packed full of items—the seller assured me in a thick Russian accent that if the unit turned out to be defective, I could return it for a full refund. Despite the typical reservations of a Craigslist transaction, I got a trustworthy vibe from him, decided to pull the trigger, and transported the dryer home.
Arriving at his storage unit—packed full of items—the seller assured me in a thick Russian accent that if the unit turned out to be defective, I could return it for a full refund. Despite the typical reservations of a Craigslist transaction, I got a trustworthy vibe from him, decided to pull the trigger, and transported the dryer home.
|

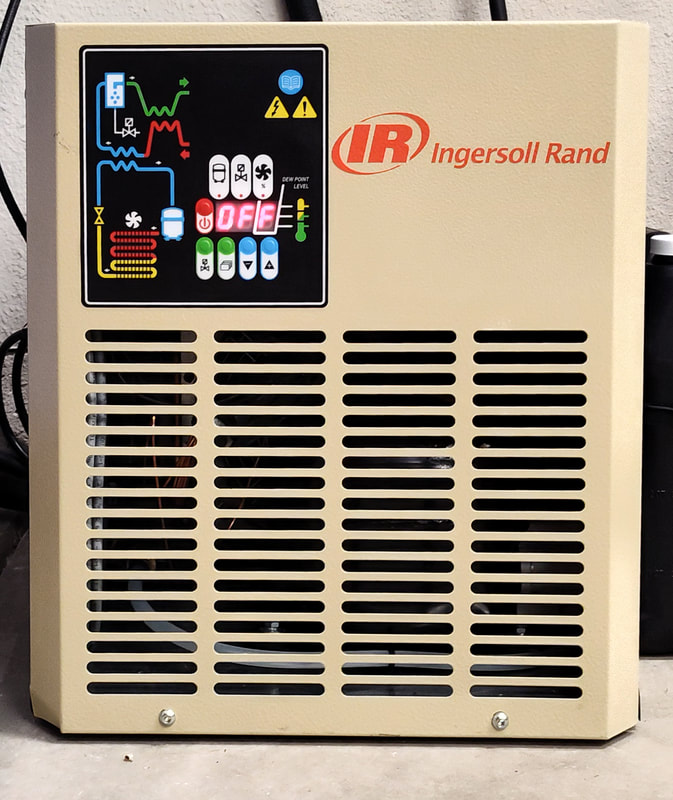

After getting the D42IN home and unloaded, I plugged it in for an initial power-on test. I held down the power button—nothing. The display still read "OFF". Hoping it was just user error or a specific startup sequence I had missed, I downloaded and scanned through the user manual. Unfortunately, my initial suspicion was confirmed: the unit was non-functional. Or so it seemed.
|
|
In the words of Dave Jones from EEVblog: "Don't turn it on, take it apart!" Rather than immediately reaching out to the seller for a refund, I decided to pull the panels and inspect the electronics for obvious faults—a disconnected harness, a cracked connector, or a visibly charred component on the control board. Because the issue presented as a power-on issue rather than a mechanical failure in the refrigerant loop, I held out hope for a simple fix.

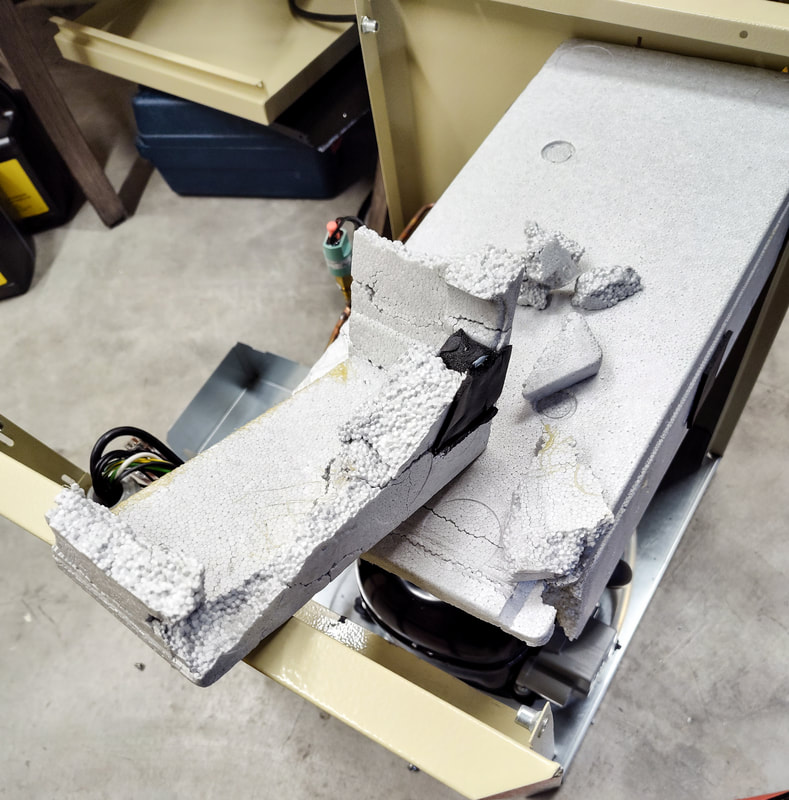

The first dead giveaway that the unit had suffered physical abuse was the shattered heat exchanger insulation. In this dryer design, air treatment occurs in two distinct thermal stages: an air-to-air section that precools incoming air using the dry, cold discharge air (which also reheats the outlet stream to prevent line condensation), followed by an air-to-refrigerant evaporator stage that pulls the air down to its pressure dew point. The entire aluminum heat exchanger block is encased in a molded styrofoam shell—the front of which was shattered into pieces, suggesting the dryer had suffered a severe drop or a heavy frontal impact. Interestingly, there was absolutely no sign of damage on the exterior of the dryer. |
|

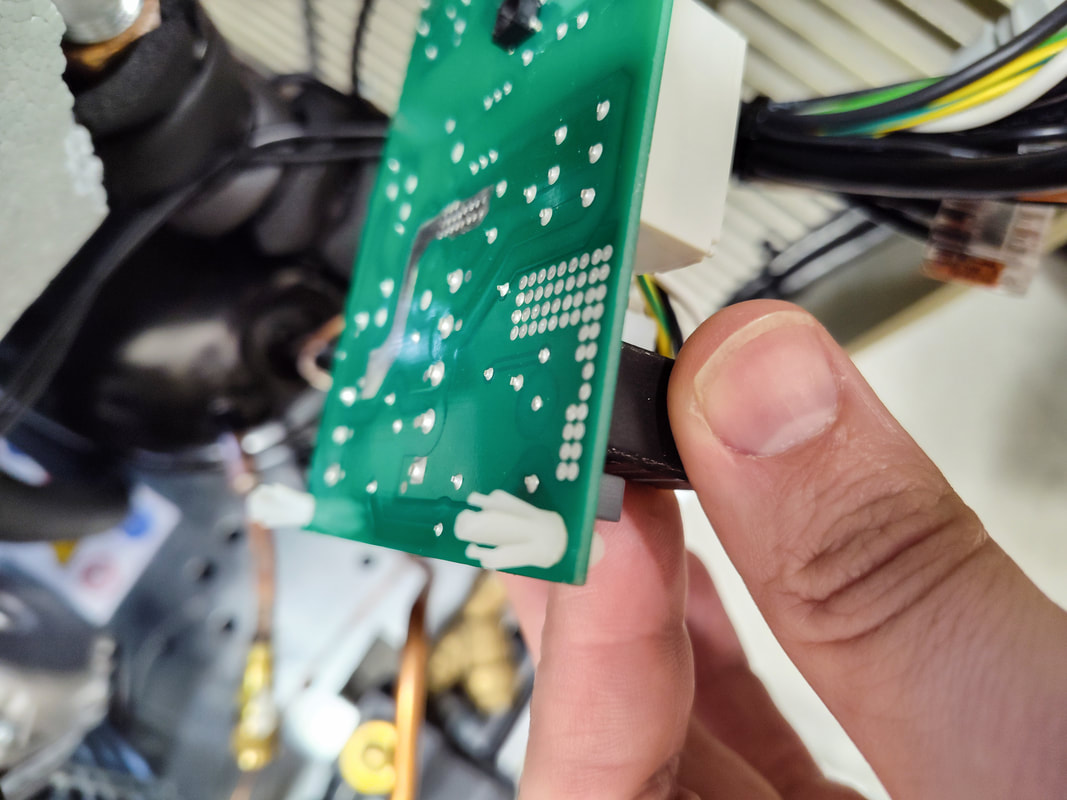

Turning my attention to the electrical assembly, I pulled the control board to check for obvious component faults. Several plastic standoffs mounting the PCB to the front enclosure were broken, allowing one side of the board to float freely. My initial theory was that this lack of rigidity was preventing the front power button from making solid contact with the board-mounted tact switch. However, digging deeper into the assembly quickly disproved that idea and uncovered the real issue.
|
|

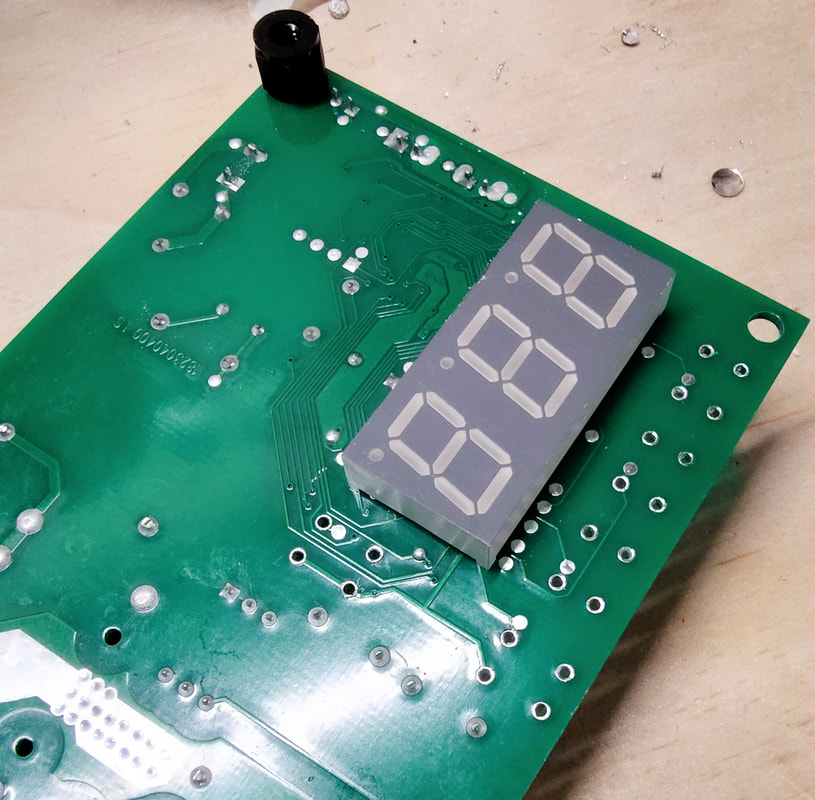

Examining the control PCB directly, the root cause became glaringly obvious: four of the five tactile push-buttons had broken completely out of their through-hole-mount housings and were missing entirely.
While replacing the switches seemed straightforward—assuming I could source matching components—I still couldn't confirm whether this was the sole failure or if the heavy impact had damaged other circuits or breached the refrigeration loop. Given the cracked insulation and unknown board status, I decided this was the right moment to negotiate with the seller. I reached out, explaining that the unit was non-functional but that I was willing to attempt a repair. I offered two paths: a full return, or a $300 partial refund to keep the unit as-is. Fortunately, my read on the seller was correct; he preferred the partial refund, which—despite the risk—aligned with my preferred outcome. We met the next morning and finished the deal. |
|
The next step was identifying the missing switches to source replacements. With no part numbers or identifying marks on the components, I grabbed my digital calipers and carefully recorded the critical physical dimensions. Next, I filtered Digikey’s tactile switch catalog and cross-referenced product images until I found a visual match from E-switch. I then compared every dimension against the manufacturer's datasheet to confirm compatibility. Score!

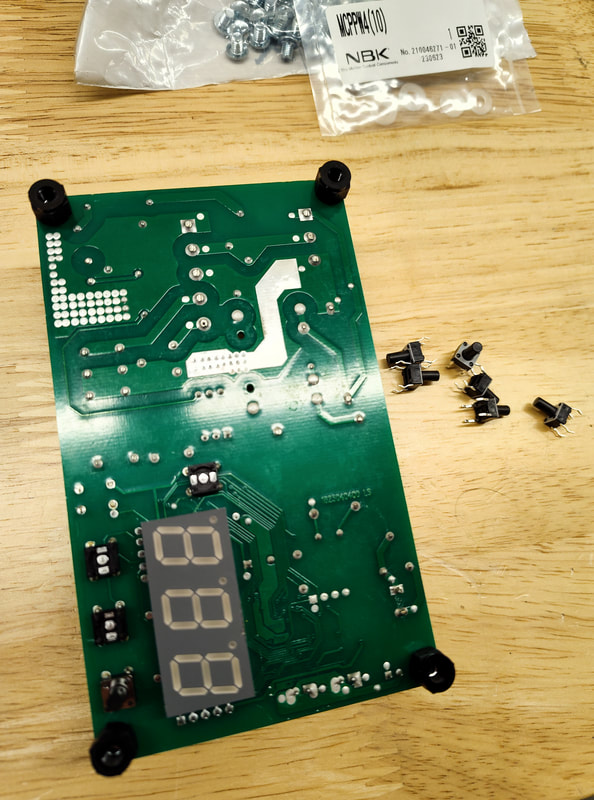

However, I still had to address the broken mounting standoffs. To solve this, I carefully peeled back the transparent plastic graphic overlay on the front panel to verify if fasteners could be inserted in from the outside. After measuring the standoff height needed to clear the PCB components, I bundled a set of matching plastic hex standoffs and washers into the parts order. |
|
With the replacement parts in hand, I began the desoldering process. To safely remove the remnants of the broken switches without lifting any traces, I clipped the pins with a pair of flush cutters. I then heated each remaining stub individually with the soldering iron and extracted them one by one. After clearing the pins, I cleaned and leveled the pads using desoldering braid (solder wick), leaving a clean set of open holes for the new switches.
|
|

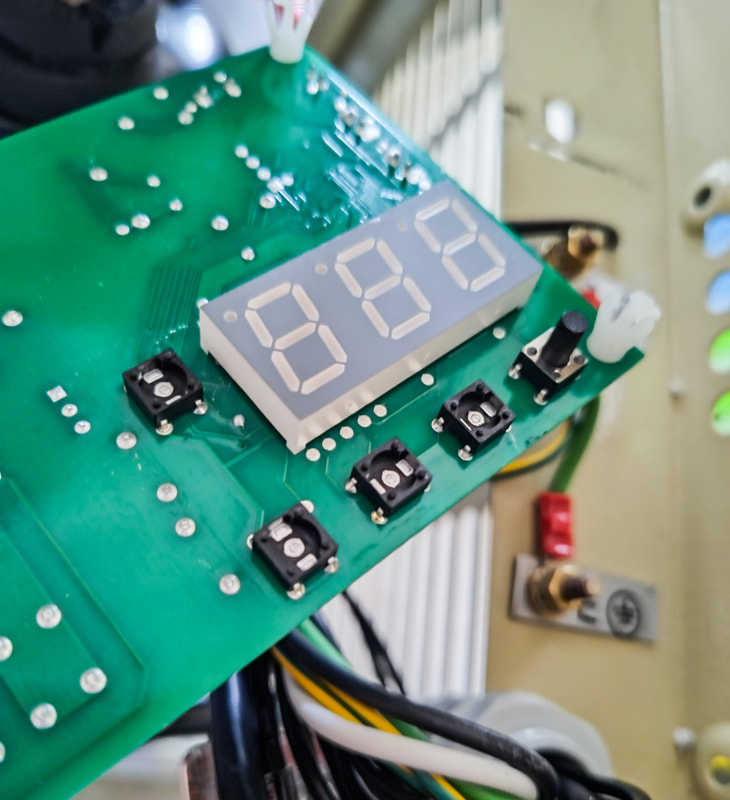

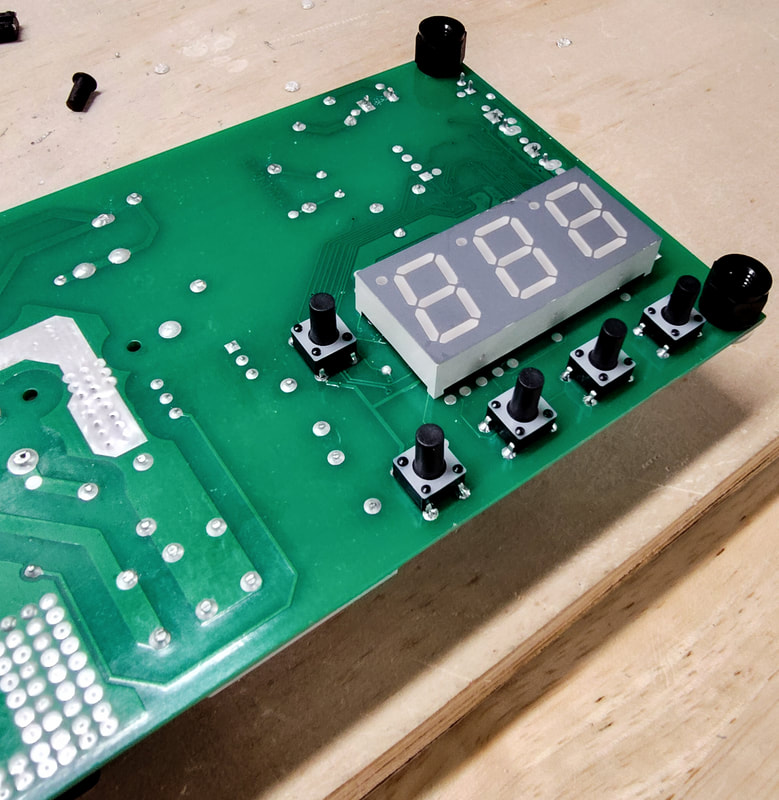

Once the through-holes were cleared, I dropped the first replacement switch into position. Using a flux pen, I applied a touch of no-clean flux to the underside of the board and joints to ensure optimal wetting, then soldered the switch into place using SAC305 lead-free solder. I repeated the process for the remaining switches, and finally cleaned up the residual flux with isopropyl alcohol (IPA). The final result looked indistinguishable from an OEM factory build.
|
|

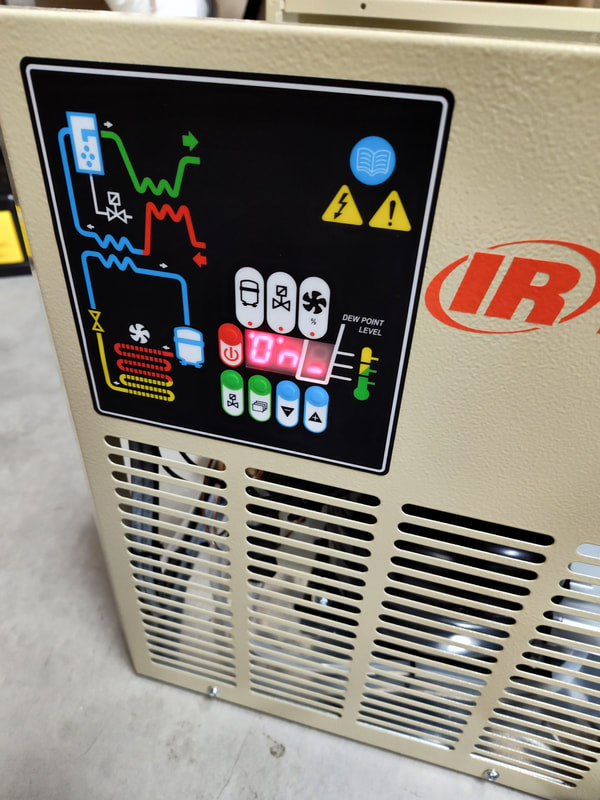

With the control board fully populated and bench work complete, I reconnected all internal wiring harnesses and chassis grounds, then plugged the dryer back into mains power for the moment of truth. I pressed the new power switch—and success! The status display lit up, clearly reading "ON." With the electrical functionality verified, I secured the board back onto the front panel using the standoffs.
|
|

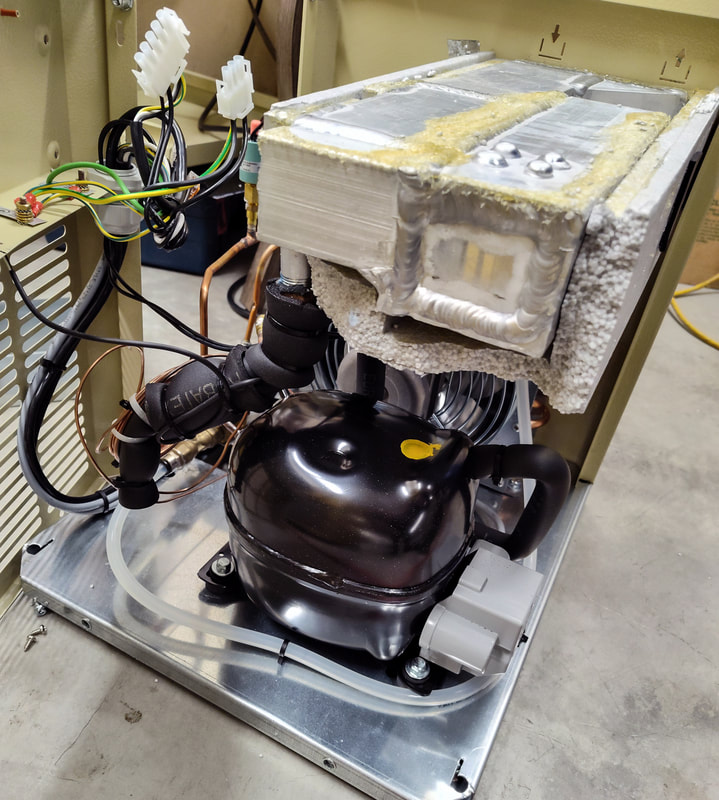

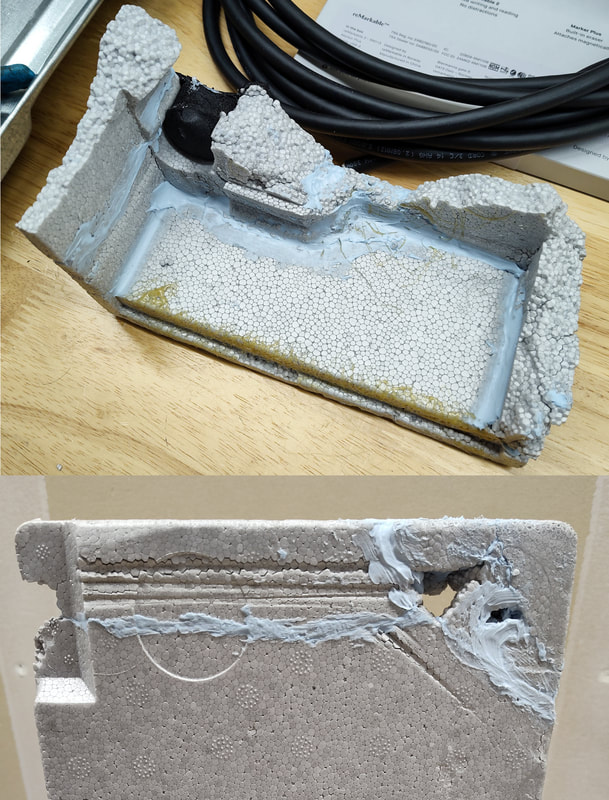

Next up was repairing the shattered heat exchanger insulation. The image to the left captures the starting point with the front cover removed, highlighting the extent of the damage. Reassembling the fractured styrofoam pieces felt like solving a complex 3D jigsaw puzzle. After researching compatible adhesives, I selected Loctite PL 300 foamboard adhesive and carefully bonded the fragments back together using a caulk gun.
|
|
The accompanying image highlights the successfully reassembled front piece and the repaired corner of the top cover—thankfully, most of the original fragments were recovered. Working with the foamboard adhesive presented a unique challenge: while it sets in 20 minutes, it requires a 48-hour bracing period and a full 7-day cure. To execute the repair, I reattached the front panel and clamped the front and rear panel assemblies together for two full days, sandwiching the insulation. In hindsight, I should have allowed an even longer cure time; the weight and pressure of the heat exchanger caused the adhesive to subtly stretch during curing, forcing me to re-apply and re-clamp a few stubborn spots.
|
|

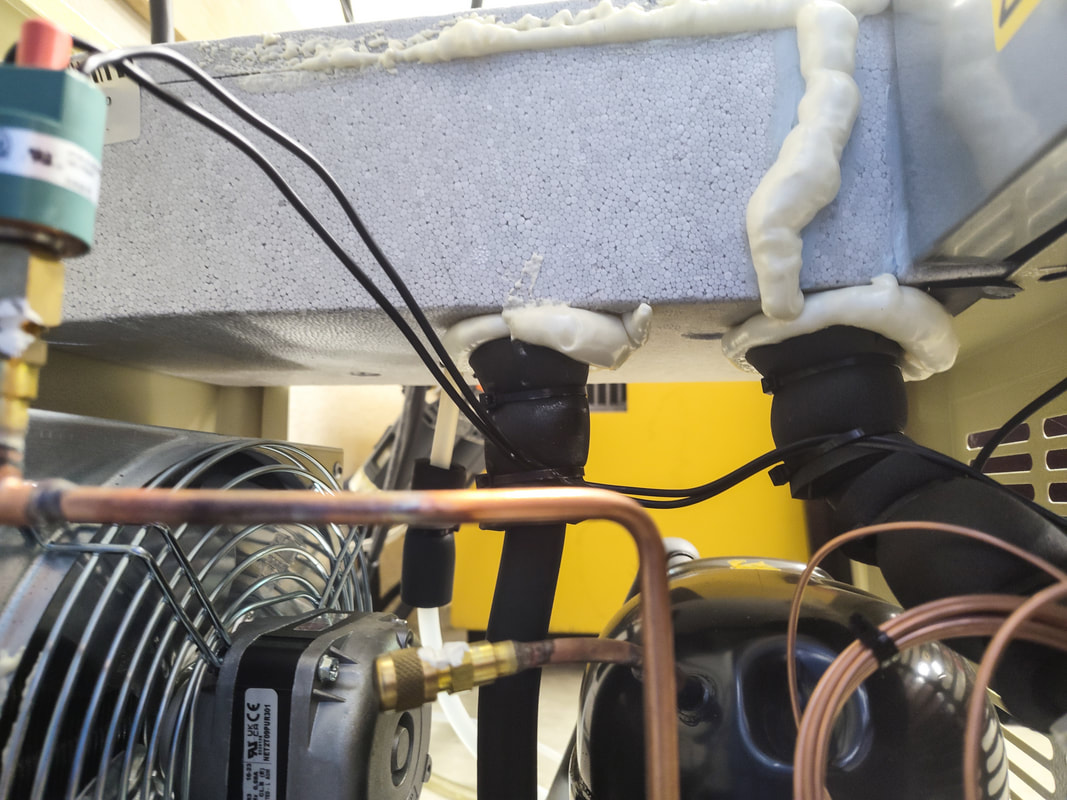

To finish the job and seal the remaining open joints, I applied an expanding spray foam insulation. Though less than glamorous in appearance, it ultimately proved functional—ensuring thermal isolation and keeping the dryer running smoothly without any low-dew-point error codes.
|
|

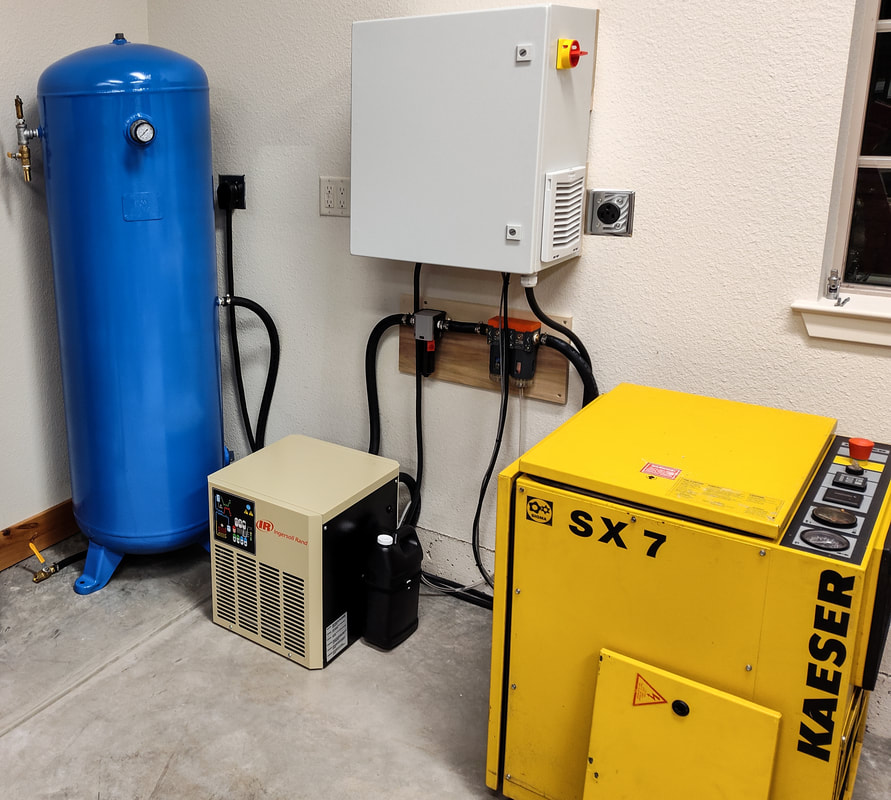

With the repairs complete, I reassembled the exterior panels and powered the unit on to run through its standard diagnostic cycle. The condenser fan spun up, and I verified every menu function, culminating in a successful solenoid valve test. Satisfied with the electronics, I threaded aluminum hose barbs into the heat exchanger ports—using aluminum to prevent galvanic corrosion and plenty of PTFE tape to avoid galling—and hooked up the air lines. I fired up the compressor and let the system run at operating temperature for roughly 45 minutes; it operated entirely error-free, pulling out moisture without a drop of water to be found in the tank.
While this project wasn’t a custom build, it was one of those deeply satisfying fixes that reminds you why it’s great to be an engineer. |
